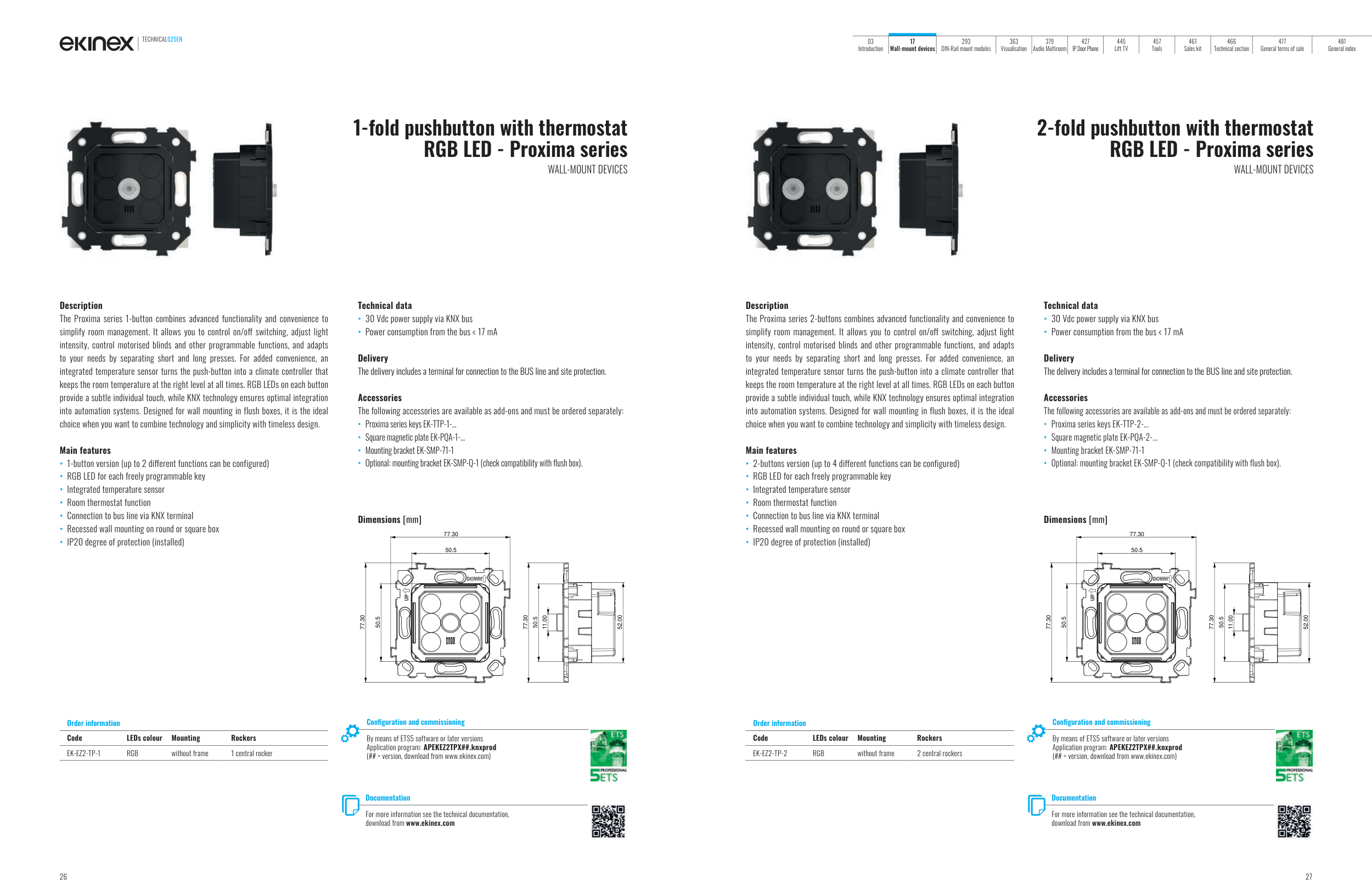

1-fold pushbutton with thermostat
RGB LED - Proxima series
WALL-MOUNT DEVICES
2-fold pushbutton with thermostat
RGB LED - Proxima series
WALL-MOUNT DEVICES
Description
The Proxima series 1-button combines advanced functionality and convenience to
simplify room management. It allows you to control on/off switching, adjust light
intensity, control motorised blinds and other programmable functions, and adapts
to your needs by separating short and long presses. For added convenience, an
integrated temperature sensor turns the push-button into a climate controller that
keeps the room temperature at the right level at all times. RGB LEDs on each button
provide a subtle individual touch, while KNX technology ensures optimal integration
into automation systems. Designed for wall mounting in flush boxes, it is the ideal
choice when you want to combine technology and simplicity with timeless design.
Main features
• 1-button version (up to 2 different functions can be configured)
• RGB LED for each freely programmable key
• Integrated temperature sensor
• Room thermostat function
• Connection to bus line via KNX terminal
• Recessed wall mounting on round or square box
• IP20 degree of protection (installed)
Technical data
• 30 Vdc power supply via KNX bus
• Power consumption from the bus < 17 mA
Delivery
The delivery includes a terminal for connection to the BUS line and site protection.
Accessories
The following accessories are available as add-ons and must be ordered separately:
• Proxima series keys EK-TTP-1-...
• Square magnetic plate EK-PQA-1-...
• Mounting bracket EK-SMP-71-1
• Optional: mounting bracket EK-SMP-Q-1 (check compatibility with flush box).
Description
The Proxima series 2-buttons combines advanced functionality and convenience to
simplify room management. It allows you to control on/off switching, adjust light
intensity, control motorised blinds and other programmable functions, and adapts
to your needs by separating short and long presses. For added convenience, an
integrated temperature sensor turns the push-button into a climate controller that
keeps the room temperature at the right level at all times. RGB LEDs on each button
provide a subtle individual touch, while KNX technology ensures optimal integration
into automation systems. Designed for wall mounting in flush boxes, it is the ideal
choice when you want to combine technology and simplicity with timeless design.
Main features
• 2-buttons version (up to 4 different functions can be configured)
• RGB LED for each freely programmable key
• Integrated temperature sensor
• Room thermostat function
• Connection to bus line via KNX terminal
• Recessed wall mounting on round or square box
• IP20 degree of protection (installed)
Technical data
• 30 Vdc power supply via KNX bus
• Power consumption from the bus < 17 mA
Delivery
The delivery includes a terminal for connection to the BUS line and site protection.
Accessories
The following accessories are available as add-ons and must be ordered separately:
• Proxima series keys EK-TTP-2-...
• Square magnetic plate EK-PQA-2-...
• Mounting bracket EK-SMP-71-1
• Optional: mounting bracket EK-SMP-Q-1 (check compatibility with flush box).
Order information
Code
LEDs colour
Mounting
Rockers
EK-EZ2-TP-1
RGB
without frame
1 central rocker
Order information
Code
LEDs colour
Mounting
Rockers
EK-EZ2-TP-2
RGB
without frame
2 central rockers
Confi guration and commissioning
By means of ETS5 software or later versions
Application program: APEKEZ2TPX##.knxprod
(## = version, download from www.ekinex.com)
Confi guration and commissioning
By means of ETS5 software or later versions
Application program: APEKEZ2TPX##.knxprod
(## = version, download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
11.00
52.00
50.5
77.30
50.5
77.30
77.30
50.5
Dimensions [mm]
11.00
52.00
50.5
77.30
50.5
77.30
77.30
50.5
