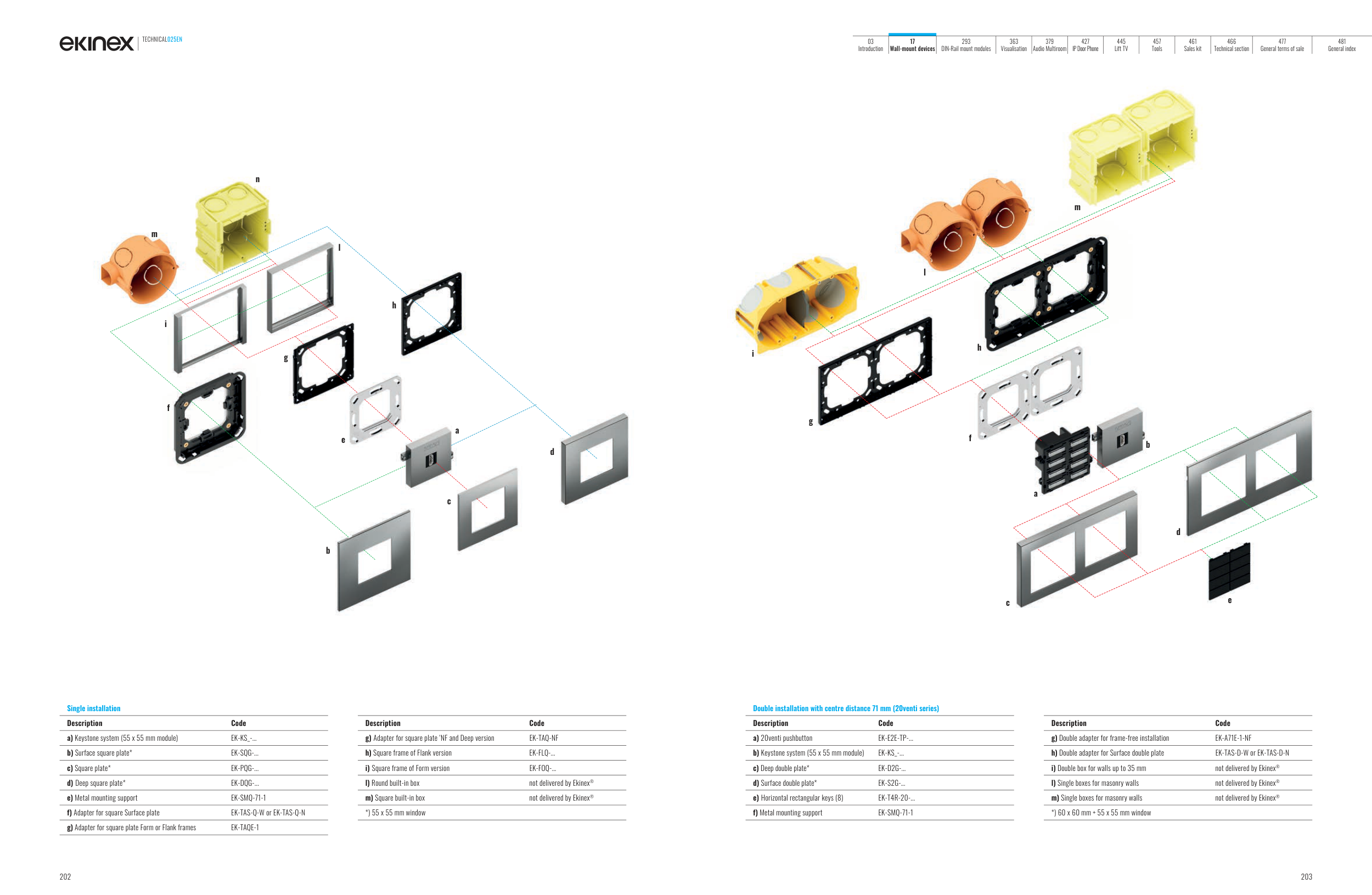

Double installation with centre distance 71 mm (20venti series)
Description
Code
a) 20venti pushbutton
EK-E2E-TP-...
b) Keystone system (55 x 55 mm module)
EK-KS_-...
c) Deep double plate*
EK-D2G-...
d) Surface double plate*
EK-S2G-...
e) Horizontal rectangular keys (8)
EK-T4R-20-...
f) Metal mounting support
EK-SMQ-71-1
Description
Code
g) Double adapter for frame-free installation
EK-A71E-1-NF
h) Double adapter for Surface double plate
EK-TAS-D-W or EK-TAS-D-N
i) Double box for walls up to 35 mm
not delivered by Ekinex®
l) Single boxes for masonry walls
not delivered by Ekinex®
m) Single boxes for masonry walls
not delivered by Ekinex®
*) 60 x 60 mm + 55 x 55 mm window
Single installation
Description
Code
a) Keystone system (55 x 55 mm module)
EK-KS_-...
b) Surface square plate*
EK-SQG-...
c) Square plate*
EK-PQG-...
d) Deep square plate*
EK-DQG-...
e) Metal mounting support
EK-SMQ-71-1
f) Adapter for square Surface plate
EK-TAS-Q-W or EK-TAS-Q-N
g) Adapter for square plate Form or Flank frames
EK-TAQE-1
Description
Code
g) Adapter for square plate ‘NF and Deep version
EK-TAQ-NF
h) Square frame of Flank version
EK-FLQ-...
i) Square frame of Form version
EK-FOQ-...
l) Round built-in box
not delivered by Ekinex®
m) Square built-in box
not delivered by Ekinex®
*) 55 x 55 mm window
