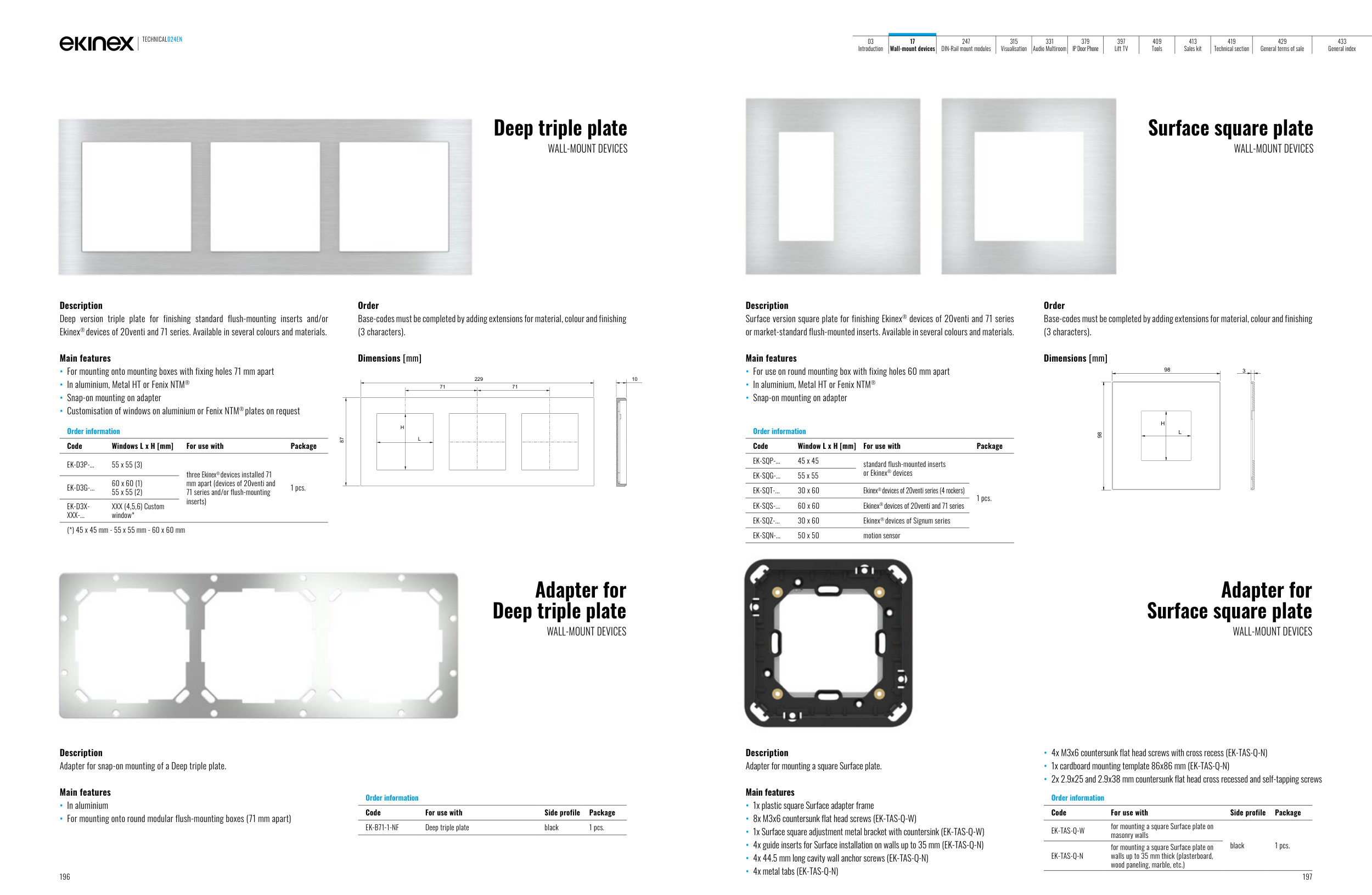

Deep triple plate
WALL-MOUNT DEVICES
Order information
Code
Windows L x H [mm]
For use with
Package
EK-D3P-...
55 x 55 (3)
three Ekinex® devices installed 71
mm apart (devices of 20venti and
71 series and/or flush-mounting
inserts)
1 pcs.
EK-D3G-...
60 x 60 (1)
55 x 55 (2)
EK-D3X-
XXX-...
XXX (4,5,6) Custom
window*
(*) 45 x 45 mm - 55 x 55 mm - 60 x 60 mm
Description
Deep version triple plate for finishing standard flush-mounting inserts and/or
Ekinex® devices of 20venti and 71 series. Available in several colours and materials.
Main features
• For mounting onto mounting boxes with fixing holes 71 mm apart
• In aluminium, Metal HT or Fenix NTM®
• Snap-on mounting on adapter
• Customisation of windows on aluminium or Fenix NTM® plates on request
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).
Adapter for
Deep triple plate
WALL-MOUNT DEVICES
Description
Adapter for snap-on mounting of a Deep triple plate.
Main features
• In aluminium
• For mounting onto round modular flush-mounting boxes (71 mm apart)
Order information
Code
For use with
Side profile
Package
EK-B71-1-NF
Deep triple plate
black
1 pcs.
Dimensions [mm]
10
229
87
H
L
71
71
Description
Surface version square plate for finishing Ekinex® devices of 20venti and 71 series
or market-standard flush-mounted inserts. Available in several colours and materials.
Main features
• For use on round mounting box with fixing holes 60 mm apart
• In aluminium, Metal HT or Fenix NTM®
• Snap-on mounting on adapter
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).
Surface square plate
WALL-MOUNT DEVICES
Dimensions [mm]
H
L
3
98
98
Order information
Code
Window L x H [mm]
For use with
Package
EK-SQP-...
45 x 45
standard flush-mounted inserts
or Ekinex® devices
1 pcs.
EK-SQG-...
55 x 55
EK-SQT-...
30 x 60
Ekinex® devices of 20venti series (4 rockers)
EK-SQS-...
60 x 60
Ekinex® devices of 20venti and 71 series
EK-SQZ-...
30 x 60
Ekinex® devices of Signum series
EK-SQN-...
50 x 50
motion sensor
Description
Adapter for mounting a square Surface plate.
Main features
• 1x plastic square Surface adapter frame
• 8x M3x6 countersunk flat head screws (EK-TAS-Q-W)
• 1x Surface square adjustment metal bracket with countersink (EK-TAS-Q-W)
• 4x guide inserts for Surface installation on walls up to 35 mm (EK-TAS-Q-N)
• 4x 44.5 mm long cavity wall anchor screws (EK-TAS-Q-N)
• 4x metal tabs (EK-TAS-Q-N)
Adapter for
Surface square plate
WALL-MOUNT DEVICES
Order information
Code
For use with
Side profile
Package
EK-TAS-Q-W
for mounting a square Surface plate on
masonry walls
black
1 pcs.
EK-TAS-Q-N
for mounting a square Surface plate on
walls up to 35 mm thick (plasterboard,
wood paneling, marble, etc.)
• 4x M3x6 countersunk flat head screws with cross recess (EK-TAS-Q-N)
• 1x cardboard mounting template 86x86 mm (EK-TAS-Q-N)
• 2x 2.9x25 and 2.9x38 mm countersunk flat head cross recessed and self-tapping screws
