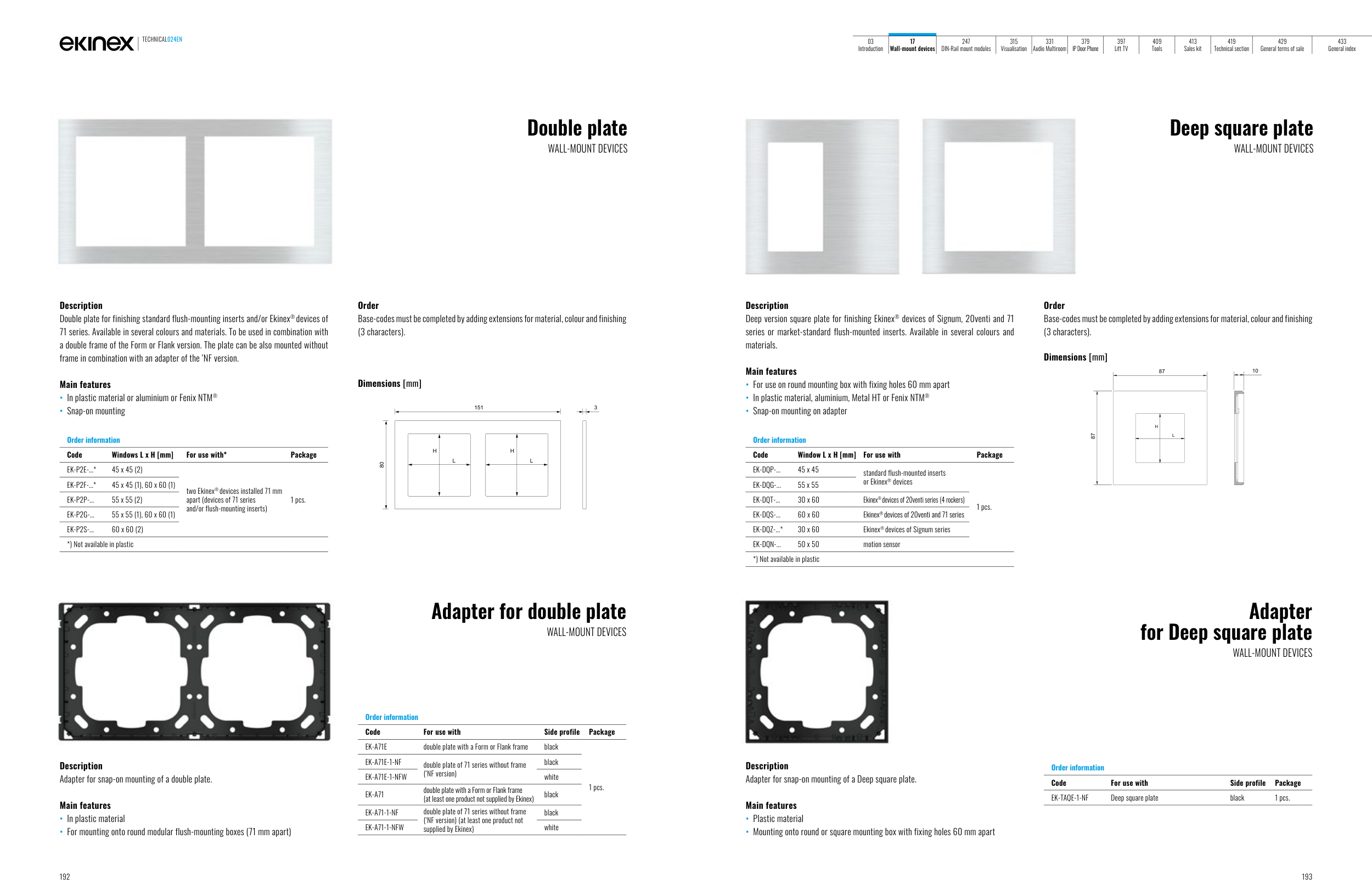

Double plate
WALL-MOUNT DEVICES
Order information
Code
Windows L x H [mm]
For use with*
Package
EK-P2E-...*
45 x 45 (2)
two Ekinex® devices installed 71 mm
apart (devices of 71 series
and/or flush-mounting inserts)
1 pcs.
EK-P2F-...*
45 x 45 (1), 60 x 60 (1)
EK-P2P-...
55 x 55 (2)
EK-P2G-...
55 x 55 (1), 60 x 60 (1)
EK-P2S-...
60 x 60 (2)
*) Not available in plastic
Description
Double plate for finishing standard flush-mounting inserts and/or Ekinex® devices of
71 series. Available in several colours and materials. To be used in combination with
a double frame of the Form or Flank version. The plate can be also mounted without
frame in combination with an adapter of the ‘NF version.
Main features
• In plastic material or aluminium or Fenix NTM®
• Snap-on mounting
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).
Adapter for double plate
WALL-MOUNT DEVICES
Description
Adapter for snap-on mounting of a double plate.
Main features
• In plastic material
• For mounting onto round modular flush-mounting boxes (71 mm apart)
Dimensions [mm]
151
80
3
L
H
L
H
Description
Deep version square plate for finishing Ekinex® devices of Signum, 20venti and 71
series or market-standard flush-mounted inserts. Available in several colours and
materials.
Main features
• For use on round mounting box with fixing holes 60 mm apart
• In plastic material, aluminium, Metal HT or Fenix NTM®
• Snap-on mounting on adapter
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).
Deep square plate
WALL-MOUNT DEVICES
Dimensions [mm]
10
87
87
H
L
Order information
Code
Window L x H [mm]
For use with
Package
EK-DQP-...
45 x 45
standard flush-mounted inserts
or Ekinex® devices
1 pcs.
EK-DQG-...
55 x 55
EK-DQT-...
30 x 60
Ekinex® devices of 20venti series (4 rockers)
EK-DQS-...
60 x 60
Ekinex® devices of 20venti and 71 series
EK-DQZ-...*
30 x 60
Ekinex® devices of Signum series
EK-DQN-...
50 x 50
motion sensor
*) Not available in plastic
Adapter
for Deep square plate
WALL-MOUNT DEVICES
Description
Adapter for snap-on mounting of a Deep square plate.
Main features
• Plastic material
• Mounting onto round or square mounting box with fixing holes 60 mm apart
Order information
Code
For use with
Side profile
Package
EK-TAQE-1-NF
Deep square plate
black
1 pcs.
Order information
Code
For use with
Side profile
Package
EK-A71E
double plate with a Form or Flank frame
black
1 pcs.
EK-A71E-1-NF
double plate of 71 series without frame
(‘NF version)
black
EK-A71E-1-NFW
white
EK-A71
double plate with a Form or Flank frame
(at least one product not supplied by Ekinex)
black
EK-A71-1-NF
double plate of 71 series without frame
(‘NF version) (at least one product not
supplied by Ekinex)
black
EK-A71-1-NFW
white
