Description
Rectangular plate for finishing market-standard flush-mounted inserts. Available
in several colours and materials. To be used in combination with a rectangular
frame of the Form or Flank version. The plate can be also mounted without frame in
combination with an adapter of the ‘NF version.
Main features
• In plastic material or aluminium or Fenix NTM®
• Snap-on mounting
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).

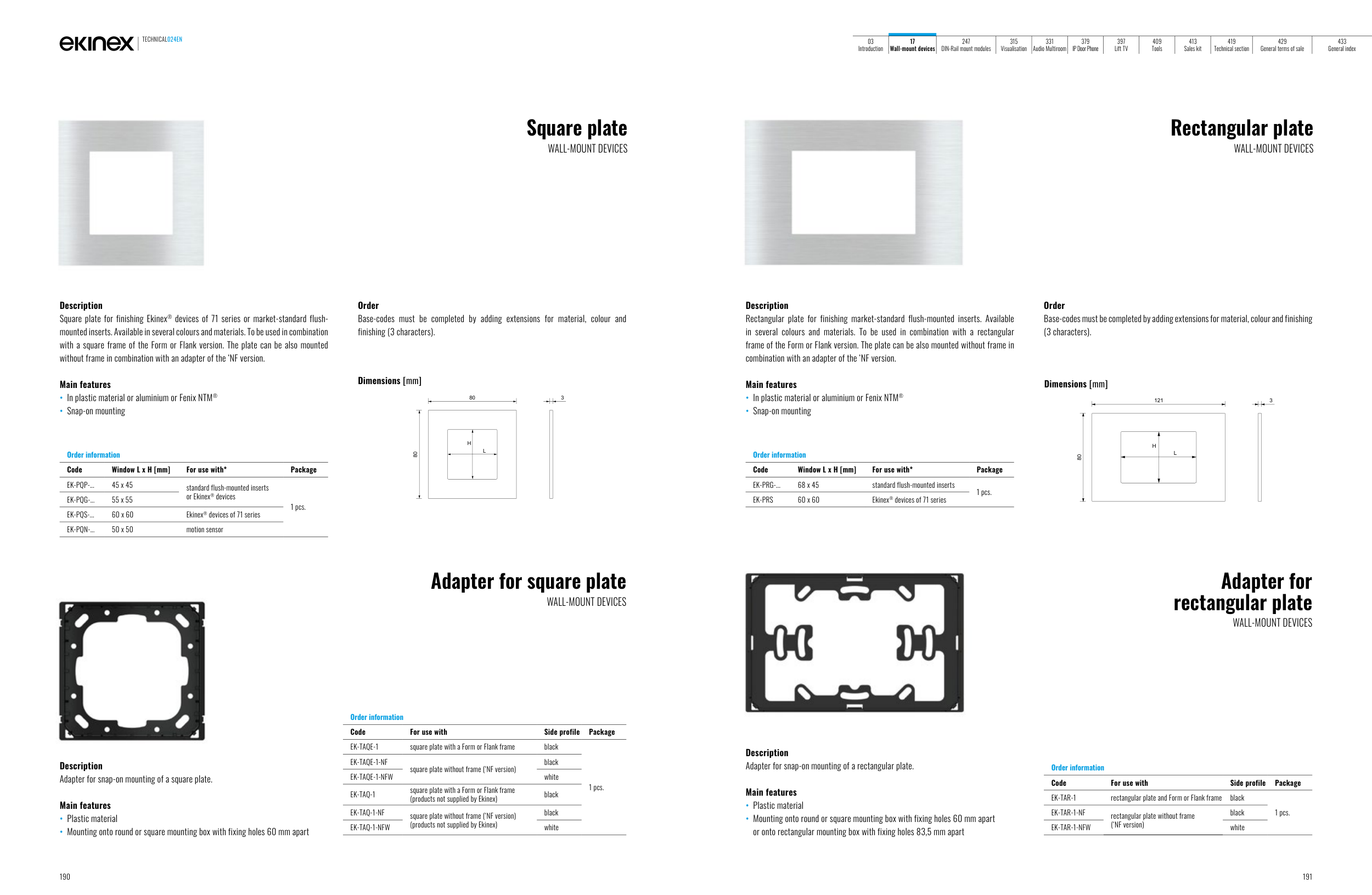

Description
Square plate for finishing Ekinex® devices of 71 series or market-standard flush-
mounted inserts. Available in several colours and materials. To be used in combination
with a square frame of the Form or Flank version. The plate can be also mounted
without frame in combination with an adapter of the ‘NF version.
Main features
• In plastic material or aluminium or Fenix NTM®
• Snap-on mounting
Order
Base-codes must be completed by adding extensions for material, colour and
finishing (3 characters).
Square plate
WALL-MOUNT DEVICES
Dimensions [mm]
3
80
80
L
H
Adapter for square plate
WALL-MOUNT DEVICES
Description
Adapter for snap-on mounting of a square plate.
Main features
• Plastic material
• Mounting onto round or square mounting box with fixing holes 60 mm apart
Adapter for
rectangular plate
WALL-MOUNT DEVICES
Description
Adapter for snap-on mounting of a rectangular plate.
Main features
• Plastic material
• Mounting onto round or square mounting box with fixing holes 60 mm apart
or onto rectangular mounting box with fixing holes 83,5 mm apart
Order information
Code
For use with
Side profile
Package
EK-TAR-1
rectangular plate and Form or Flank frame
black
1 pcs.
EK-TAR-1-NF
rectangular plate without frame
(‘NF version)
black
EK-TAR-1-NFW
white
Rectangular plate
WALL-MOUNT DEVICES
Dimensions [mm]
121
80
3
H
L
Order information
Code
For use with
Side profile
Package
EK-TAQE-1
square plate with a Form or Flank frame
black
1 pcs.
EK-TAQE-1-NF
square plate without frame (‘NF version)
black
EK-TAQE-1-NFW
white
EK-TAQ-1
square plate with a Form or Flank frame
(products not supplied by Ekinex)
black
EK-TAQ-1-NF
square plate without frame (‘NF version)
(products not supplied by Ekinex)
black
EK-TAQ-1-NFW
white
Order information
Code
Window L x H [mm]
For use with*
Package
EK-PQP-...
45 x 45
standard flush-mounted inserts
or Ekinex® devices
1 pcs.
EK-PQG-...
55 x 55
EK-PQS-...
60 x 60
Ekinex® devices of 71 series
EK-PQN-...
50 x 50
motion sensor
Order information
Code
Window L x H [mm]
For use with*
Package
EK-PRG-...
68 x 45
standard flush-mounted inserts
1 pcs.
EK-PRS
60 x 60
Ekinex® devices of 71 series
