Description
Square frame of Flank version for finishing Ekinex® devices of FF and 71 series.
Available in several colours and materials.
Main features
• In plastic material or aluminium
• Snap-on mounting
Order
Base-codes (EK-FLQ) must be completed by adding extensions for material,
colour and finishing (3 characters).

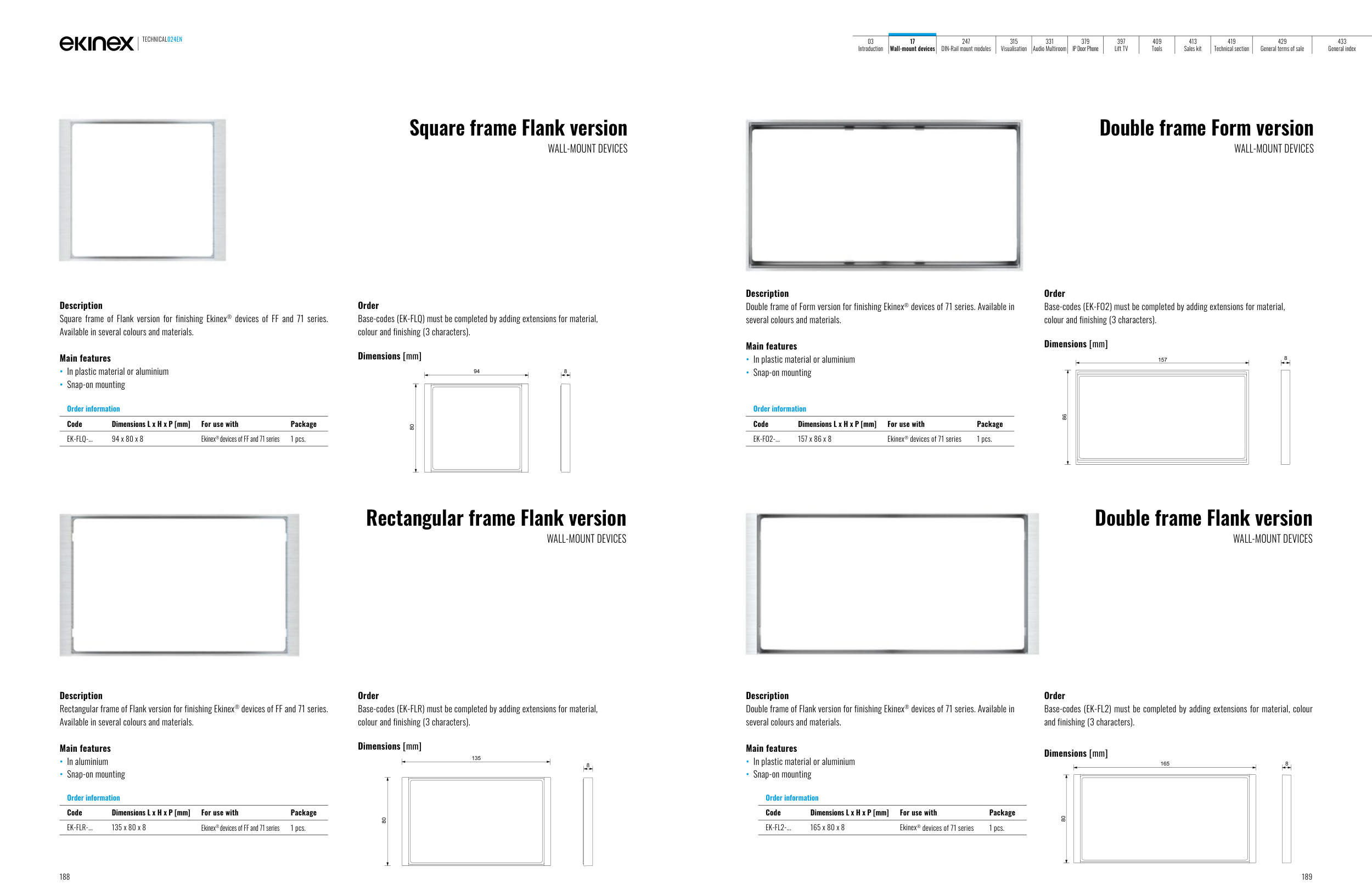

Square frame Flank version
WALL-MOUNT DEVICES
Rectangular frame Flank version
WALL-MOUNT DEVICES
Description
Rectangular frame of Flank version for finishing Ekinex® devices of FF and 71 series.
Available in several colours and materials.
Main features
• In aluminium
• Snap-on mounting
Order
Base-codes (EK-FLR) must be completed by adding extensions for material,
colour and finishing (3 characters).
Dimensions [mm]
94
80
8
Dimensions [mm]
8
80
135
Description
Double frame of Form version for finishing Ekinex® devices of 71 series. Available in
several colours and materials.
Main features
• In plastic material or aluminium
• Snap-on mounting
Order
Base-codes (EK-FO2) must be completed by adding extensions for material,
colour and finishing (3 characters).
Double frame Form version
WALL-MOUNT DEVICES
Double frame Flank version
WALL-MOUNT DEVICES
Description
Double frame of Flank version for finishing Ekinex® devices of 71 series. Available in
several colours and materials.
Main features
• In plastic material or aluminium
• Snap-on mounting
Order
Base-codes (EK-FL2) must be completed by adding extensions for material, colour
and finishing (3 characters).
Dimensions [mm]
157
86
8
Dimensions [mm]
165
8
80
Order information
Code
Dimensions L x H x P [mm]
For use with
Package
EK-FLQ-...
94 x 80 x 8
Ekinex® devices of FF and 71 series
1 pcs.
Order information
Code
Dimensions L x H x P [mm]
For use with
Package
EK-FLR-...
135 x 80 x 8
Ekinex® devices of FF and 71 series
1 pcs.
Order information
Code
Dimensions L x H x P [mm]
For use with
Package
EK-FO2-...
157 x 86 x 8
Ekinex® devices of 71 series
1 pcs.
Order information
Code
Dimensions L x H x P [mm]
For use with
Package
EK-FL2-...
165 x 80 x 8
Ekinex® devices of 71 series
1 pcs.
