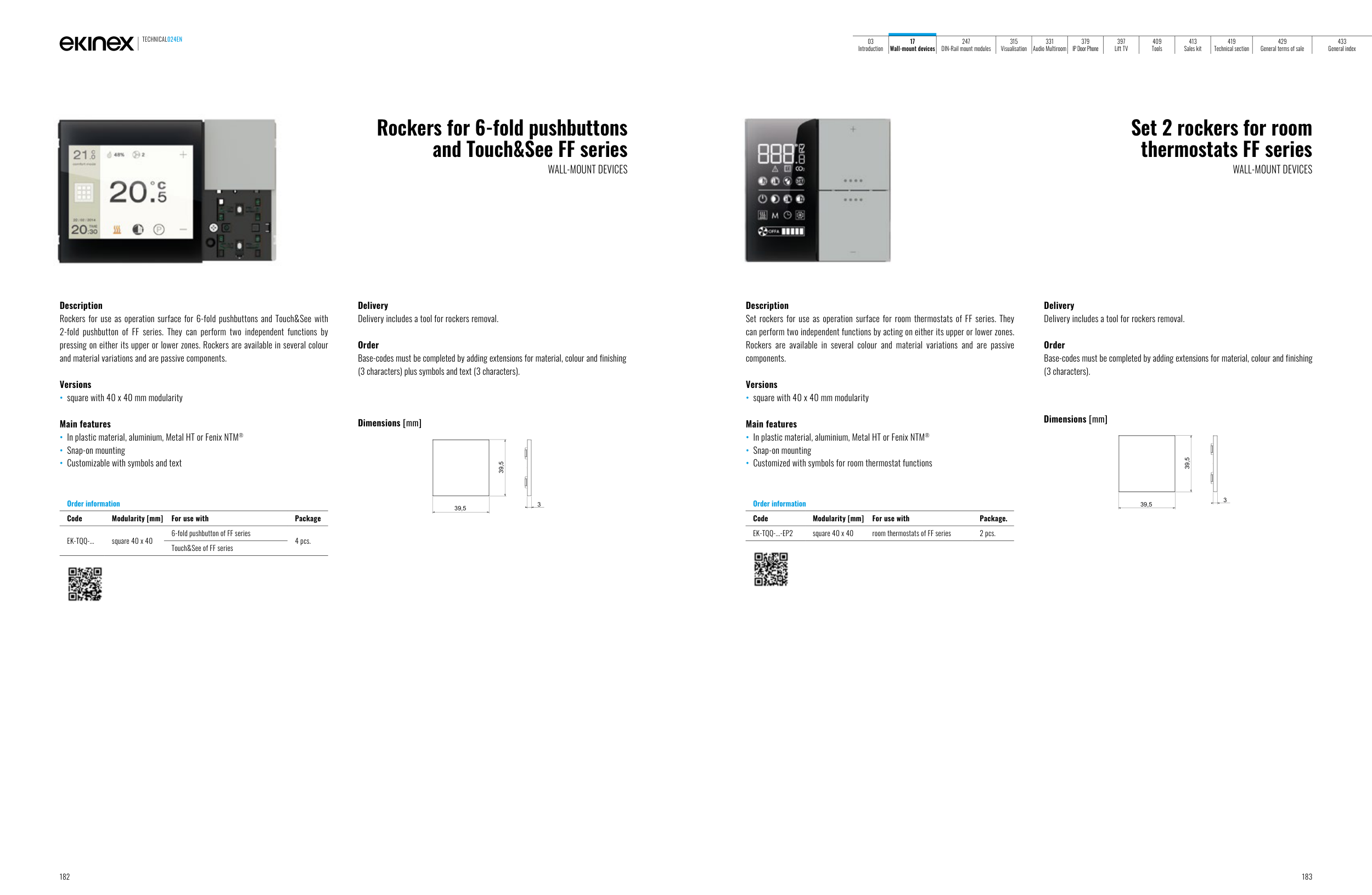

Rockers for 6-fold pushbuttons
and Touch&See FF series
WALL-MOUNT DEVICES
Description
Rockers for use as operation surface for 6-fold pushbuttons and Touch&See with
2-fold pushbutton of FF series. They can perform two independent functions by
pressing on either its upper or lower zones. Rockers are available in several colour
and material variations and are passive components.
Versions
• square with 40 x 40 mm modularity
Main features
• In plastic material, aluminium, Metal HT or Fenix NTM®
• Snap-on mounting
• Customizable with symbols and text
Delivery
Delivery includes a tool for rockers removal.
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters) plus symbols and text (3 characters).
Dimensions [mm]
3
39,5
39,5
Description
Set rockers for use as operation surface for room thermostats of FF series. They
can perform two independent functions by acting on either its upper or lower zones.
Rockers are available in several colour and material variations and are passive
components.
Versions
• square with 40 x 40 mm modularity
Main features
• In plastic material, aluminium, Metal HT or Fenix NTM®
• Snap-on mounting
• Customized with symbols for room thermostat functions
Delivery
Delivery includes a tool for rockers removal.
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).
Set 2 rockers for room
thermostats FF series
WALL-MOUNT DEVICES
Dimensions [mm]
3
39,5
39,5
Order information
Code
Modularity [mm]
For use with
Package
EK-TQQ-...
square 40 x 40
6-fold pushbutton of FF series
4 pcs.
Touch&See of FF series
Order information
Code
Modularity [mm]
For use with
Package.
EK-TQQ-...-EP2
square 40 x 40
room thermostats of FF series
2 pcs.
