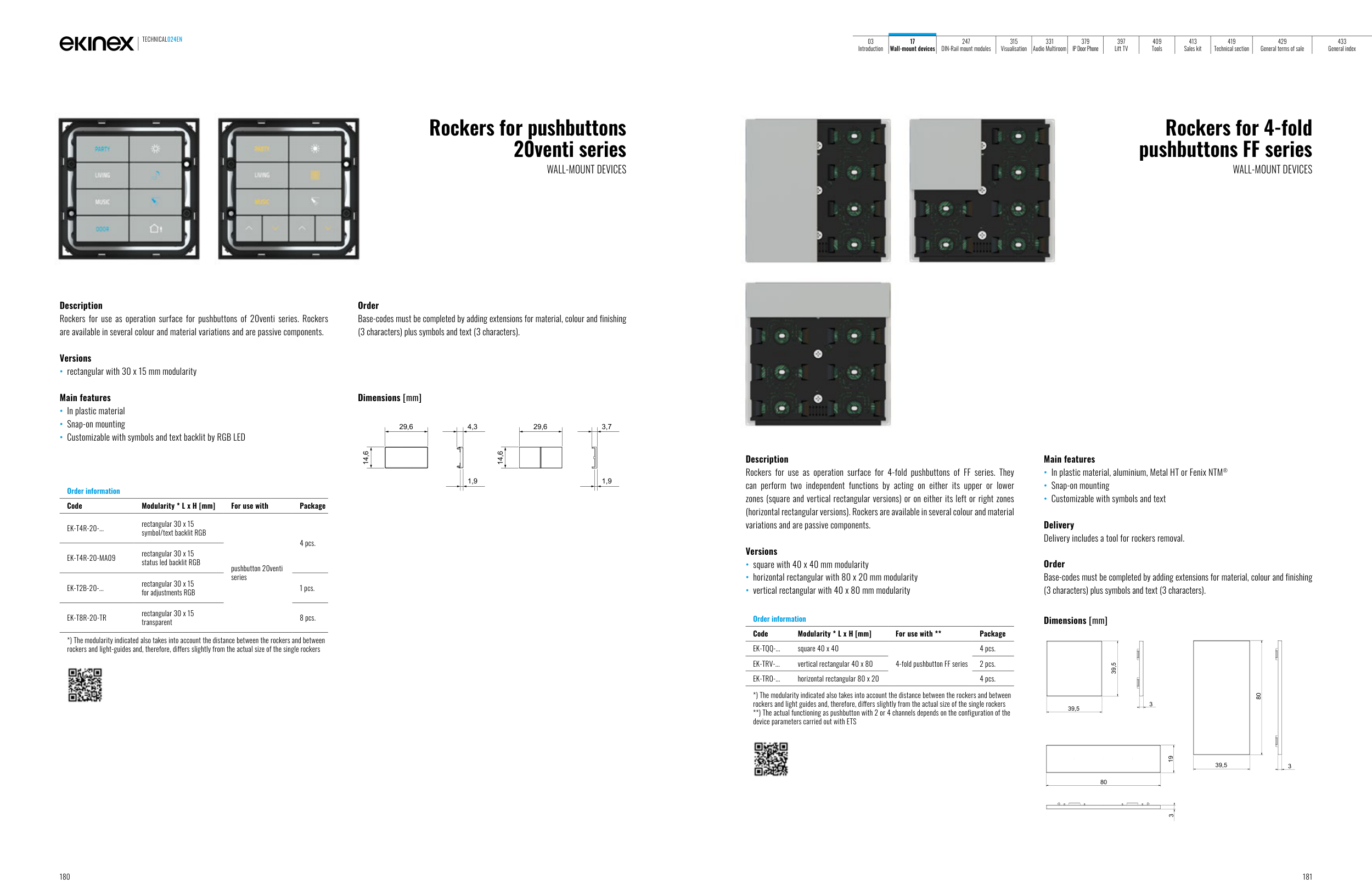

Description
Rockers for use as operation surface for pushbuttons of 20venti series. Rockers
are available in several colour and material variations and are passive components.
Versions
• rectangular with 30 x 15 mm modularity
Main features
• In plastic material
• Snap-on mounting
• Customizable with symbols and text backlit by RGB LED
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters) plus symbols and text (3 characters).
Rockers for pushbuttons
20venti series
WALL-MOUNT DEVICES
Description
Rockers for use as operation surface for 4-fold pushbuttons of FF series. They
can perform two independent functions by acting on either its upper or lower
zones (square and vertical rectangular versions) or on either its left or right zones
(horizontal rectangular versions). Rockers are available in several colour and material
variations and are passive components.
Versions
• square with 40 x 40 mm modularity
• horizontal rectangular with 80 x 20 mm modularity
• vertical rectangular with 40 x 80 mm modularity
Main features
• In plastic material, aluminium, Metal HT or Fenix NTM®
• Snap-on mounting
• Customizable with symbols and text
Delivery
Delivery includes a tool for rockers removal.
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters) plus symbols and text (3 characters).
Rockers for 4-fold
pushbuttons FF series
WALL-MOUNT DEVICES
Dimensions [mm]
14,6
29,6
4,3
1,9
14,6
29,6
3,7
1,9
Order information
Code
Modularity * L x H [mm]
For use with
Package
EK-T4R-20-...
rectangular 30 x 15
symbol/text backlit RGB
pushbutton 20venti
series
4 pcs.
EK-T4R-20-MA09
rectangular 30 x 15
status led backlit RGB
EK-T2B-20-...
rectangular 30 x 15
for adjustments RGB
1 pcs.
EK-T8R-20-TR
rectangular 30 x 15
transparent
8 pcs.
*) The modularity indicated also takes into account the distance between the rockers and between
rockers and light-guides and, therefore, differs slightly from the actual size of the single rockers
Dimensions [mm]
3
39,5
39,5
3
39,5
80
80
19
3
Order information
Code
Modularity * L x H [mm]
For use with **
Package
EK-TQQ-...
square 40 x 40
4-fold pushbutton FF series
4 pcs.
EK-TRV-...
vertical rectangular 40 x 80
2 pcs.
EK-TRO-...
horizontal rectangular 80 x 20
4 pcs.
*) The modularity indicated also takes into account the distance between the rockers and between
rockers and light guides and, therefore, differs slightly from the actual size of the single rockers
**) The actual functioning as pushbutton with 2 or 4 channels depends on the configuration of the
device parameters carried out with ETS
