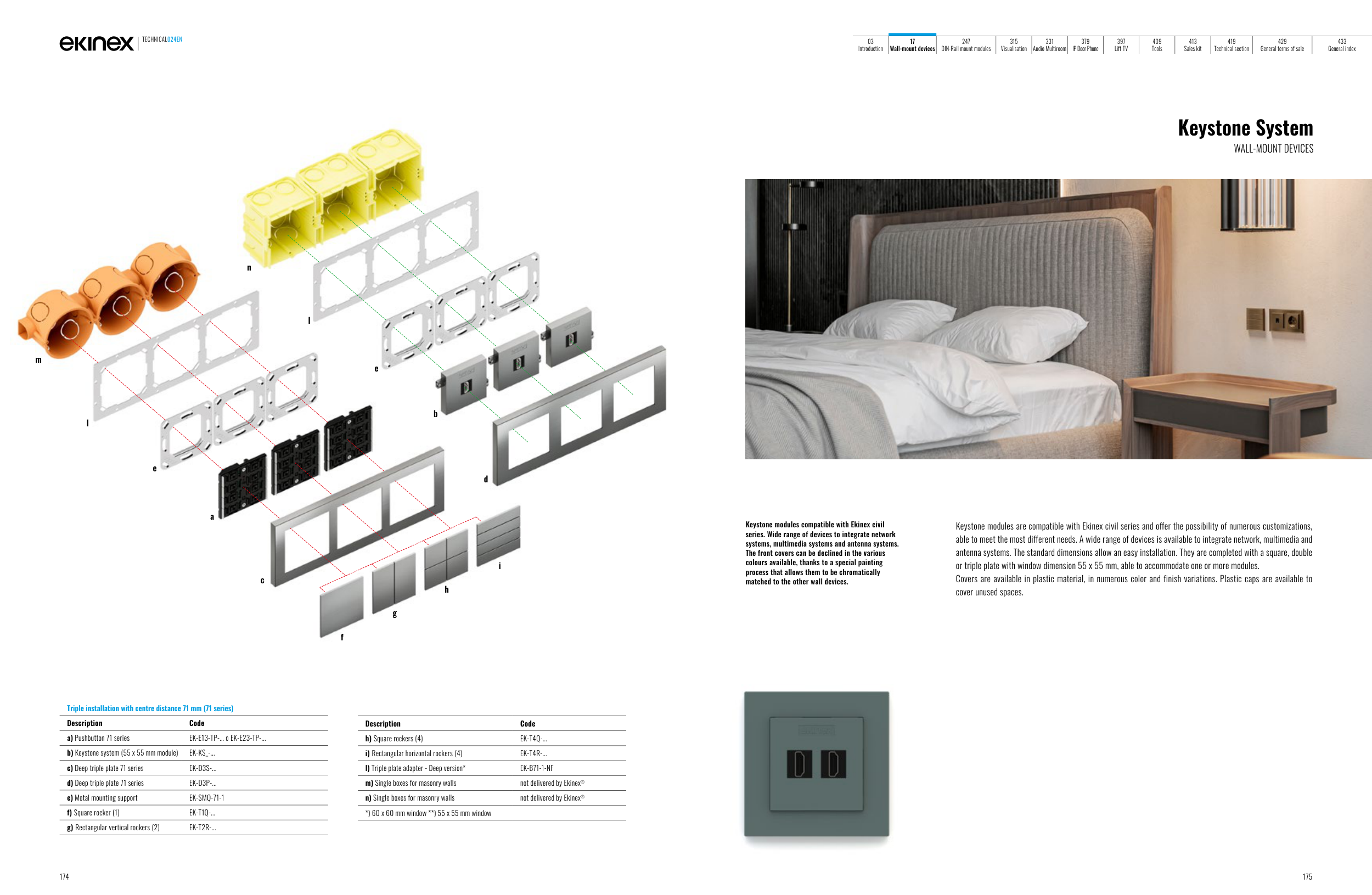

Triple installation with centre distance 71 mm (71 series)
Description
Code
a) Pushbutton 71 series
EK-E13-TP-... o EK-E23-TP-...
b) Keystone system (55 x 55 mm module)
EK-KS_-...
c) Deep triple plate 71 series
EK-D3S-...
d) Deep triple plate 71 series
EK-D3P-...
e) Metal mounting support
EK-SMQ-71-1
f) Square rocker (1)
EK-T1Q-...
g) Rectangular vertical rockers (2)
EK-T2R-...
a
c
d
g
f
i
h
e
l
l
m
n
Keystone System
WALL-MOUNT DEVICES
Keystone modules are compatible with Ekinex civil series and offer the possibility of numerous customizations,
able to meet the most different needs. A wide range of devices is available to integrate network, multimedia and
antenna systems. The standard dimensions allow an easy installation. They are completed with a square, double
or triple plate with window dimension 55 x 55 mm, able to accommodate one or more modules.
Covers are available in plastic material, in numerous color and finish variations. Plastic caps are available to
cover unused spaces.
Keystone modules compatible with Ekinex civil
series. Wide range of devices to integrate network
systems, multimedia systems and antenna systems.
The front covers can be declined in the various
colours available, thanks to a special painting
process that allows them to be chromatically
matched to the other wall devices.
Description
Code
h) Square rockers (4)
EK-T4Q-...
i) Rectangular horizontal rockers (4)
EK-T4R-...
l) Triple plate adapter - Deep version*
EK-B71-1-NF
m) Single boxes for masonry walls
not delivered by Ekinex®
n) Single boxes for masonry walls
not delivered by Ekinex®
*) 60 x 60 mm window **) 55 x 55 mm window
