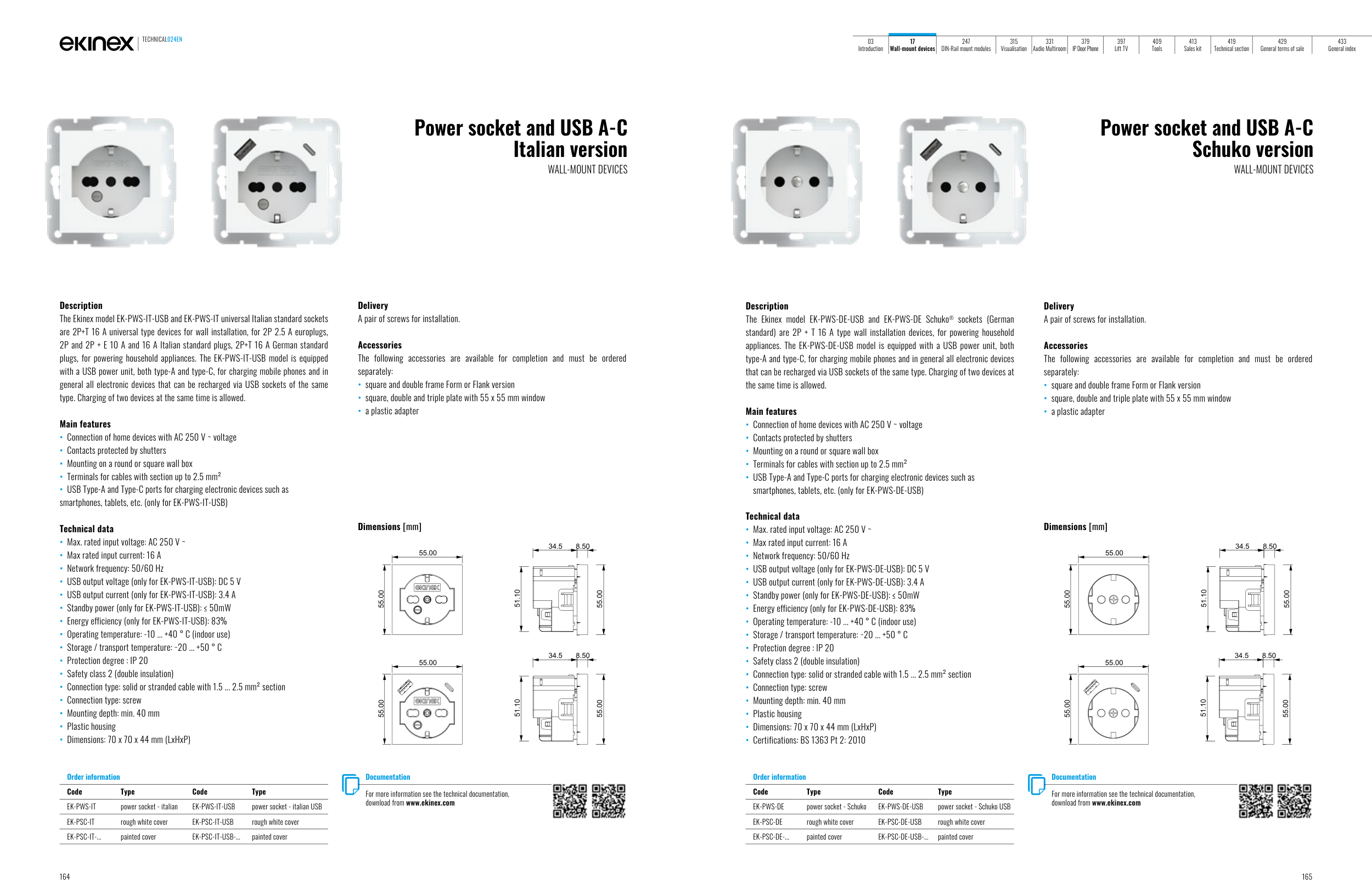

Power socket and USB A-C
Italian version
WALL-MOUNT DEVICES
Description
The Ekinex model EK-PWS-IT-USB and EK-PWS-IT universal Italian standard sockets
are 2P+T 16 A universal type devices for wall installation, for 2P 2.5 A europlugs,
2P and 2P + E 10 A and 16 A Italian standard plugs, 2P+T 16 A German standard
plugs, for powering household appliances. The EK-PWS-IT-USB model is equipped
with a USB power unit, both type-A and type-C, for charging mobile phones and in
general all electronic devices that can be recharged via USB sockets of the same
type. Charging of two devices at the same time is allowed.
Main features
• Connection of home devices with AC 250 V ~ voltage
• Contacts protected by shutters
• Mounting on a round or square wall box
• Terminals for cables with section up to 2.5 mm²
• USB Type-A and Type-C ports for charging electronic devices such as
smartphones, tablets, etc. (only for EK-PWS-IT-USB)
Technical data
• Max. rated input voltage: AC 250 V ~
• Max rated input current: 16 A
• Network frequency: 50/60 Hz
• USB output voltage (only for EK-PWS-IT-USB): DC 5 V
• USB output current (only for EK-PWS-IT-USB): 3.4 A
• Standby power (only for EK-PWS-IT-USB): ≤ 50mW
• Energy efficiency (only for EK-PWS-IT-USB): 83%
• Operating temperature: -10 ... +40 ° C (indoor use)
• Storage / transport temperature: −20 ... +50 ° C
• Protection degree : IP 20
• Safety class 2 (double insulation)
• Connection type: solid or stranded cable with 1.5 ... 2.5 mm² section
• Connection type: screw
• Mounting depth: min. 40 mm
• Plastic housing
• Dimensions: 70 x 70 x 44 mm (LxHxP)
Delivery
A pair of screws for installation.
Accessories
The following accessories are available for completion and must be ordered
separately:
• square and double frame Form or Flank version
• square, double and triple plate with 55 x 55 mm window
• a plastic adapter
Order information
Code
Type
Code
Type
EK-PWS-IT
power socket - italian
EK-PWS-IT-USB
power socket - italian USB
EK-PSC-IT
rough white cover
EK-PSC-IT-USB
rough white cover
EK-PSC-IT-...
painted cover
EK-PSC-IT-USB-...
painted cover
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
8.50
55.00
55.00
55.00
34.5
51.10
8.50
55.00
55.00
55.00
34.5
51.10
TECHNICAL024EN
164
165
03
Introduction
17
Wall-mount devices
247
DIN-Rail mount modules
315
Visualisation
331
Audio Multiroom
379
IP Door Phone
397
Lift TV
409
Tools
413
Sales kit
419
Technical section
429
General terms of sale
433
General index
Power socket and USB A-C
Schuko version
WALL-MOUNT DEVICES
Description
The Ekinex model EK-PWS-DE-USB and EK-PWS-DE Schuko® sockets (German
standard) are 2P + T 16 A type wall installation devices, for powering household
appliances. The EK-PWS-DE-USB model is equipped with a USB power unit, both
type-A and type-C, for charging mobile phones and in general all electronic devices
that can be recharged via USB sockets of the same type. Charging of two devices at
the same time is allowed.
Main features
• Connection of home devices with AC 250 V ~ voltage
• Contacts protected by shutters
• Mounting on a round or square wall box
• Terminals for cables with section up to 2.5 mm²
• USB Type-A and Type-C ports for charging electronic devices such as
smartphones, tablets, etc. (only for EK-PWS-DE-USB)
Technical data
• Max. rated input voltage: AC 250 V ~
• Max rated input current: 16 A
• Network frequency: 50/60 Hz
• USB output voltage (only for EK-PWS-DE-USB): DC 5 V
• USB output current (only for EK-PWS-DE-USB): 3.4 A
• Standby power (only for EK-PWS-DE-USB): ≤ 50mW
• Energy efficiency (only for EK-PWS-DE-USB): 83%
• Operating temperature: -10 ... +40 ° C (indoor use)
• Storage / transport temperature: −20 ... +50 ° C
• Protection degree : IP 20
• Safety class 2 (double insulation)
• Connection type: solid or stranded cable with 1.5 ... 2.5 mm² section
• Connection type: screw
• Mounting depth: min. 40 mm
• Plastic housing
• Dimensions: 70 x 70 x 44 mm (LxHxP)
• Certifications: BS 1363 Pt 2: 2010
Delivery
A pair of screws for installation.
Accessories
The following accessories are available for completion and must be ordered
separately:
• square and double frame Form or Flank version
• square, double and triple plate with 55 x 55 mm window
• a plastic adapter
Order information
Code
Type
Code
Type
EK-PWS-DE
power socket - Schuko
EK-PWS-DE-USB
power socket - Schuko USB
EK-PSC-DE
rough white cover
EK-PSC-DE-USB
rough white cover
EK-PSC-DE-...
painted cover
EK-PSC-DE-USB-...
painted cover
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
8.50
55.00
55.00
55.00
34.5
51.10
8.50
55.00
55.00
55.00
34.5
51.10
