Description
Code
c) Deep triple plate*
EK-D3S-...
d) Deep triple plate**
EK-D3P-...
e) Metal mounting support
EK-SMQ-71-1
f) Horizontal rectangular keys (8)
EK-T4R-20-...
g) Triple plate adapter - Deep version
EK-B71-1-NF
h) Single boxes for masonry walls
not delivered by Ekinex®
*) 60 x 60 mm window **) 55 x 55 mm window

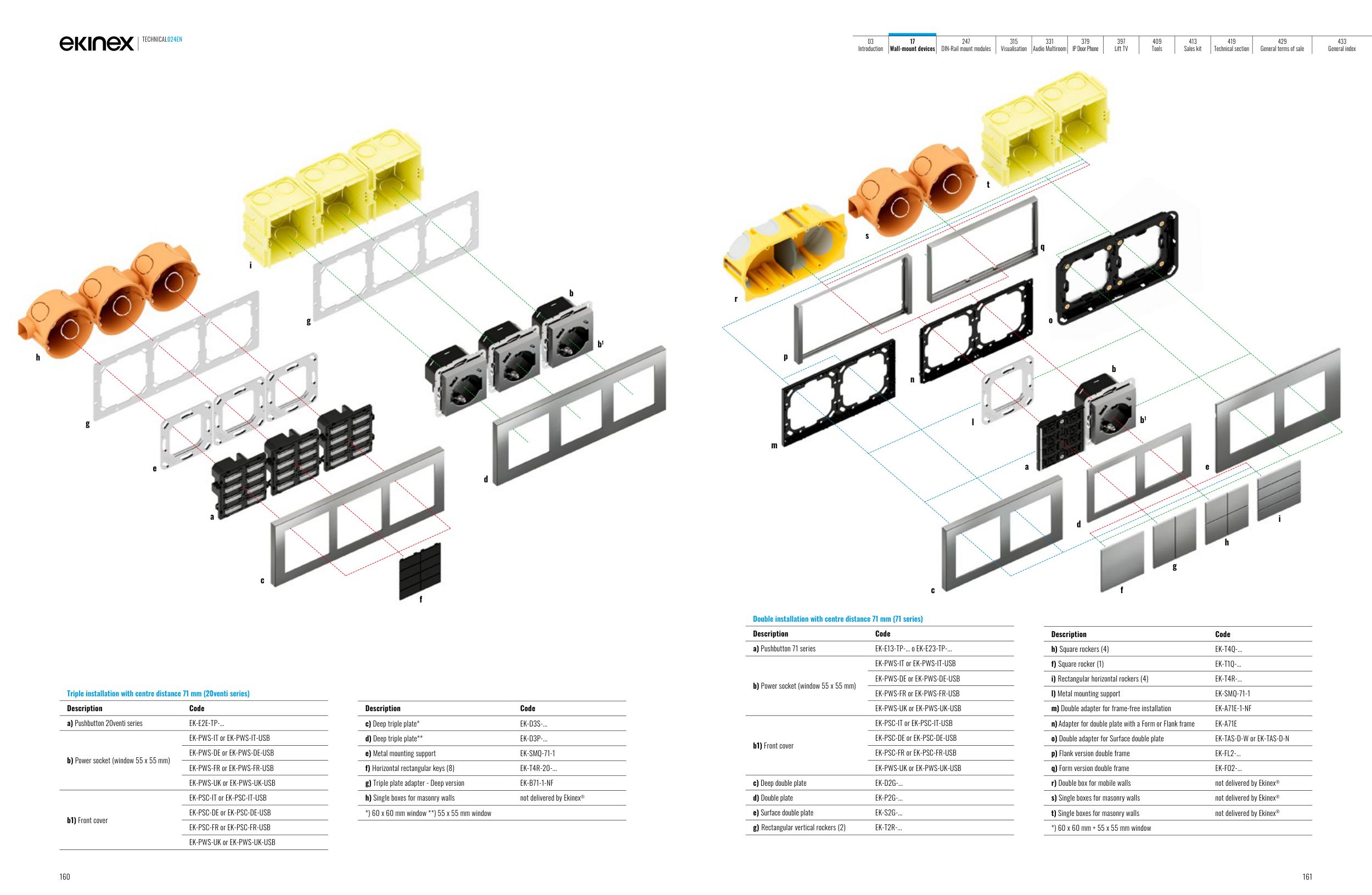

Triple installation with centre distance 71 mm (20venti series)
Description
Code
a) Pushbutton 20venti series
EK-E2E-TP-...
b) Power socket (window 55 x 55 mm)
EK-PWS-IT or EK-PWS-IT-USB
EK-PWS-DE or EK-PWS-DE-USB
EK-PWS-FR or EK-PWS-FR-USB
EK-PWS-UK or EK-PWS-UK-USB
b1) Front cover
EK-PSC-IT or EK-PSC-IT-USB
EK-PSC-DE or EK-PSC-DE-USB
EK-PSC-FR or EK-PSC-FR-USB
EK-PWS-UK or EK-PWS-UK-USB
Description
Code
h) Square rockers (4)
EK-T4Q-...
f) Square rocker (1)
EK-T1Q-...
i) Rectangular horizontal rockers (4)
EK-T4R-...
l) Metal mounting support
EK-SMQ-71-1
m) Double adapter for frame-free installation
EK-A71E-1-NF
n) Adapter for double plate with a Form or Flank frame
EK-A71E
o) Double adapter for Surface double plate
EK-TAS-D-W or EK-TAS-D-N
p) Flank version double frame
EK-FL2-...
q) Form version double frame
EK-FO2-...
r) Double box for mobile walls
not delivered by Ekinex®
s) Single boxes for masonry walls
not delivered by Ekinex®
t) Single boxes for masonry walls
not delivered by Ekinex®
*) 60 x 60 mm + 55 x 55 mm window
Double installation with centre distance 71 mm (71 series)
Description
Code
a) Pushbutton 71 series
EK-E13-TP-... o EK-E23-TP-...
b) Power socket (window 55 x 55 mm)
EK-PWS-IT or EK-PWS-IT-USB
EK-PWS-DE or EK-PWS-DE-USB
EK-PWS-FR or EK-PWS-FR-USB
EK-PWS-UK or EK-PWS-UK-USB
b1) Front cover
EK-PSC-IT or EK-PSC-IT-USB
EK-PSC-DE or EK-PSC-DE-USB
EK-PSC-FR or EK-PSC-FR-USB
EK-PWS-UK or EK-PWS-UK-USB
c) Deep double plate
EK-D2G-...
d) Double plate
EK-P2G-...
e) Surface double plate
EK-S2G-...
g) Rectangular vertical rockers (2)
EK-T2R-...
a
c
d
f
e
g
g
h
i
b1
b
d
c
a
g
f
l
m
i
h
e
n
o
p
q
r
s
t
b1
b
