55 x 55 mm
55 x 55 mm
229 x 87 x 9 mm
55 x 55 mm
55 x 55 mm
55 x 55 mm
158 x 87 x 9 mm
55 x 55 mm
87 x 87 x 9 mm
DEEP
55 x 55 mm
158 x 87 x 9 mm
55 x 55 mm
55 x 55 mm
168 x 98 x 3 mm
55 x 55 mm
98 x 98 x 3 mm
SURFACE
55 x 55 mm
168 x 98 x 3 mm
55 x 55 mm
55 x 55 mm
151 x 80 x 8 mm
80 x 80 x 8 mm
55 x 55 mm
55 x 55 mm
151 x 80 x 8 mm

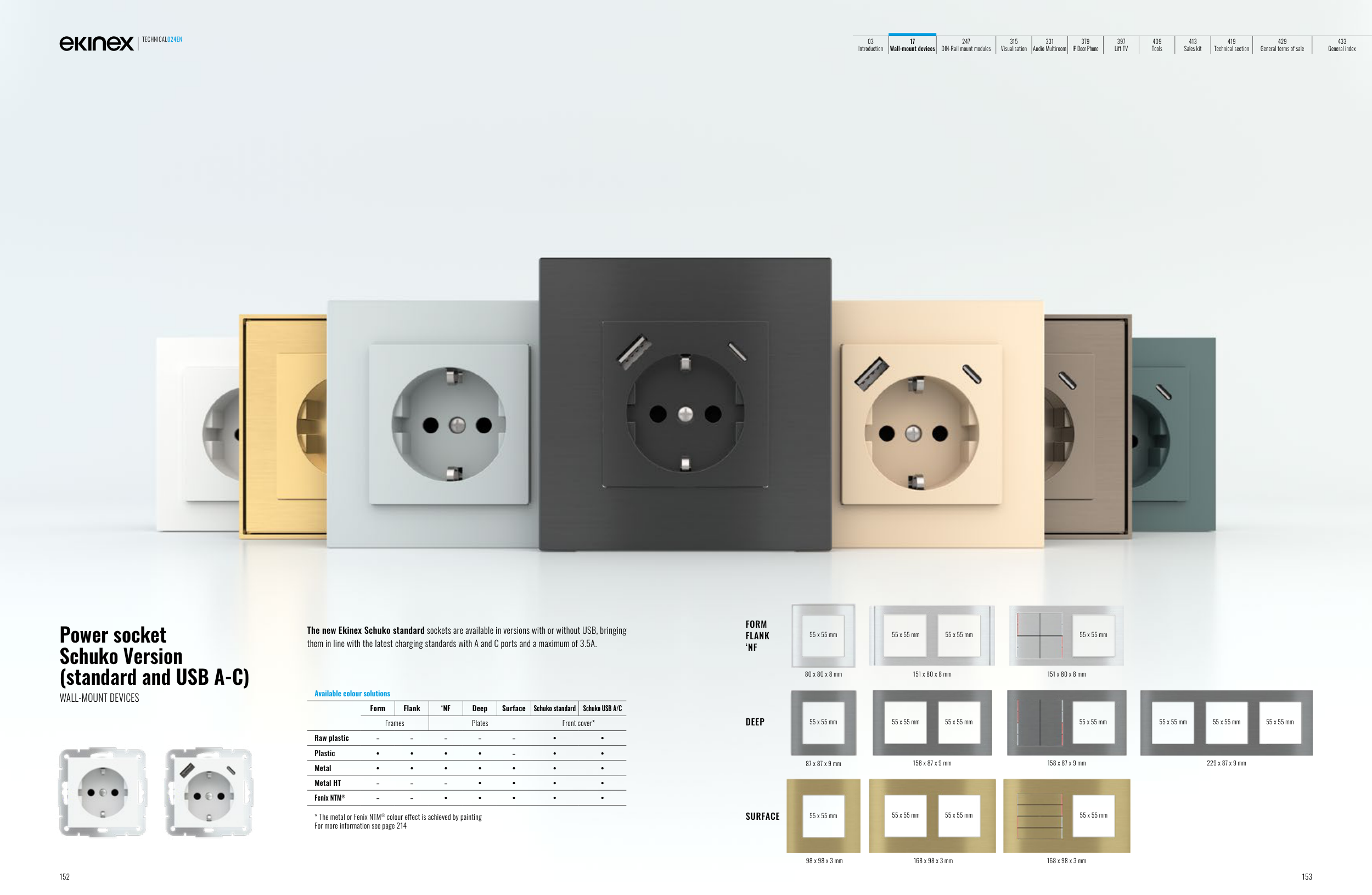

The new Ekinex Schuko standard sockets are available in versions with or without USB, bringing
them in line with the latest charging standards with A and C ports and a maximum of 3.5A.
Power socket
Schuko Version
(standard and USB A-C)
WALL-MOUNT DEVICES
Available colour solutions
Form
Flank
‘NF
Deep
Surface
Schuko standard
Schuko USB A/C
Frames
Plates
Front cover*
Raw plastic
-
-
-
-
-
•
•
Plastic
•
•
•
•
-
•
•
Metal
•
•
•
•
•
•
•
Metal HT
-
-
-
•
•
•
•
Fenix NTM®
-
-
•
•
•
•
•
* The metal or Fenix NTM® colour effect is achieved by painting
For more information see page 214
