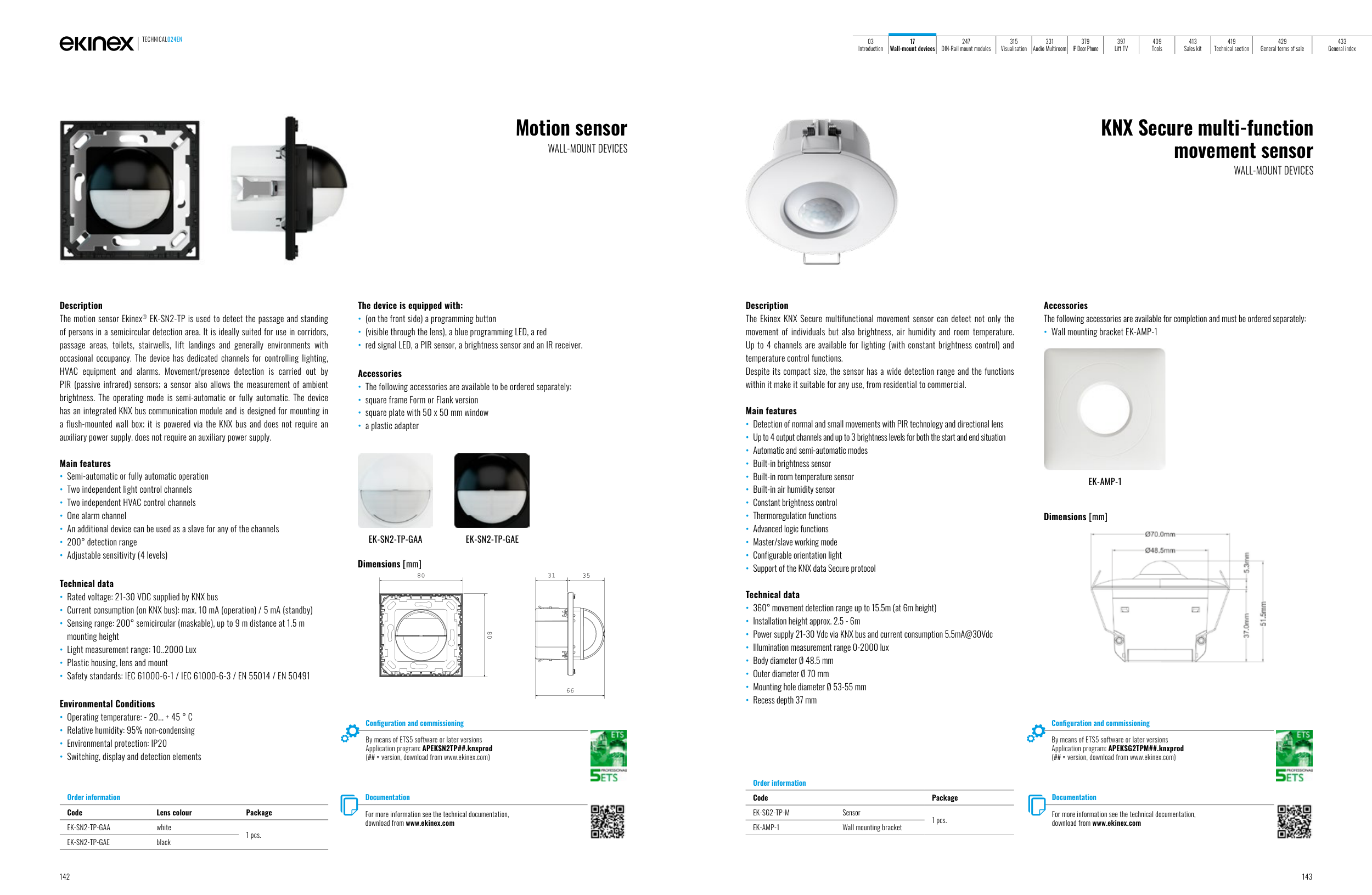

Description
The Ekinex KNX Secure multifunctional movement sensor can detect not only the
movement of individuals but also brightness, air humidity and room temperature.
Up to 4 channels are available for lighting (with constant brightness control) and
temperature control functions.
Despite its compact size, the sensor has a wide detection range and the functions
within it make it suitable for any use, from residential to commercial.
Main features
• Detection of normal and small movements with PIR technology and directional lens
• Up to 4 output channels and up to 3 brightness levels for both the start and end situation
• Automatic and semi-automatic modes
• Built-in brightness sensor
• Built-in room temperature sensor
• Built-in air humidity sensor
• Constant brightness control
• Thermoregulation functions
• Advanced logic functions
• Master/slave working mode
• Configurable orientation light
• Support of the KNX data Secure protocol
Technical data
• 360° movement detection range up to 15.5m (at 6m height)
• Installation height approx. 2.5 - 6m
• Power supply 21-30 Vdc via KNX bus and current consumption 5.5mA@30Vdc
• Illumination measurement range 0-2000 lux
• Body diameter Ø 48.5 mm
• Outer diameter Ø 70 mm
• Mounting hole diameter Ø 53-55 mm
• Recess depth 37 mm
Accessories
The following accessories are available for completion and must be ordered separately:
• Wall mounting bracket EK-AMP-1
Motion sensor
WALL-MOUNT DEVICES
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKSN2TP##.knxprod
(## = version, download from www.ekinex.com)
Order information
Code
Lens colour
Package
EK-SN2-TP-GAA
white
1 pcs.
EK-SN2-TP-GAE
black
Order information
Code
Package
EK-SG2-TP-M
Sensor
1 pcs.
EK-AMP-1
Wall mounting bracket
Description
The motion sensor Ekinex® EK-SN2-TP is used to detect the passage and standing
of persons in a semicircular detection area. It is ideally suited for use in corridors,
passage areas, toilets, stairwells, lift landings and generally environments with
occasional occupancy. The device has dedicated channels for controlling lighting,
HVAC equipment and alarms. Movement/presence detection is carried out by
PIR (passive infrared) sensors; a sensor also allows the measurement of ambient
brightness. The operating mode is semi-automatic or fully automatic. The device
has an integrated KNX bus communication module and is designed for mounting in
a flush-mounted wall box; it is powered via the KNX bus and does not require an
auxiliary power supply. does not require an auxiliary power supply.
Main features
• Semi-automatic or fully automatic operation
• Two independent light control channels
• Two independent HVAC control channels
• One alarm channel
• An additional device can be used as a slave for any of the channels
• 200° detection range
• Adjustable sensitivity (4 levels)
Technical data
• Rated voltage: 21-30 VDC supplied by KNX bus
• Current consumption (on KNX bus): max. 10 mA (operation) / 5 mA (standby)
• Sensing range: 200° semicircular (maskable), up to 9 m distance at 1.5 m
mounting height
• Light measurement range: 10..2000 Lux
• Plastic housing, lens and mount
• Safety standards: IEC 61000-6-1 / IEC 61000-6-3 / EN 55014 / EN 50491
Environmental Conditions
• Operating temperature: - 20... + 45 ° C
• Relative humidity: 95% non-condensing
• Environmental protection: IP20
• Switching, display and detection elements
The device is equipped with:
• (on the front side) a programming button
• (visible through the lens), a blue programming LED, a red
• red signal LED, a PIR sensor, a brightness sensor and an IR receiver.
Accessories
• The following accessories are available to be ordered separately:
• square frame Form or Flank version
• square plate with 50 x 50 mm window
• a plastic adapter
Dimensions [mm]
EK-SN2-TP-GAA
EK-SN2-TP-GAE
KNX Secure multi-function
movement sensor
WALL-MOUNT DEVICES
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKSG2TPM##.knxprod
(## = version, download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
EK-AMP-1
