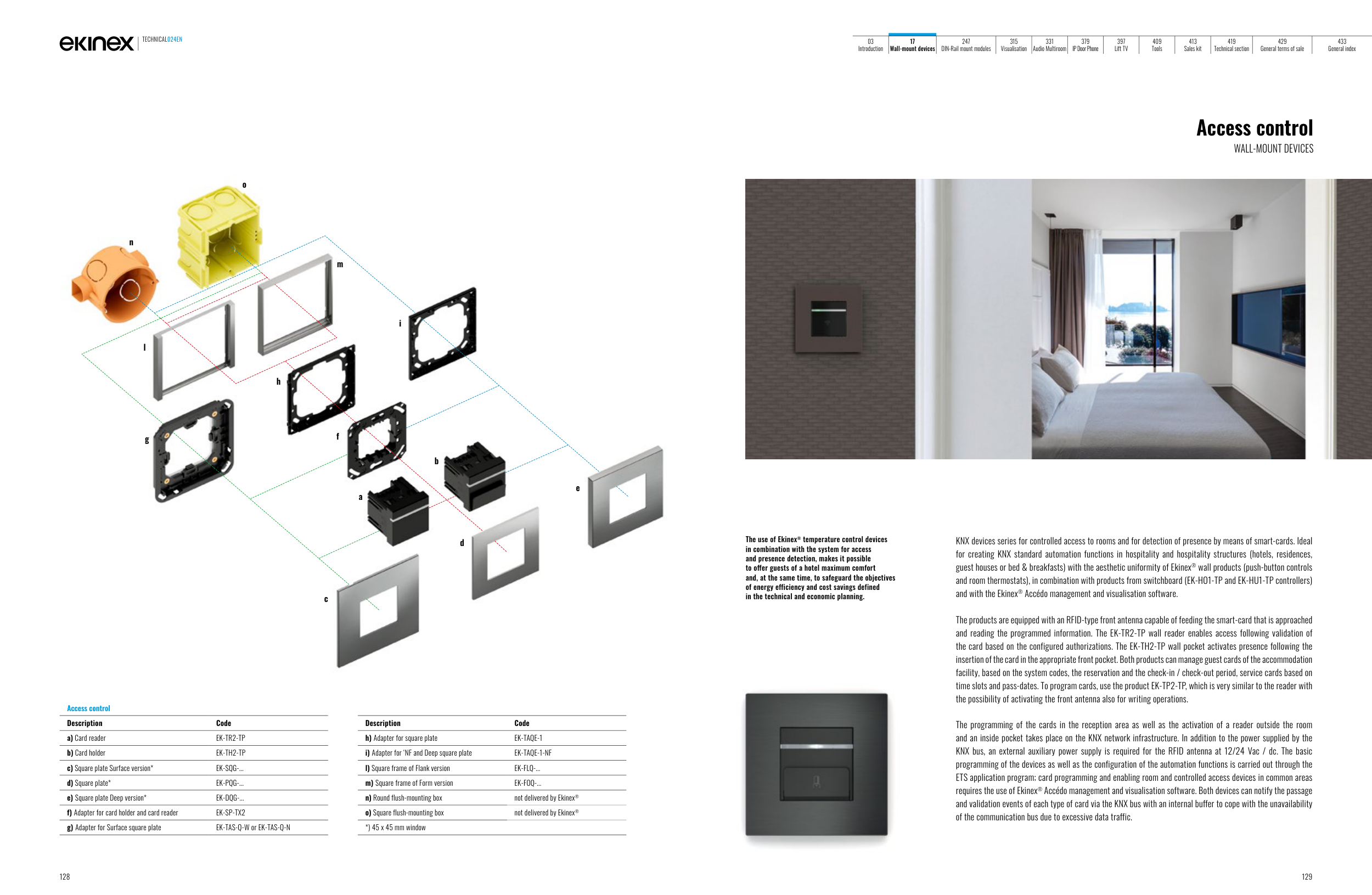

Access control
Description
Code
a) Card reader
EK-TR2-TP
b) Card holder
EK-TH2-TP
c) Square plate Surface version*
EK-SQG-...
d) Square plate*
EK-PQG-...
e) Square plate Deep version*
EK-DQG-...
f) Adapter for card holder and card reader
EK-SP-TX2
g) Adapter for Surface square plate
EK-TAS-Q-W or EK-TAS-Q-N
Description
Code
h) Adapter for square plate
EK-TAQE-1
i) Adapter for ‘NF and Deep square plate
EK-TAQE-1-NF
l) Square frame of Flank version
EK-FLQ-...
m) Square frame of Form version
EK-FOQ-...
n) Round flush-mounting box
not delivered by Ekinex®
o) Square flush-mounting box
not delivered by Ekinex®
*) 45 x 45 mm window
The use of Ekinex® temperature control devices
in combination with the system for access
and presence detection, makes it possible
to offer guests of a hotel maximum comfort
and, at the same time, to safeguard the objectives
of energy efficiency and cost savings defined
in the technical and economic planning.
Access control
WALL-MOUNT DEVICES
KNX devices series for controlled access to rooms and for detection of presence by means of smart-cards. Ideal
for creating KNX standard automation functions in hospitality and hospitality structures (hotels, residences,
guest houses or bed & breakfasts) with the aesthetic uniformity of Ekinex® wall products (push-button controls
and room thermostats), in combination with products from switchboard (EK-HO1-TP and EK-HU1-TP controllers)
and with the Ekinex® Accédo management and visualisation software.
The products are equipped with an RFID-type front antenna capable of feeding the smart-card that is approached
and reading the programmed information. The EK-TR2-TP wall reader enables access following validation of
the card based on the configured authorizations. The EK-TH2-TP wall pocket activates presence following the
insertion of the card in the appropriate front pocket. Both products can manage guest cards of the accommodation
facility, based on the system codes, the reservation and the check-in / check-out period, service cards based on
time slots and pass-dates. To program cards, use the product EK-TP2-TP, which is very similar to the reader with
the possibility of activating the front antenna also for writing operations.
The programming of the cards in the reception area as well as the activation of a reader outside the room
and an inside pocket takes place on the KNX network infrastructure. In addition to the power supplied by the
KNX bus, an external auxiliary power supply is required for the RFID antenna at 12/24 Vac / dc. The basic
programming of the devices as well as the configuration of the automation functions is carried out through the
ETS application program; card programming and enabling room and controlled access devices in common areas
requires the use of Ekinex® Accédo management and visualisation software. Both devices can notify the passage
and validation events of each type of card via the KNX bus with an internal buffer to cope with the unavailability
of the communication bus due to excessive data traffic.
m
l
n
b
a
d
o
h
g
i
c
e
f
