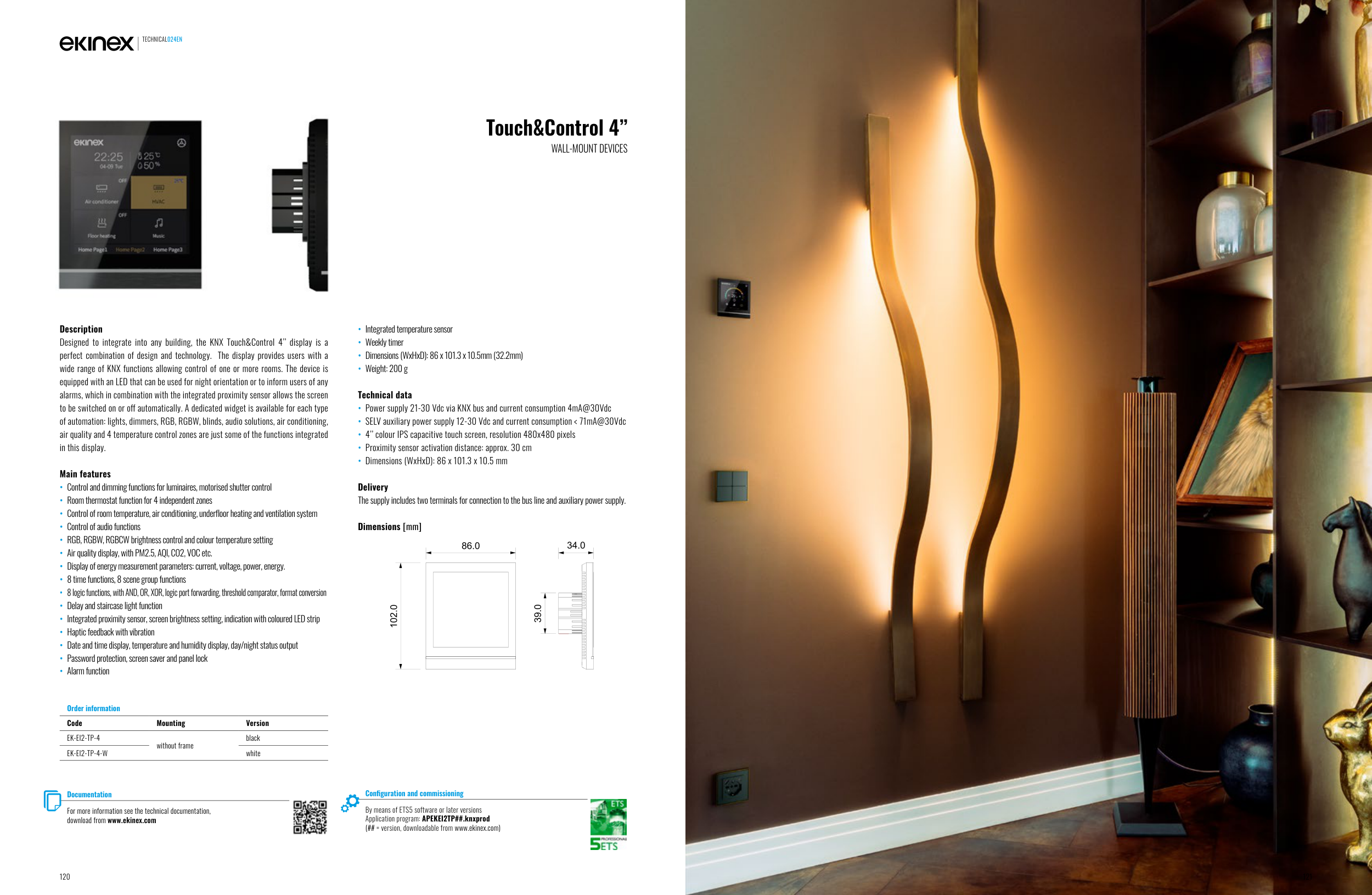

Touch&Control 4”
WALL-MOUNT DEVICES
Description
Designed to integrate into any building, the KNX Touch&Control 4’’ display is a
perfect combination of design and technology. The display provides users with a
wide range of KNX functions allowing control of one or more rooms. The device is
equipped with an LED that can be used for night orientation or to inform users of any
alarms, which in combination with the integrated proximity sensor allows the screen
to be switched on or off automatically. A dedicated widget is available for each type
of automation: lights, dimmers, RGB, RGBW, blinds, audio solutions, air conditioning,
air quality and 4 temperature control zones are just some of the functions integrated
in this display.
Main features
• Control and dimming functions for luminaires, motorised shutter control
• Room thermostat function for 4 independent zones
• Control of room temperature, air conditioning, underfloor heating and ventilation system
• Control of audio functions
• RGB, RGBW, RGBCW brightness control and colour temperature setting
• Air quality display, with PM2.5, AQI, CO2, VOC etc.
• Display of energy measurement parameters: current, voltage, power, energy.
• 8 time functions, 8 scene group functions
• 8 logic functions, with AND, OR, XOR, logic port forwarding, threshold comparator, format conversion
• Delay and staircase light function
• Integrated proximity sensor, screen brightness setting, indication with coloured LED strip
• Haptic feedback with vibration
• Date and time display, temperature and humidity display, day/night status output
• Password protection, screen saver and panel lock
• Alarm function
• Integrated temperature sensor
• Weekly timer
• Dimensions (WxHxD): 86 x 101.3 x 10.5mm (32.2mm)
• Weight: 200 g
Technical data
• Power supply 21-30 Vdc via KNX bus and current consumption 4mA@30Vdc
• SELV auxiliary power supply 12-30 Vdc and current consumption < 71mA@30Vdc
• 4’’ colour IPS capacitive touch screen, resolution 480x480 pixels
• Proximity sensor activation distance: approx. 30 cm
• Dimensions (WxHxD): 86 x 101.3 x 10.5 mm
Delivery
The supply includes two terminals for connection to the bus line and auxiliary power supply.
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKEI2TP##.knxprod
(## = version, downloadable from www.ekinex.com)
Dimensions [mm]
Order information
Code
Mounting
Version
EK-EI2-TP-4
without frame
black
EK-EI2-TP-4-W
white
