Order information
Code
Mounting
EK-ET3-TP
with square and double frame Form or Flank
version, without frame (‘NF version)
Order information
Code
Mounting
EK-ET3-TP
with square and double frame Form or Flank
version, without frame (‘NF version)
TECHNICAL024EN
108
109
03
Introduction
17
Wall-mount devices
247
DIN-Rail mount modules
315
Visualisation
331
Audio Multiroom
379
IP Door Phone
397
Lift TV
409
Tools
413
Sales kit
419
Technical section
429
General terms of sale
433
General index
Description
The Ekinex® multisensor 71 series detects values of temperature, relative humidity
and CO2 equivalent concentration in an air mass. The device can act as a temperature
regulator of a room or zone; it can also perform the regulation by thresholds of
relative humidity and CO2 concentration. The frontal LEDs indicate if the device is
in heating, cooling, dehumidification or CO2 threshold mode. The device integrates a
KNX bus communication module and is intended for mounting onto a wall mounting
box; it is supplied by a SELV voltage directly from the KNX bus and does not require
any auxiliary power supply.
Main features
• Integrated temperature and relative humidity sensors
• Integrated VOCs (Volatile Organic Compounds) sensor with output signal for CO2
equivalent
• Room thermostat function
• Threshold regulator function for relative humidity and CO2
• LEDs for heating, cooling, dehumidification or CO2 threshold mode indication
• Plastic casing
• Connection to bus line with KNX terminal block
• Frontal programming pushbutton and LED
• Wall-mounting installation on round or square wall box
• IP20 protection degree (installed)
• Weight 90 g (with mounting support)
Technical data
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 13 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• 1 full front cover with 60 x 60 mm modularity
• square and double frame Form or Flank version
• square, double and triple plate with 60 x 60 mm window
• a plastic adapter
• a metal support for installation onto round or square mounting box
(fixing holes 60 mm apart)
Dimensions [mm]
L
13
9
21
43
H
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKET3TP##.knxprod
(## = version, downloadable from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Mounting with frame: 81 x 77 (L x H)
Mounting without frame (‘NF): 80 x 80 (L x H)

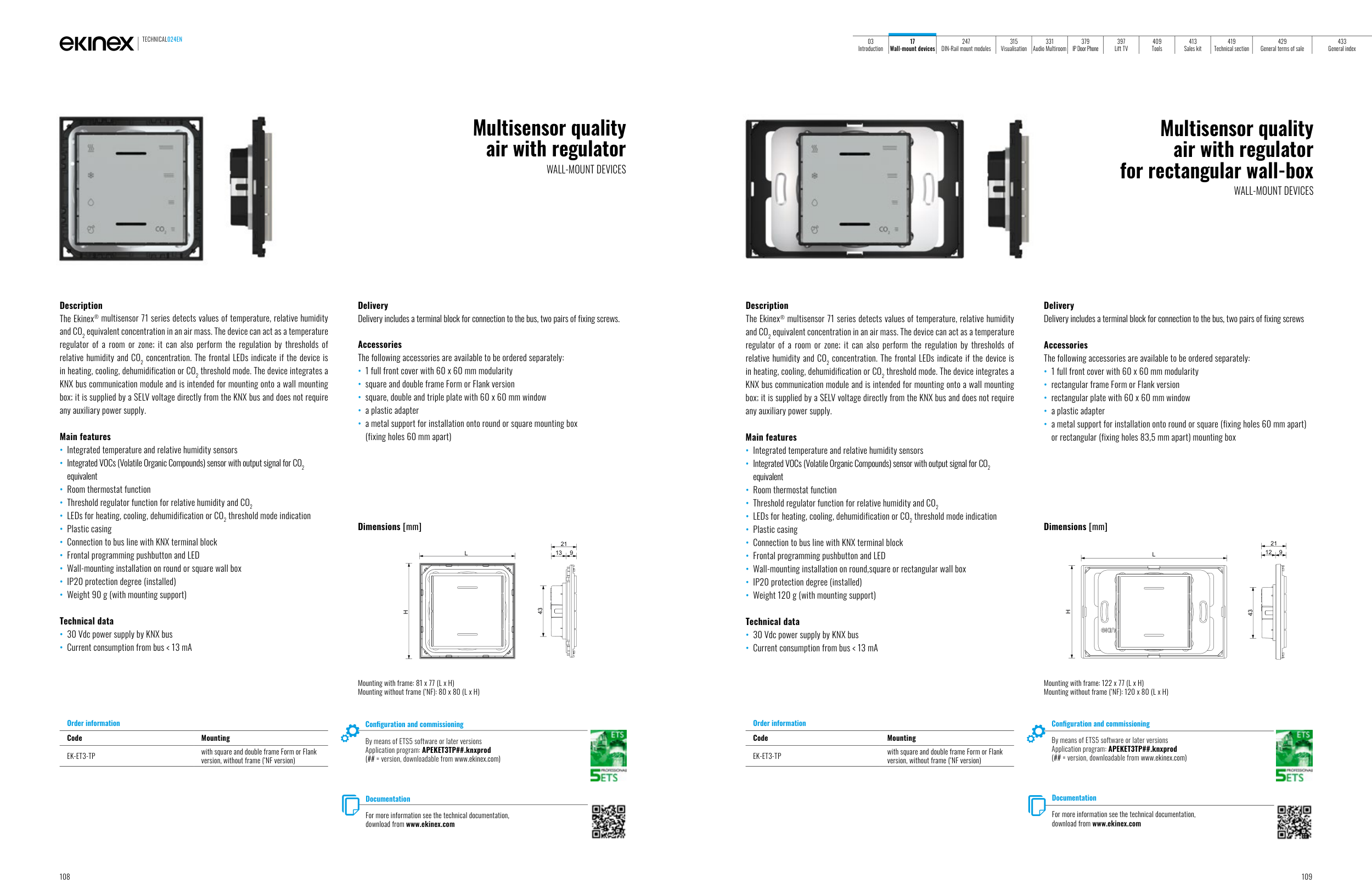

Multisensor quality
air with regulator
for rectangular wall-box
WALL-MOUNT DEVICES
Description
The Ekinex® multisensor 71 series detects values of temperature, relative humidity
and CO2 equivalent concentration in an air mass. The device can act as a temperature
regulator of a room or zone; it can also perform the regulation by thresholds of
relative humidity and CO2 concentration. The frontal LEDs indicate if the device is
in heating, cooling, dehumidification or CO2 threshold mode. The device integrates a
KNX bus communication module and is intended for mounting onto a wall mounting
box; it is supplied by a SELV voltage directly from the KNX bus and does not require
any auxiliary power supply.
Main features
• Integrated temperature and relative humidity sensors
• Integrated VOCs (Volatile Organic Compounds) sensor with output signal for CO2
equivalent
• Room thermostat function
• Threshold regulator function for relative humidity and CO2
• LEDs for heating, cooling, dehumidification or CO2 threshold mode indication
• Plastic casing
• Connection to bus line with KNX terminal block
• Frontal programming pushbutton and LED
• Wall-mounting installation on round,square or rectangular wall box
• IP20 protection degree (installed)
• Weight 120 g (with mounting support)
Technical data
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 13 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws
Accessories
The following accessories are available to be ordered separately:
• 1 full front cover with 60 x 60 mm modularity
• rectangular frame Form or Flank version
• rectangular plate with 60 x 60 mm window
• a plastic adapter
• a metal support for installation onto round or square (fixing holes 60 mm apart)
or rectangular (fixing holes 83,5 mm apart) mounting box
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKET3TP##.knxprod
(## = version, downloadable from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
L
H
12
9
21
43
Mounting with frame: 122 x 77 (L x H)
Mounting without frame (‘NF): 120 x 80 (L x H)
Multisensor quality
air with regulator
WALL-MOUNT DEVICES
