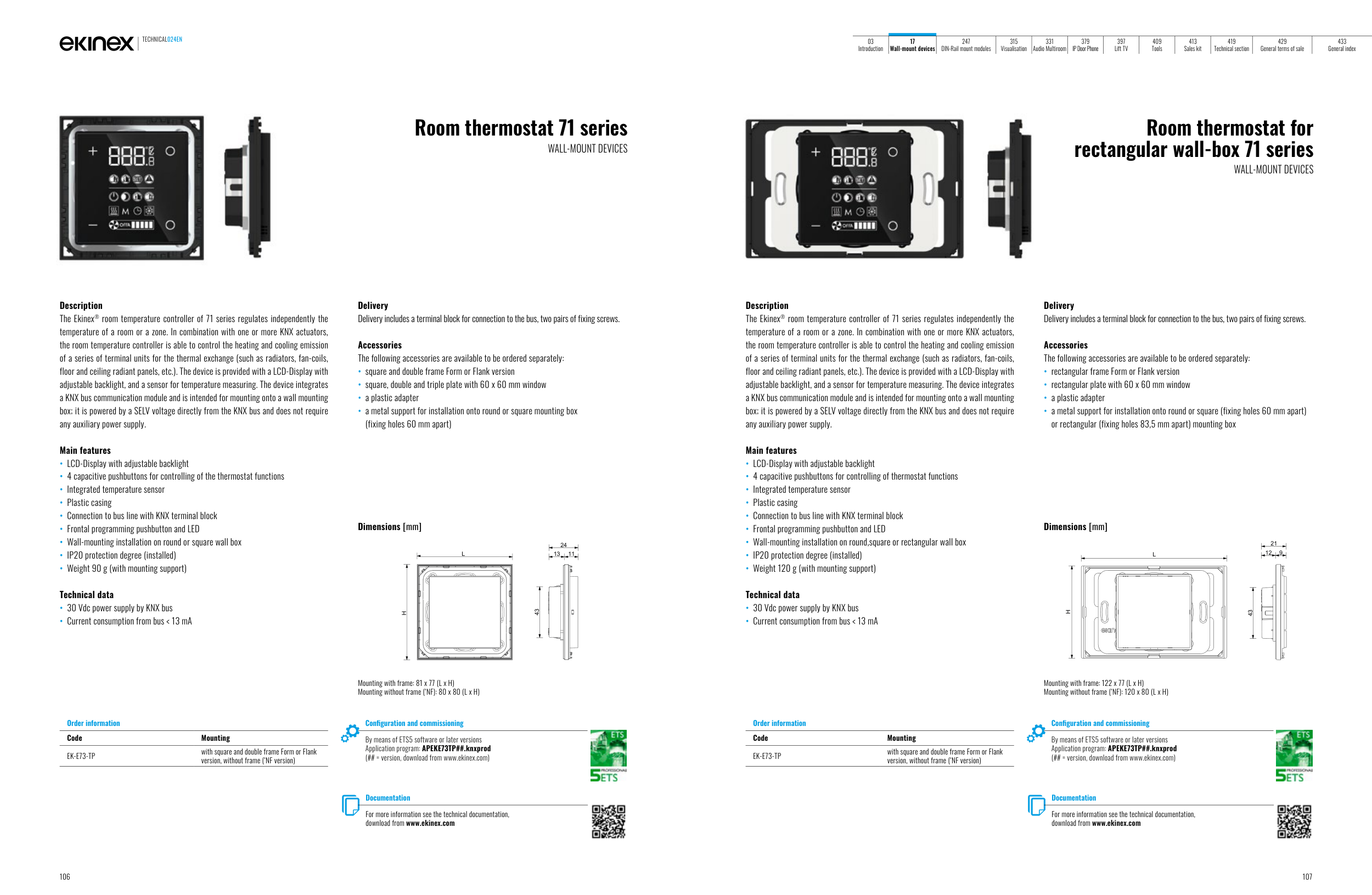

Room thermostat 71 series
WALL-MOUNT DEVICES
Description
The Ekinex® room temperature controller of 71 series regulates independently the
temperature of a room or a zone. In combination with one or more KNX actuators,
the room temperature controller is able to control the heating and cooling emission
of a series of terminal units for the thermal exchange (such as radiators, fan-coils,
floor and ceiling radiant panels, etc.). The device is provided with a LCD-Display with
adjustable backlight, and a sensor for temperature measuring. The device integrates
a KNX bus communication module and is intended for mounting onto a wall mounting
box; it is powered by a SELV voltage directly from the KNX bus and does not require
any auxiliary power supply.
Main features
• LCD-Display with adjustable backlight
• 4 capacitive pushbuttons for controlling of the thermostat functions
• Integrated temperature sensor
• Plastic casing
• Connection to bus line with KNX terminal block
• Frontal programming pushbutton and LED
• Wall-mounting installation on round or square wall box
• IP20 protection degree (installed)
• Weight 90 g (with mounting support)
Technical data
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 13 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• square and double frame Form or Flank version
• square, double and triple plate with 60 x 60 mm window
• a plastic adapter
• a metal support for installation onto round or square mounting box
(fixing holes 60 mm apart)
Description
The Ekinex® room temperature controller of 71 series regulates independently the
temperature of a room or a zone. In combination with one or more KNX actuators,
the room temperature controller is able to control the heating and cooling emission
of a series of terminal units for the thermal exchange (such as radiators, fan-coils,
floor and ceiling radiant panels, etc.). The device is provided with a LCD-Display with
adjustable backlight, and a sensor for temperature measuring. The device integrates
a KNX bus communication module and is intended for mounting onto a wall mounting
box; it is powered by a SELV voltage directly from the KNX bus and does not require
any auxiliary power supply.
Main features
• LCD-Display with adjustable backlight
• 4 capacitive pushbuttons for controlling of thermostat functions
• Integrated temperature sensor
• Plastic casing
• Connection to bus line with KNX terminal block
• Frontal programming pushbutton and LED
• Wall-mounting installation on round,square or rectangular wall box
• IP20 protection degree (installed)
• Weight 120 g (with mounting support)
Technical data
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 13 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• rectangular frame Form or Flank version
• rectangular plate with 60 x 60 mm window
• a plastic adapter
• a metal support for installation onto round or square (fixing holes 60 mm apart)
or rectangular (fixing holes 83,5 mm apart) mounting box
Dimensions [mm]
L
H
13
11
24
43
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKE73TP##.knxprod
(## = version, download from www.ekinex.com)
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKE73TP##.knxprod
(## = version, download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Room thermostat for
rectangular wall-box 71 series
WALL-MOUNT DEVICES
Mounting with frame: 122 x 77 (L x H)
Mounting without frame (‘NF): 120 x 80 (L x H)
Mounting with frame: 81 x 77 (L x H)
Mounting without frame (‘NF): 80 x 80 (L x H)
Dimensions [mm]
L
H
12
9
21
43
Order information
Code
Mounting
EK-E73-TP
with square and double frame Form or Flank
version, without frame (‘NF version)
Order information
Code
Mounting
EK-E73-TP
with square and double frame Form or Flank
version, without frame (‘NF version)
