The Ekinex® thermostats of 71 series range and related accessories offer the possibility to realize several
variations that will satisfy the most diverse needs. The base is represented by the device which is fitted with
a KNX communication module. The thermostat is suitable for mounting into a flush mounting box, either round
or square, provided with fixing holes 60 mm apart or for mounting into a rectangular wall mounting box 3
modules according to the Italian installation standard provided with fixing holes 83,5 mm apart. Each thermostat
is delivered with a terminal block and two pairs of fixing screws.
Depending on the version, the thermostat must be completed with its relative metal support, a plastic adapter,
a square or rectangular plate with 60 x 60 mm window and a square or rectangular frame. The frames are
available in two stylish alternatives (Form and Flank). Plates and frames are in plastic material, aluminium or
Fenix NTM®, in several colour and finishing variations. The ‘NF versions of the thermostats are mounted without
frame and are provided with a side profile in white or black colour.
The thermostats simply get connected to the unique signal bus cable and do not require auxiliary power supply;
the devices are powered at SELV (Safety Extra Low Voltage) voltage, thus offering a much higher safety level than
traditional commands. The configuration and commissioning is carried out by means of the ETS® software. The
related application programs can be downloaded from the www.ekinex.com website.
Many different combinations,
possibilities installation
horizontally or vertically,
71 room temperature control
meets all requirements. Yours too...
Room thermostats 71 series
WALL-MOUNT DEVICES
TECHNICAL024EN
104
105
03
Introduction
17
Wall-mount devices
247
DIN-Rail mount modules
315
Visualisation
331
Audio Multiroom
379
IP Door Phone
397
Lift TV
409
Tools
413
Sales kit
419
Technical section
429
General terms of sale
433
General index
03
Introduction
17
Wall-mount devices
182
DIN-Rail mount modules
245
Accessories
247
Supervision
256
Tools
260
Sales kit
266
Technical section
277
Technical section
279
Index (codes)
284
Index (description)

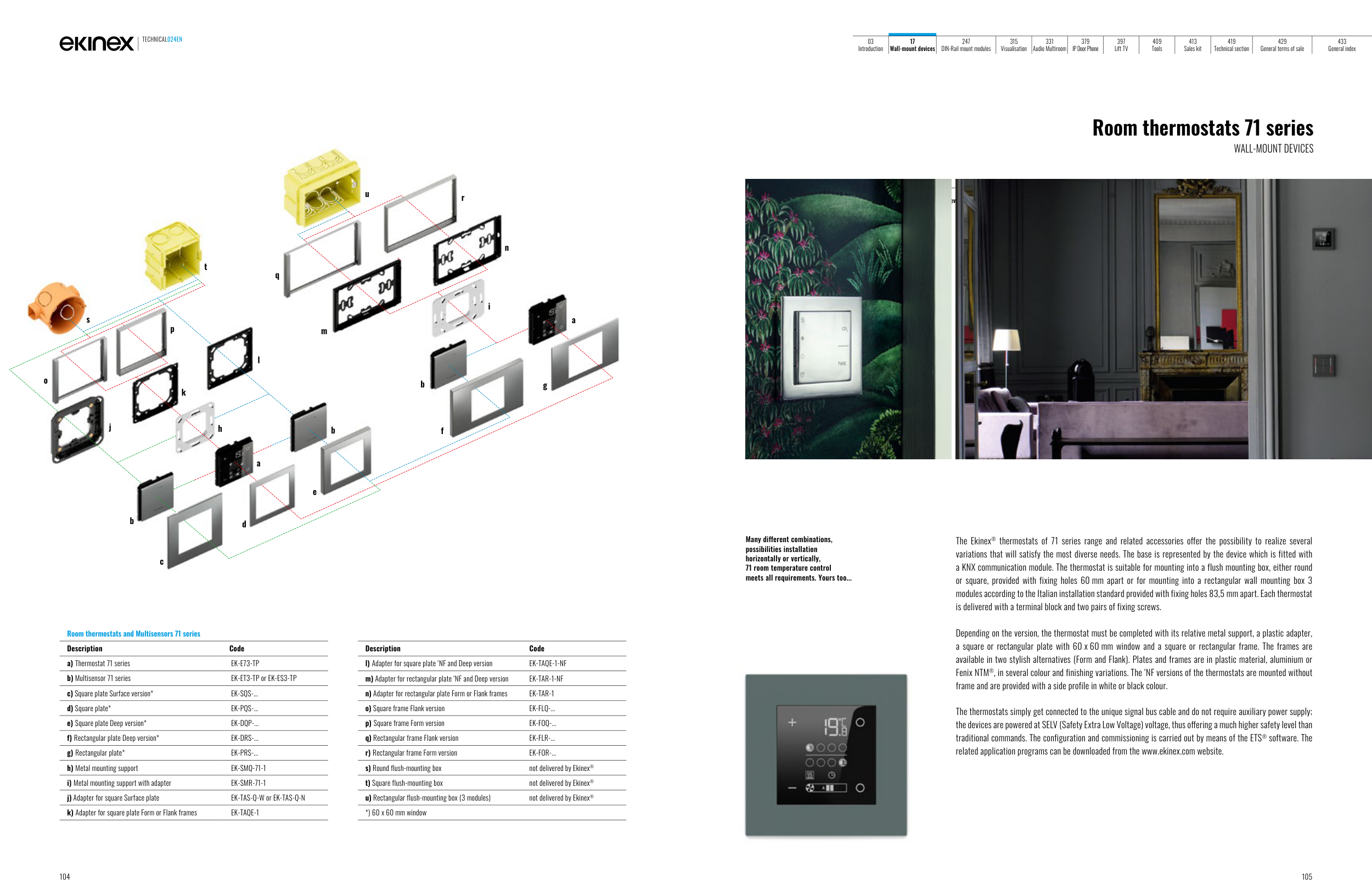

Room thermostats and Multisensors 71 series
Description
Code
a) Thermostat 71 series
EK-E73-TP
b) Multisensor 71 series
EK-ET3-TP or EK-ES3-TP
c) Square plate Surface version*
EK-SQS-...
d) Square plate*
EK-PQS-...
e) Square plate Deep version*
EK-DQP-...
f) Rectangular plate Deep version*
EK-DRS-...
g) Rectangular plate*
EK-PRS-...
h) Metal mounting support
EK-SMQ-71-1
i) Metal mounting support with adapter
EK-SMR-71-1
j) Adapter for square Surface plate
EK-TAS-Q-W or EK-TAS-Q-N
k) Adapter for square plate Form or Flank frames
EK-TAQE-1
Description
Code
l) Adapter for square plate ‘NF and Deep version
EK-TAQE-1-NF
m) Adapter for rectangular plate ‘NF and Deep version
EK-TAR-1-NF
n) Adapter for rectangular plate Form or Flank frames
EK-TAR-1
o) Square frame Flank version
EK-FLQ-...
p) Square frame Form version
EK-FOQ-...
q) Rectangular frame Flank version
EK-FLR-...
r) Rectangular frame Form version
EK-FOR-...
s) Round flush-mounting box
not delivered by Ekinex®
t) Square flush-mounting box
not delivered by Ekinex®
u) Rectangular flush-mounting box (3 modules)
not delivered by Ekinex®
*) 60 x 60 mm window
