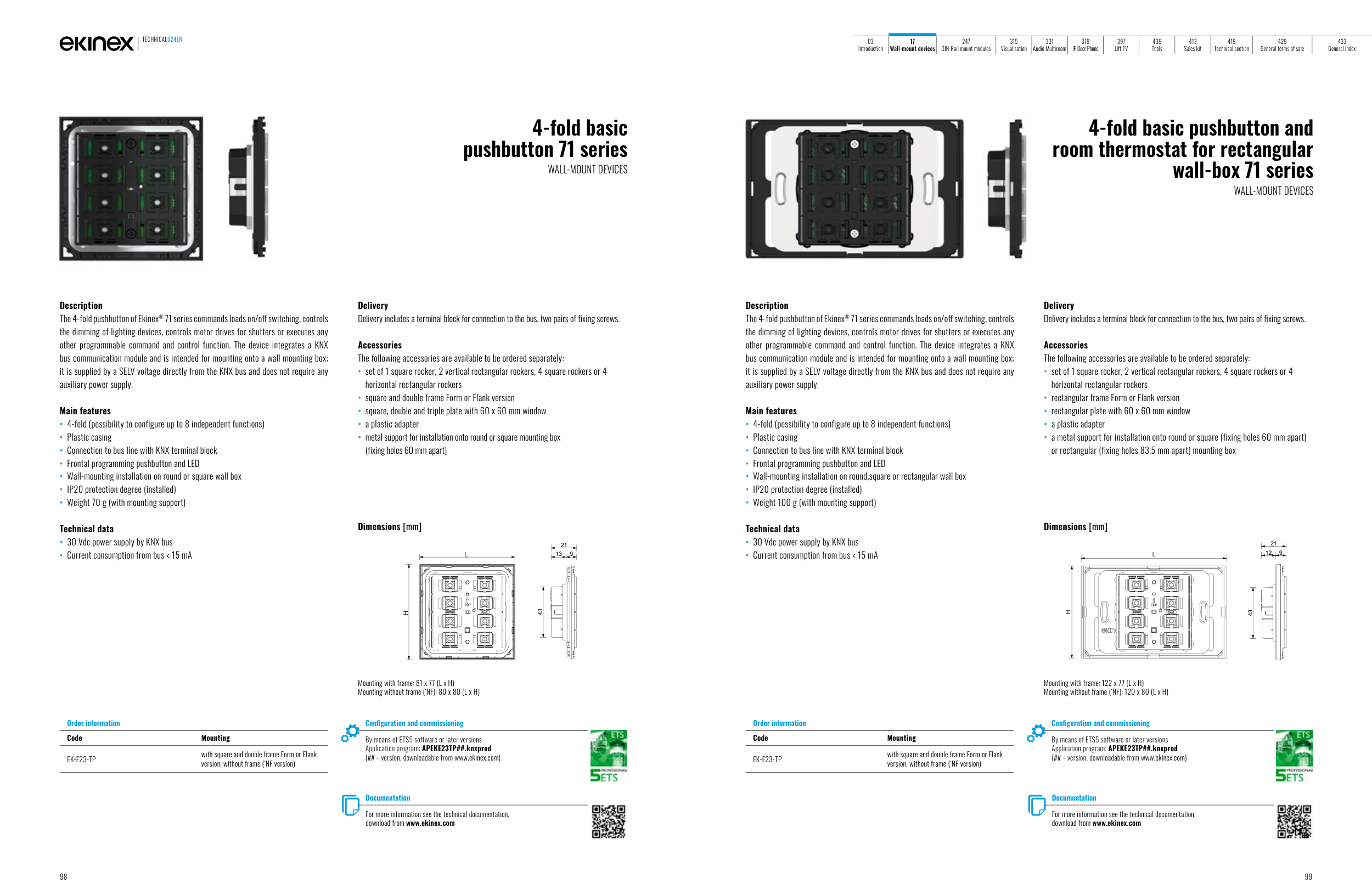

4-fold basic
pushbutton 71 series
WALL-MOUNT DEVICES
Description
The 4-fold pushbutton of Ekinex® 71 series commands loads on/off switching, controls
the dimming of lighting devices, controls motor drives for shutters or executes any
other programmable command and control function. The device integrates a KNX
bus communication module and is intended for mounting onto a wall mounting box;
it is supplied by a SELV voltage directly from the KNX bus and does not require any
auxiliary power supply.
Main features
• 4-fold (possibility to configure up to 8 independent functions)
• Plastic casing
• Connection to bus line with KNX terminal block
• Frontal programming pushbutton and LED
• Wall-mounting installation on round or square wall box
• IP20 protection degree (installed)
• Weight 70 g (with mounting support)
Technical data
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 15 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• set of 1 square rocker, 2 vertical rectangular rockers, 4 square rockers or 4
horizontal rectangular rockers
• square and double frame Form or Flank version
• square, double and triple plate with 60 x 60 mm window
• a plastic adapter
• metal support for installation onto round or square mounting box
(fixing holes 60 mm apart)
Dimensions [mm]
L
13
9
21
43
H
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKE23TP##.knxprod
(## = version, downloadable from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Mounting with frame: 81 x 77 (L x H)
Mounting without frame (‘NF): 80 x 80 (L x H)
4-fold basic pushbutton and
room thermostat for rectangular
wall-box 71 series
WALL-MOUNT DEVICES
Description
The 4-fold pushbutton of Ekinex® 71 series commands loads on/off switching, controls
the dimming of lighting devices, controls motor drives for shutters or executes any
other programmable command and control function. The device integrates a KNX
bus communication module and is intended for mounting onto a wall mounting box;
it is supplied by a SELV voltage directly from the KNX bus and does not require any
auxiliary power supply.
Main features
• 4-fold (possibility to configure up to 8 independent functions)
• Plastic casing
• Connection to bus line with KNX terminal block
• Frontal programming pushbutton and LED
• Wall-mounting installation on round,square or rectangular wall box
• IP20 protection degree (installed)
• Weight 100 g (with mounting support)
Technical data
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 15 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• set of 1 square rocker, 2 vertical rectangular rockers, 4 square rockers or 4
horizontal rectangular rockers
• rectangular frame Form or Flank version
• rectangular plate with 60 x 60 mm window
• a plastic adapter
• a metal support for installation onto round or square (fixing holes 60 mm apart)
or rectangular (fixing holes 83,5 mm apart) mounting box
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKE23TP##.knxprod
(## = version, downloadable from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
L
H
12
9
21
43
Mounting with frame: 122 x 77 (L x H)
Mounting without frame (‘NF): 120 x 80 (L x H)
Order information
Code
Mounting
EK-E23-TP
with square and double frame Form or Flank
version, without frame (‘NF version)
Order information
Code
Mounting
EK-E23-TP
with square and double frame Form or Flank
version, without frame (‘NF version)
