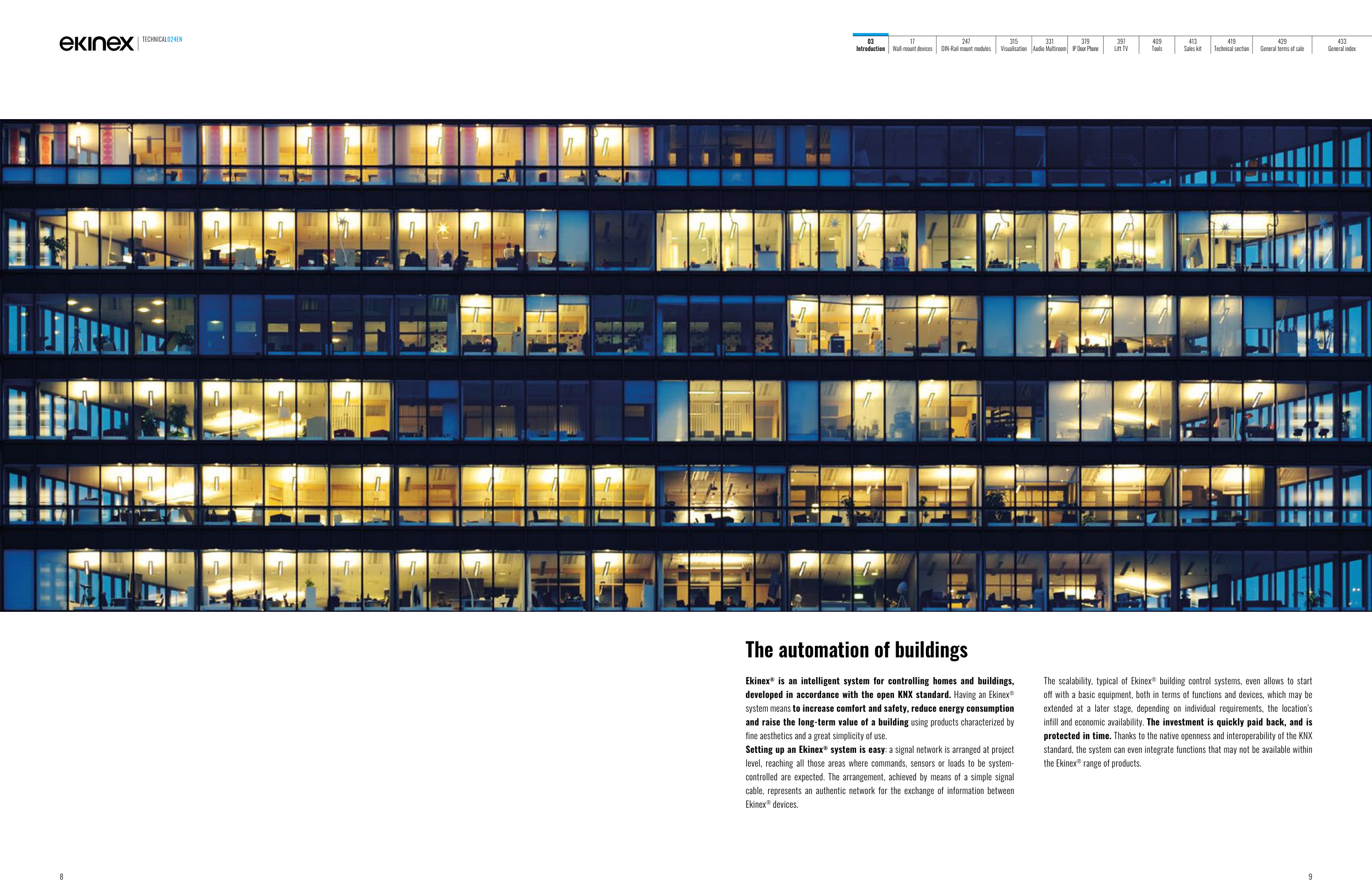

The automation of buildings
Ekinex® is an intelligent system for controlling homes and buildings,
developed in accordance with the open KNX standard. Having an Ekinex®
system means to increase comfort and safety, reduce energy consumption
and raise the long-term value of a building using products characterized by
fine aesthetics and a great simplicity of use.
Setting up an Ekinex® system is easy: a signal network is arranged at project
level, reaching all those areas where commands, sensors or loads to be system-
controlled are expected. The arrangement, achieved by means of a simple signal
cable, represents an authentic network for the exchange of information between
Ekinex® devices.
The scalability, typical of Ekinex® building control systems, even allows to start
off with a basic equipment, both in terms of functions and devices, which may be
extended at a later stage, depending on individual requirements, the location’s
infill and economic availability. The investment is quickly paid back, and is
protected in time. Thanks to the native openness and interoperability of the KNX
standard, the system can even integrate functions that may not be available within
the Ekinex® range of products.
TECHNICAL024EN
8
9
03
Introduction
17
Wall-mount devices
247
DIN-Rail mount modules
315
Visualisation
331
Audio Multiroom
379
IP Door Phone
397
Lift TV
409
Tools
413
Sales kit
419
Technical section
429
General terms of sale
433
General index
