The Ekinex® pushbuttons of 71 series range and related accessories offer the possibility to realize several
variations that will satisfy the most diverse needs. The base is represented by the device which is fitted with a
KNX communication module. The pushbutton is suitable for mounting into a flush mounting box, either round or
square, provided with fixing holes 60 mm apart and for mounting into a rectangular wall mounting box 3 seater
according to the Italian installation standard provided with fixing holes 83,5 mm apart. Each pushbutton is
delivered with a terminal block and two pairs of fixing screws.
The pushbuttons must be finished off with its relative metal support, a plastic adapter, an operation surface
(rockers), a plate with 60 x 60 mm window and a frame. The rockers are available in square and rectangular
shapes of different modularities, in plastic material, aluminium or Fenix NTM® and in several colours. Version
EK-E13-TP-.. has integrated LEDs which can be programmed freely: as an example, as a status feedback or as an
orientation light at night time. Two colour combinations are available for the LEDs: blue / green or red / white.
The same version also offers a room thermostat function, thanks to the integrated temperature sensor. The
frames, square and rectangular, are available in two stylish alternatives (Form and Flank) and are available in
plastic material or aluminium and in several colours and finishings. The ‘NF version of the pushbutton is mounted
without frame and is provided with a side profile in white or black colour.
The pushbuttons simply get connected to the unique signal bus cable and do not require auxiliary power supply;
the devices are supplied at SELV (Safety Extra Low Voltage) voltage, thus offering a much higher safety level than
traditional commands. The configuration and commissioning is carried out by means of the ETS® software. The
related application programs can be downloaded from the www.ekinex.com website.

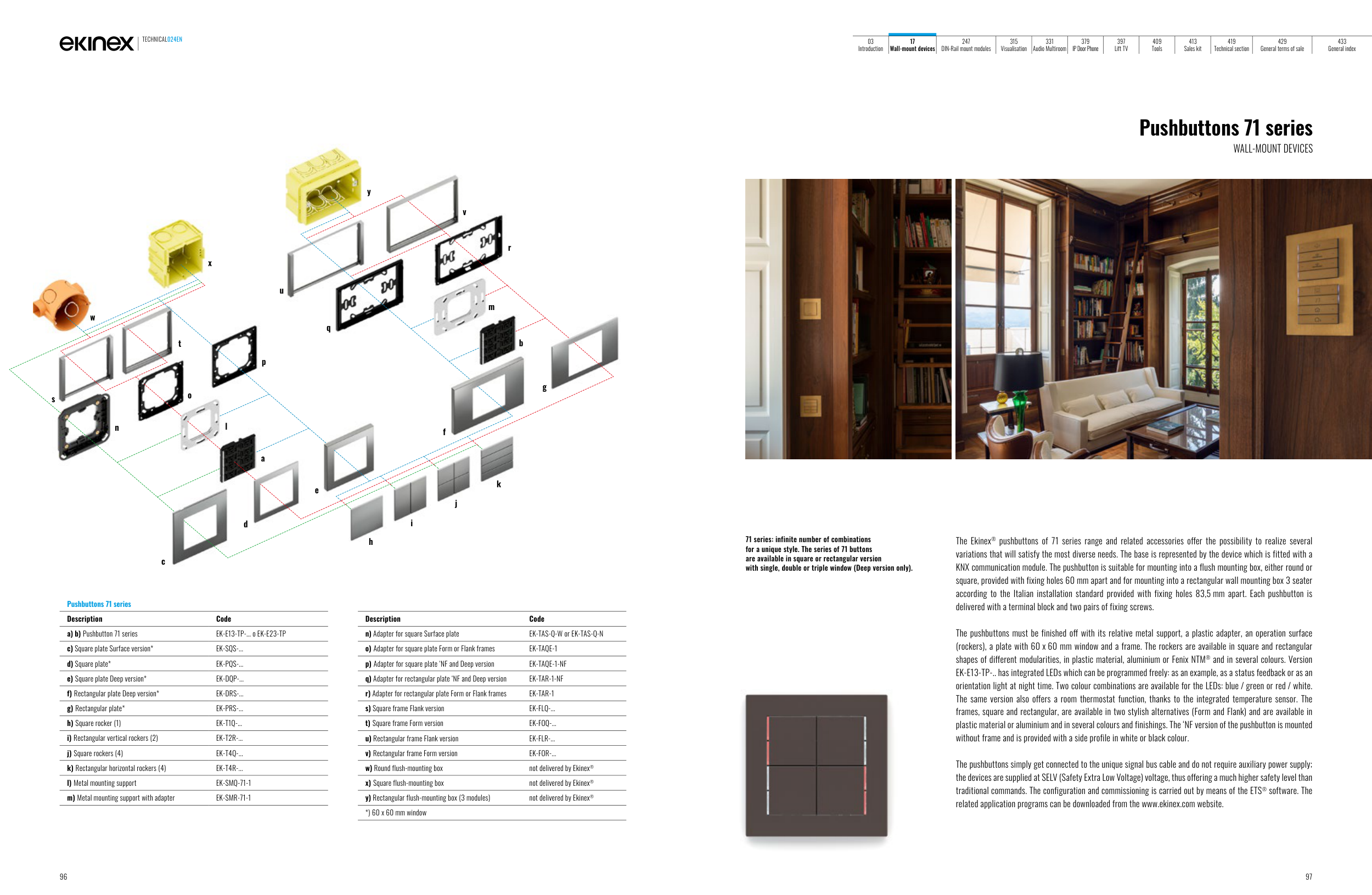

Pushbuttons 71 series
WALL-MOUNT DEVICES
71 series: infinite number of combinations
for a unique style. The series of 71 buttons
are available in square or rectangular version
with single, double or triple window (Deep version only).
Pushbuttons 71 series
Description
Code
a) b) Pushbutton 71 series
EK-E13-TP-... o EK-E23-TP
c) Square plate Surface version*
EK-SQS-...
d) Square plate*
EK-PQS-...
e) Square plate Deep version*
EK-DQP-...
f) Rectangular plate Deep version*
EK-DRS-...
g) Rectangular plate*
EK-PRS-...
h) Square rocker (1)
EK-T1Q-...
i) Rectangular vertical rockers (2)
EK-T2R-...
j) Square rockers (4)
EK-T4Q-...
k) Rectangular horizontal rockers (4)
EK-T4R-...
l) Metal mounting support
EK-SMQ-71-1
m) Metal mounting support with adapter
EK-SMR-71-1
Description
Code
n) Adapter for square Surface plate
EK-TAS-Q-W or EK-TAS-Q-N
o) Adapter for square plate Form or Flank frames
EK-TAQE-1
p) Adapter for square plate ‘NF and Deep version
EK-TAQE-1-NF
q) Adapter for rectangular plate ‘NF and Deep version
EK-TAR-1-NF
r) Adapter for rectangular plate Form or Flank frames
EK-TAR-1
s) Square frame Flank version
EK-FLQ-...
t) Square frame Form version
EK-FOQ-...
u) Rectangular frame Flank version
EK-FLR-...
v) Rectangular frame Form version
EK-FOR-...
w) Round flush-mounting box
not delivered by Ekinex®
x) Square flush-mounting box
not delivered by Ekinex®
y) Rectangular flush-mounting box (3 modules)
not delivered by Ekinex®
*) 60 x 60 mm window
g
f
e
n
l
p
k
i
o
b
a
c
d
h
j
q
s
t
u
v
w
x
y
m
r
