128 x 80 x 9 mm
80 x 80 x 8 mm
80 x 80 x 8 mm
80 x 80 x 8 mm
80 x 80 x 9 mm
158 x 80 x 9 mm
80 x 80 x 8 mm
68 x 45 mm
60 x 60 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
Available colour solutions
Form
Flank
‘NF
Deep
Surface
Rockers
Frames
Plates
Plastic
•
•
•
•
-
•
Metal
•
•
•
•
•
•
Metal HT
-
-
-
•
•
•
Fenix NTM®
-
-
•
•
•
•
For more information see page 214

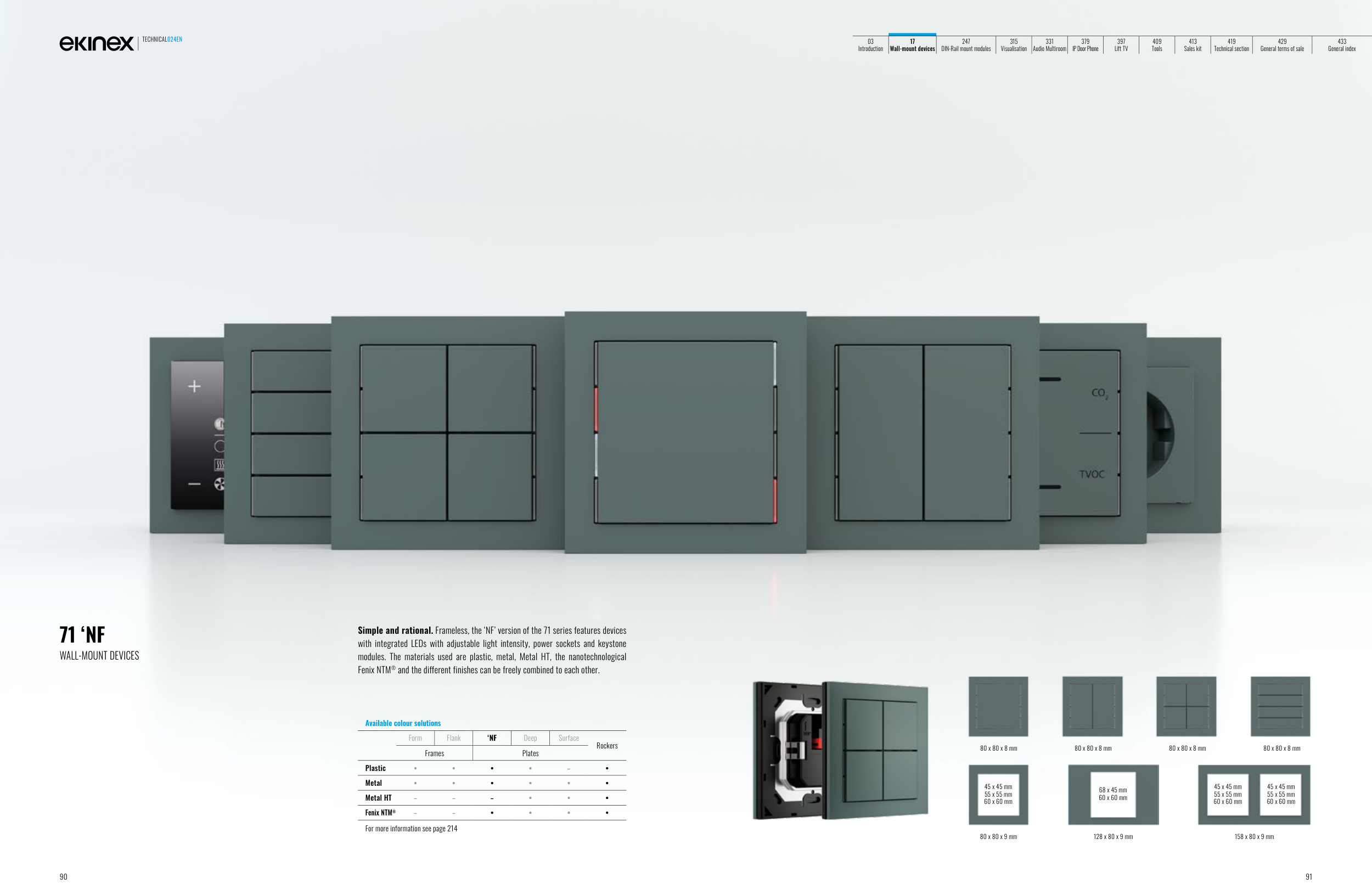

71 ‘NF
WALL-MOUNT DEVICES
Simple and rational. Frameless, the ‘NF’ version of the 71 series features devices
with integrated LEDs with adjustable light intensity, power sockets and keystone
modules. The materials used are plastic, metal, Metal HT, the nanotechnological
Fenix NTM® and the different finishes can be freely combined to each other.
