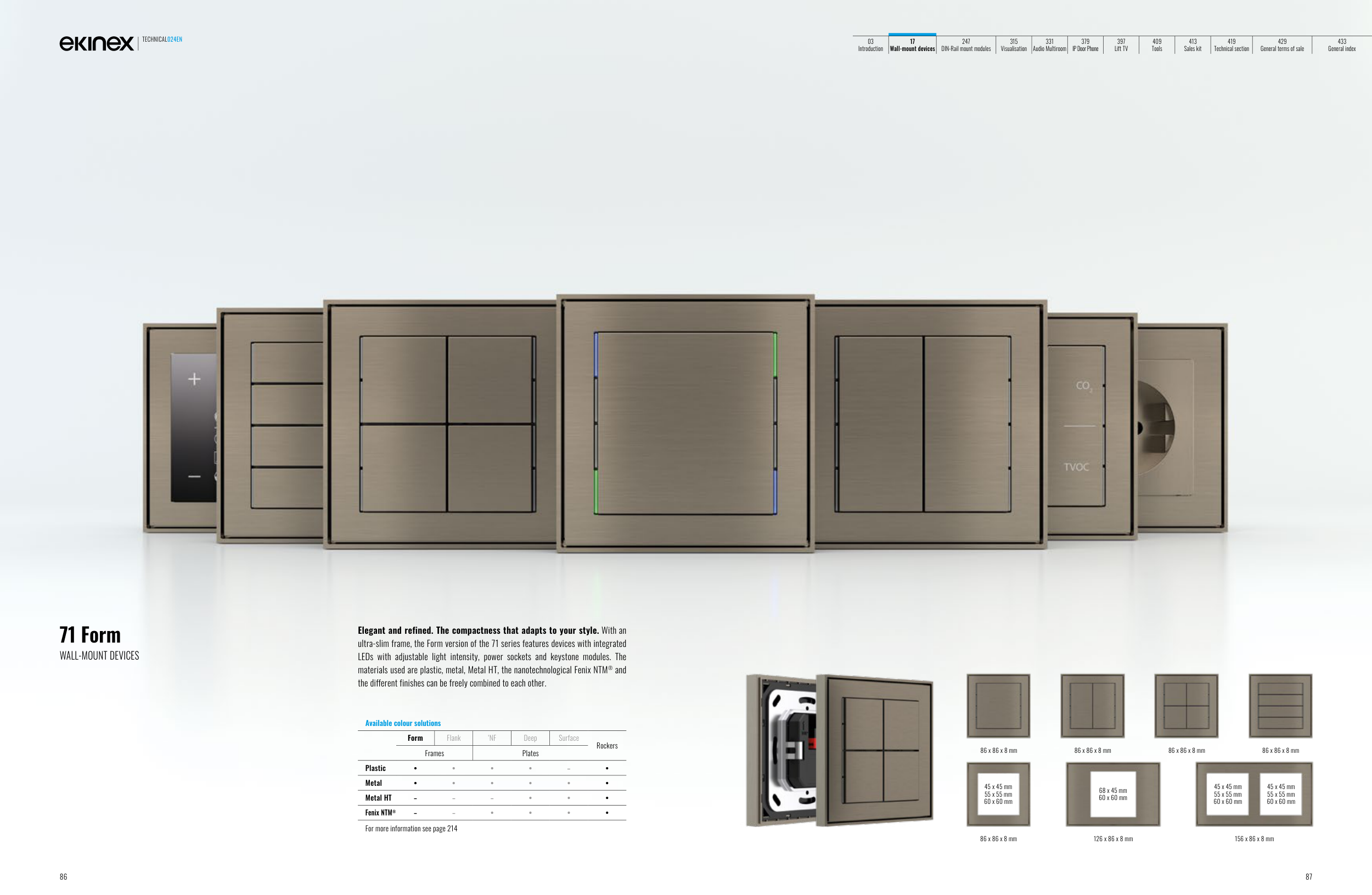

Elegant and refined. The compactness that adapts to your style. With an
ultra-slim frame, the Form version of the 71 series features devices with integrated
LEDs with adjustable light intensity, power sockets and keystone modules. The
materials used are plastic, metal, Metal HT, the nanotechnological Fenix NTM® and
the different finishes can be freely combined to each other.
71 Form
WALL-MOUNT DEVICES
126 x 86 x 8 mm
86 x 86 x 8 mm
86 x 86 x 8 mm
68 x 45 mm
60 x 60 mm
86 x 86 x 8 mm
86 x 86 x 8 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
156 x 86 x 8 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
86 x 86 x 8 mm
Available colour solutions
Form
Flank
‘NF
Deep
Surface
Rockers
Frames
Plates
Plastic
•
•
•
•
-
•
Metal
•
•
•
•
•
•
Metal HT
-
-
-
•
•
•
Fenix NTM®
-
-
•
•
•
•
For more information see page 214
