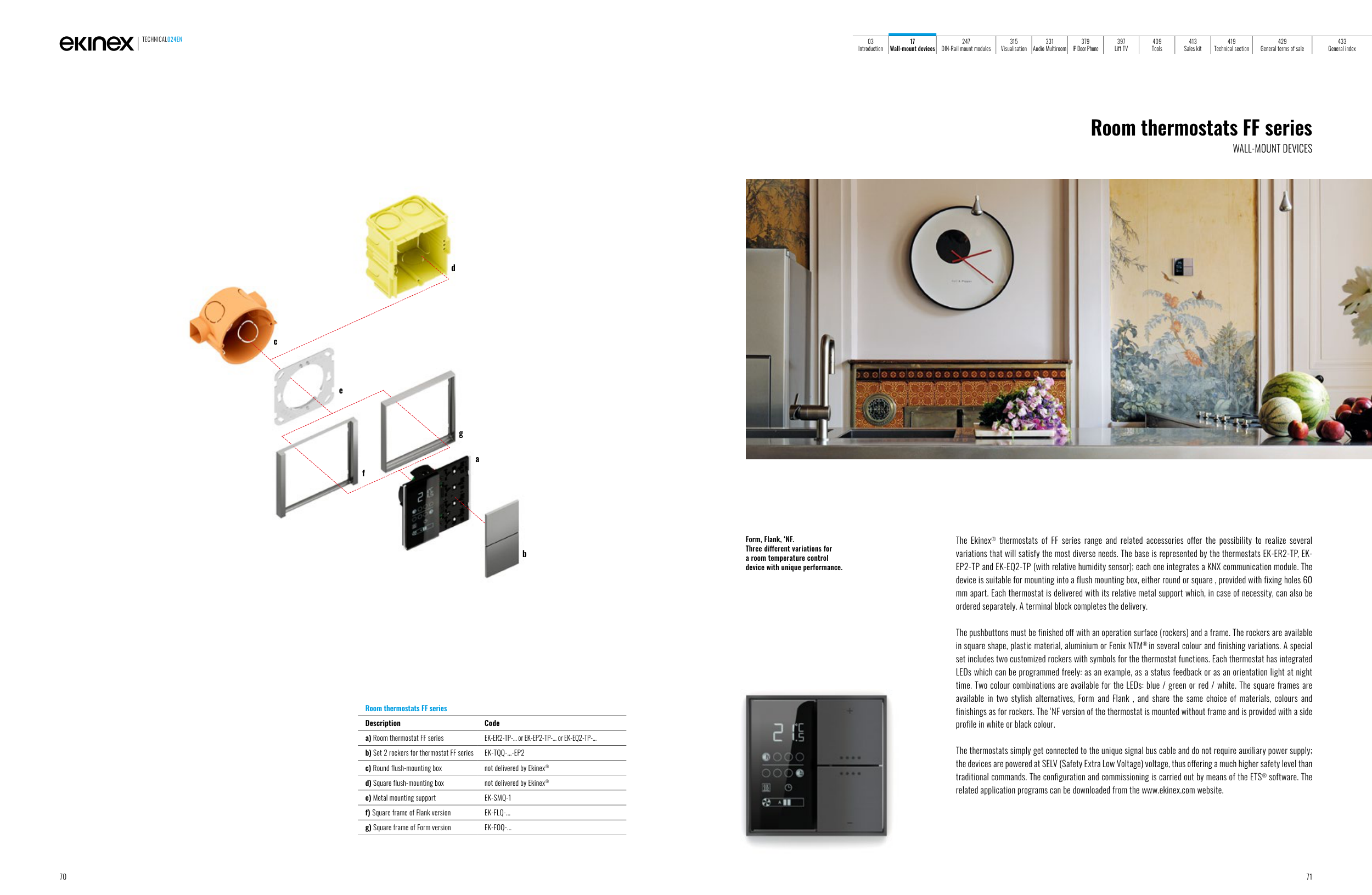

Room thermostats FF series
Description
Code
a) Room thermostat FF series
EK-ER2-TP-... or EK-EP2-TP-... or EK-EQ2-TP-...
b) Set 2 rockers for thermostat FF series
EK-TQQ-...-EP2
c) Round flush-mounting box
not delivered by Ekinex®
d) Square flush-mounting box
not delivered by Ekinex®
e) Metal mounting support
EK-SMQ-1
f) Square frame of Flank version
EK-FLQ-...
g) Square frame of Form version
EK-FOQ-...
The Ekinex® thermostats of FF series range and related accessories offer the possibility to realize several
variations that will satisfy the most diverse needs. The base is represented by the thermostats EK-ER2-TP, EK-
EP2-TP and EK-EQ2-TP (with relative humidity sensor); each one integrates a KNX communication module. The
device is suitable for mounting into a flush mounting box, either round or square , provided with fixing holes 60
mm apart. Each thermostat is delivered with its relative metal support which, in case of necessity, can also be
ordered separately. A terminal block completes the delivery.
The pushbuttons must be finished off with an operation surface (rockers) and a frame. The rockers are available
in square shape, plastic material, aluminium or Fenix NTM® in several colour and finishing variations. A special
set includes two customized rockers with symbols for the thermostat functions. Each thermostat has integrated
LEDs which can be programmed freely: as an example, as a status feedback or as an orientation light at night
time. Two colour combinations are available for the LEDs: blue / green or red / white. The square frames are
available in two stylish alternatives, Form and Flank , and share the same choice of materials, colours and
finishings as for rockers. The ‘NF version of the thermostat is mounted without frame and is provided with a side
profile in white or black colour.
The thermostats simply get connected to the unique signal bus cable and do not require auxiliary power supply;
the devices are powered at SELV (Safety Extra Low Voltage) voltage, thus offering a much higher safety level than
traditional commands. The configuration and commissioning is carried out by means of the ETS® software. The
related application programs can be downloaded from the www.ekinex.com website.
Form, Flank, ‘NF.
Three different variations for
a room temperature control
device with unique performance.
Room thermostats FF series
WALL-MOUNT DEVICES
a
b
e
d
g
c
f
