Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKEH2TP##.knxprod
(## = version, downloadable from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Description
The 6-fold pushbutton of Ekinex® FF series commands loads on/off switching,
controls the dimming of lighting devices, controls motor drives for shutters or
executes any other programmable command and control function. Thanks to the
integrated temperature sensor, the pushbutton can send the room temperature value
on the bus to other KNX devices. The LEDs can be chosen in the colour combinations
blue / green or white / red. The device integrates a KNX bus communication module
and is intended for mounting onto a wall mounting box; it is supplied by a SELV
voltage directly from the KNX bus and does not require any auxiliary power supply.
Main features
• 6-fold (possibility to configure up to 12 independent functions)
• 4 freely programmable LEDs for each channel
• 2 colour combination available for the LEDs (blue/green or red/white)
• Integrated temperature sensor
• Plastic casing
• Wall-mounting installation on round,square or rectangular wall box
• Connection to bus line with KNX terminal block
• Rear programming pushbutton and LED
• IP20 protection degree (installed)
• Weight 75 g (with mounting support)
Technical data
• 30 Vdc power supply through KNX bus
• Current consumption from bus < 15 mA
Delivery
Delivery includes a terminal block for connection to the bus, a metal support for
installation onto round or square mounting box (fixing holes 60 mm apart) or
rectangular mounting box (fixing holes 83,5 mm apart) and two pairs of fixing
screws.
Accessories
The following accessories are available to be ordered separately:
• square rockers
• rectangular frame Form or Flank version
Order information
Code
LED colours
Mounting
EK-EH2-TP
blue / green
with rectangular frame Form
or Flank version
EK-EH2-TP-RW
red / white
Dimensions [mm]
122
78
43
19
12.5
6.5

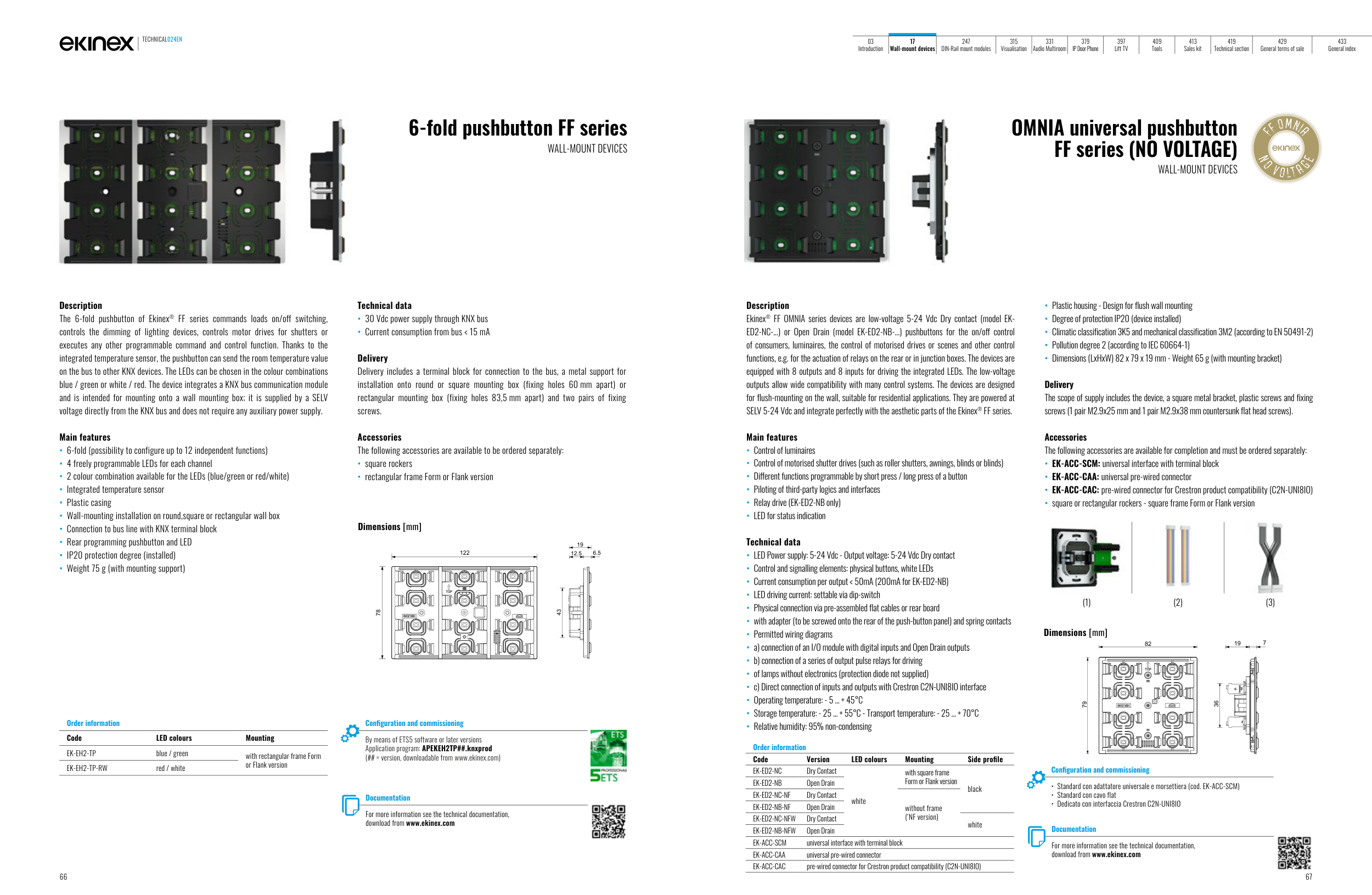

6-fold pushbutton FF series
WALL-MOUNT DEVICES
Description
Ekinex® FF OMNIA series devices are low-voltage 5-24 Vdc Dry contact (model EK-
ED2-NC-...) or Open Drain (model EK-ED2-NB-...) pushbuttons for the on/off control
of consumers, luminaires, the control of motorised drives or scenes and other control
functions, e.g. for the actuation of relays on the rear or in junction boxes. The devices are
equipped with 8 outputs and 8 inputs for driving the integrated LEDs. The low-voltage
outputs allow wide compatibility with many control systems. The devices are designed
for flush-mounting on the wall, suitable for residential applications. They are powered at
SELV 5-24 Vdc and integrate perfectly with the aesthetic parts of the Ekinex® FF series.
Main features
• Control of luminaires
• Control of motorised shutter drives (such as roller shutters, awnings, blinds or blinds)
• Different functions programmable by short press / long press of a button
• Piloting of third-party logics and interfaces
• Relay drive (EK-ED2-NB only)
• LED for status indication
Technical data
• LED Power supply: 5-24 Vdc - Output voltage: 5-24 Vdc Dry contact
• Control and signalling elements: physical buttons, white LEDs
• Current consumption per output < 50mA (200mA for EK-ED2-NB)
• LED driving current: settable via dip-switch
• Physical connection via pre-assembled flat cables or rear board
• with adapter (to be screwed onto the rear of the push-button panel) and spring contacts
• Permitted wiring diagrams
• a) connection of an I/O module with digital inputs and Open Drain outputs
• b) connection of a series of output pulse relays for driving
• of lamps without electronics (protection diode not supplied)
• c) Direct connection of inputs and outputs with Crestron C2N-UNI8IO interface
• Operating temperature: - 5 ... + 45°C
• Storage temperature: - 25 ... + 55°C - Transport temperature: - 25 ... + 70°C
• Relative humidity: 95% non-condensing
• Plastic housing - Design for flush wall mounting
• Degree of protection IP20 (device installed)
• Climatic classification 3K5 and mechanical classification 3M2 (according to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Dimensions (LxHxW) 82 x 79 x 19 mm - Weight 65 g (with mounting bracket)
Delivery
The scope of supply includes the device, a square metal bracket, plastic screws and fixing
screws (1 pair M2.9x25 mm and 1 pair M2.9x38 mm countersunk flat head screws).
Accessories
The following accessories are available for completion and must be ordered separately:
• EK-ACC-SCM: universal interface with terminal block
• EK-ACC-CAA: universal pre-wired connector
• EK-ACC-CAC: pre-wired connector for Crestron product compatibility (C2N-UNI8IO)
• square or rectangular rockers - square frame Form or Flank version
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Version
LED colours
Mounting
Side profile
EK-ED2-NC
Dry Contact
white
with square frame
Form or Flank version
black
EK-ED2-NB
Open Drain
EK-ED2-NC-NF
Dry Contact
without frame
(‘NF version)
EK-ED2-NB-NF
Open Drain
EK-ED2-NC-NFW
Dry Contact
white
EK-ED2-NB-NFW
Open Drain
EK-ACC-SCM
universal interface with terminal block
EK-ACC-CAA
universal pre-wired connector
EK-ACC-CAC
pre-wired connector for Crestron product compatibility (C2N-UNI8IO)
Configuration and commissioning
• Standard con adattatore universale e morsettiera (cod. EK-ACC-SCM)
• Standard con cavo flat
• Dedicato con interfaccia Crestron C2N-UNI8IO
OMNIA universal pushbutton
FF series (NO VOLTAGE)
WALL-MOUNT DEVICES
Dimensions [mm]
82
79
36
19
7
(1)
(2)
(3)
TECHNICAL024EN
66
67
03
