Description
The 4-fold pushbutton of Ekinex® FF series commands loads on/off switching,
controls the dimming of lighting devices, controls motor drives for shutters or
executes any other programmable command and control function. Thanks to the
integrated temperature sensor, the pushbutton can work as a thermostat for a room
or a zone. The LEDs can be chosen in the colour combinations blue / green or white
/ red. The device integrates a KNX bus communication module and is intended for
mounting onto a wall mounting box; it is supplied by a SELV voltage directly from the
KNX bus and does not require any auxiliary power supply.
Main features
• 4-fold (possibility to configure up to 8 independent functions)
• 4 freely programmable LEDs for each channel
• 2 colour combination available for the LEDs (blue/green or red/white)
• Integrated temperature sensor
• Room thermostat function
• Plastic casing
• Wall-mounting installation on round or square wall box
• Connection to bus line with KNX terminal block
• Frontal programming pushbutton and LED
• IP20 protection degree (installed)
• Weight 80 g (with mounting support)
Technical data
• 30 Vdc power supply through KNX bus
• Current consumption from bus < 15 mA
Delivery
Delivery includes a terminal block for connection to the bus, a metal support for
installation onto round or square mounting box (fixing holes 60 mm apart) and two
pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• square or rectangular rockers
• square frame Form or Flank version

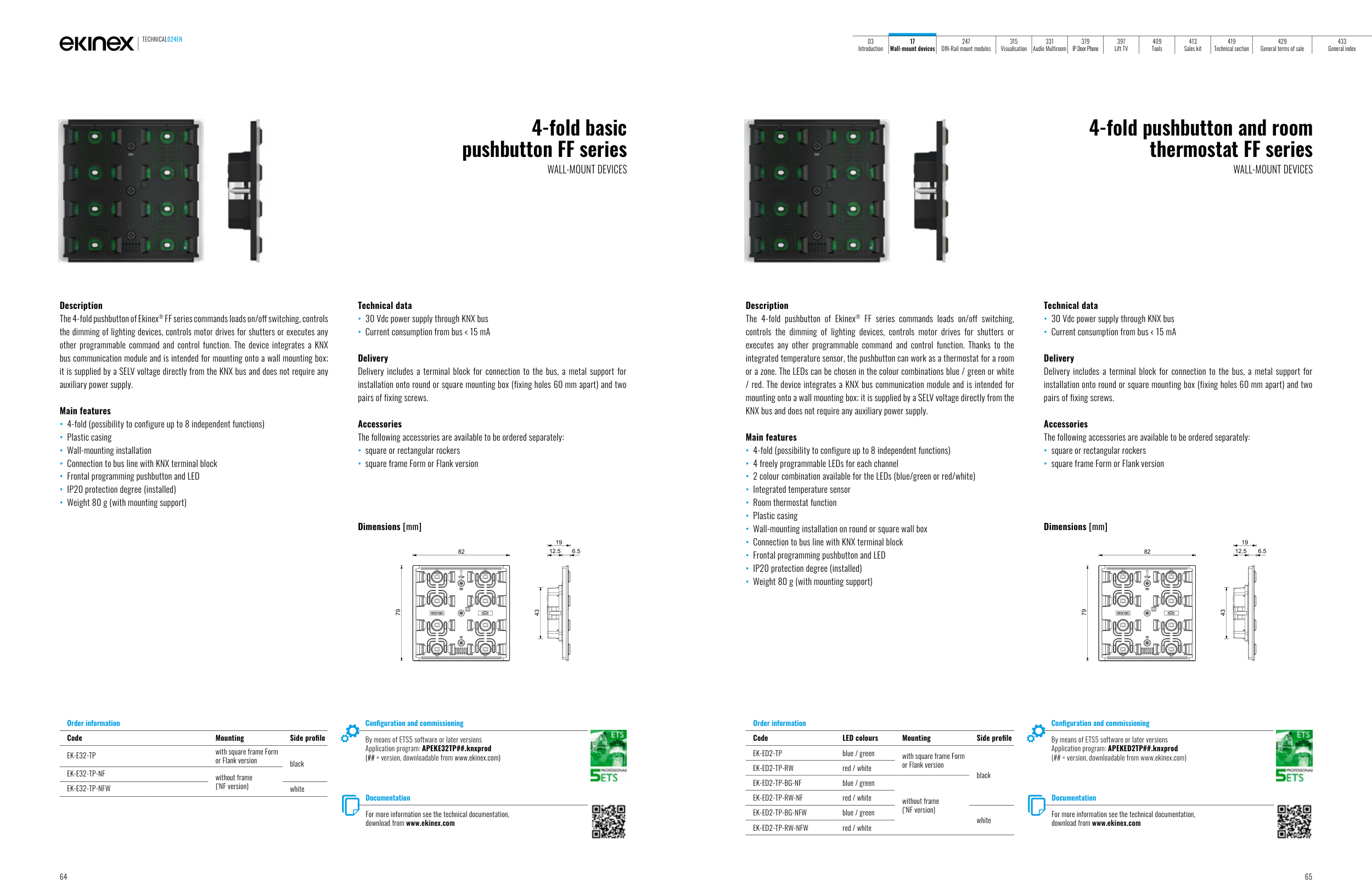

4-fold basic
pushbutton FF series
WALL-MOUNT DEVICES
Description
The 4-fold pushbutton of Ekinex® FF series commands loads on/off switching, controls
the dimming of lighting devices, controls motor drives for shutters or executes any
other programmable command and control function. The device integrates a KNX
bus communication module and is intended for mounting onto a wall mounting box;
it is supplied by a SELV voltage directly from the KNX bus and does not require any
auxiliary power supply.
Main features
• 4-fold (possibility to configure up to 8 independent functions)
• Plastic casing
• Wall-mounting installation
• Connection to bus line with KNX terminal block
• Frontal programming pushbutton and LED
• IP20 protection degree (installed)
• Weight 80 g (with mounting support)
Technical data
• 30 Vdc power supply through KNX bus
• Current consumption from bus < 15 mA
Delivery
Delivery includes a terminal block for connection to the bus, a metal support for
installation onto round or square mounting box (fixing holes 60 mm apart) and two
pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• square or rectangular rockers
• square frame Form or Flank version
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKE32TP##.knxprod
(## = version, downloadable from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Mounting
Side profile
EK-E32-TP
with square frame Form
or Flank version
black
EK-E32-TP-NF
without frame
(‘NF version)
EK-E32-TP-NFW
white
Dimensions [mm]
82
79
43
19
12.5
6.5
4-fold pushbutton and room
thermostat FF series
WALL-MOUNT DEVICES
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKED2TP##.knxprod
(## = version, downloadable from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
LED colours
Mounting
Side profile
EK-ED2-TP
blue / green
with square frame Form
or Flank version
black
EK-ED2-TP-RW
red / white
EK-ED2-TP-BG-NF
blue / green
without frame
(‘NF version)
EK-ED2-TP-RW-NF
red / white
EK-ED2-TP-BG-NFW
blue / green
white
EK-ED2-TP-RW-NFW
red / white
Dimensions [mm]
82
79
43
19
12.5
6.5
