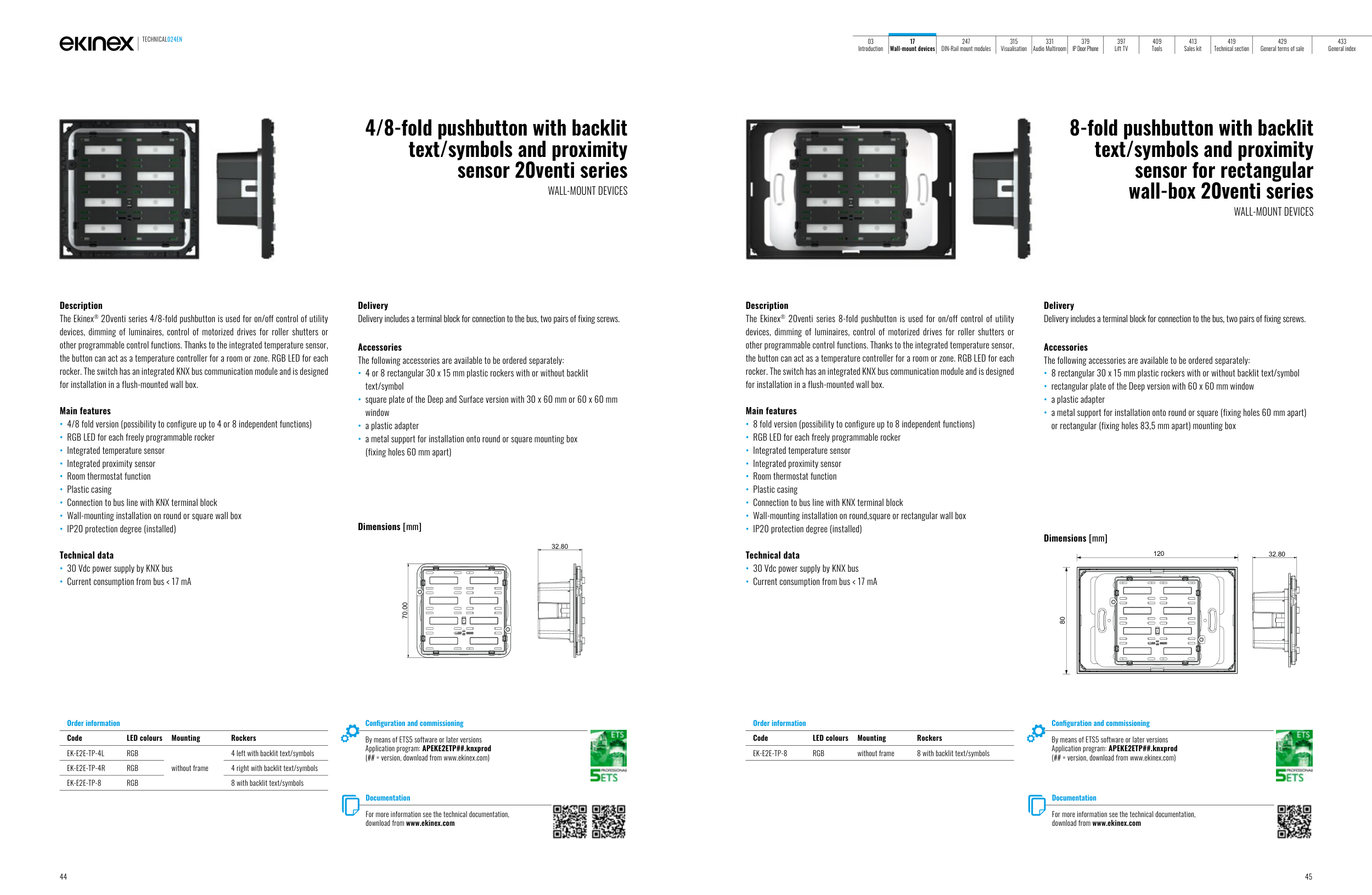

8-fold pushbutton with backlit
text/symbols and proximity
sensor for rectangular
wall-box 20venti series
WALL-MOUNT DEVICES
Description
The Ekinex® 20venti series 8-fold pushbutton is used for on/off control of utility
devices, dimming of luminaires, control of motorized drives for roller shutters or
other programmable control functions. Thanks to the integrated temperature sensor,
the button can act as a temperature controller for a room or zone. RGB LED for each
rocker. The switch has an integrated KNX bus communication module and is designed
for installation in a flush-mounted wall box.
Main features
• 8 fold version (possibility to configure up to 8 independent functions)
• RGB LED for each freely programmable rocker
• Integrated temperature sensor
• Integrated proximity sensor
• Room thermostat function
• Plastic casing
• Connection to bus line with KNX terminal block
• Wall-mounting installation on round,square or rectangular wall box
• IP20 protection degree (installed)
Technical data
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 17 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• 8 rectangular 30 x 15 mm plastic rockers with or without backlit text/symbol
• rectangular plate of the Deep version with 60 x 60 mm window
• a plastic adapter
• a metal support for installation onto round or square (fixing holes 60 mm apart)
or rectangular (fixing holes 83,5 mm apart) mounting box
Order information
Code
LED colours
Mounting
Rockers
EK-E2E-TP-8
RGB
without frame
8 with backlit text/symbols
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKE2ETP##.knxprod
(## = version, download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
32.80
120
80
4/8-fold pushbutton with backlit
text/symbols and proximity
sensor 20venti series
WALL-MOUNT DEVICES
Description
The Ekinex® 20venti series 4/8-fold pushbutton is used for on/off control of utility
devices, dimming of luminaires, control of motorized drives for roller shutters or
other programmable control functions. Thanks to the integrated temperature sensor,
the button can act as a temperature controller for a room or zone. RGB LED for each
rocker. The switch has an integrated KNX bus communication module and is designed
for installation in a flush-mounted wall box.
Main features
• 4/8 fold version (possibility to configure up to 4 or 8 independent functions)
• RGB LED for each freely programmable rocker
• Integrated temperature sensor
• Integrated proximity sensor
• Room thermostat function
• Plastic casing
• Connection to bus line with KNX terminal block
• Wall-mounting installation on round or square wall box
• IP20 protection degree (installed)
Technical data
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 17 mA
Delivery
Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• 4 or 8 rectangular 30 x 15 mm plastic rockers with or without backlit
text/symbol
• square plate of the Deep and Surface version with 30 x 60 mm or 60 x 60 mm
window
• a plastic adapter
• a metal support for installation onto round or square mounting box
(fixing holes 60 mm apart)
Dimensions [mm]
32.80
70.00
Order information
Code
LED colours
Mounting
Rockers
EK-E2E-TP-4L
RGB
without frame
4 left with backlit text/symbols
EK-E2E-TP-4R
RGB
4 right with backlit text/symbols
EK-E2E-TP-8
RGB
8 with backlit text/symbols
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKE2ETP##.knxprod
(## = version, download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
