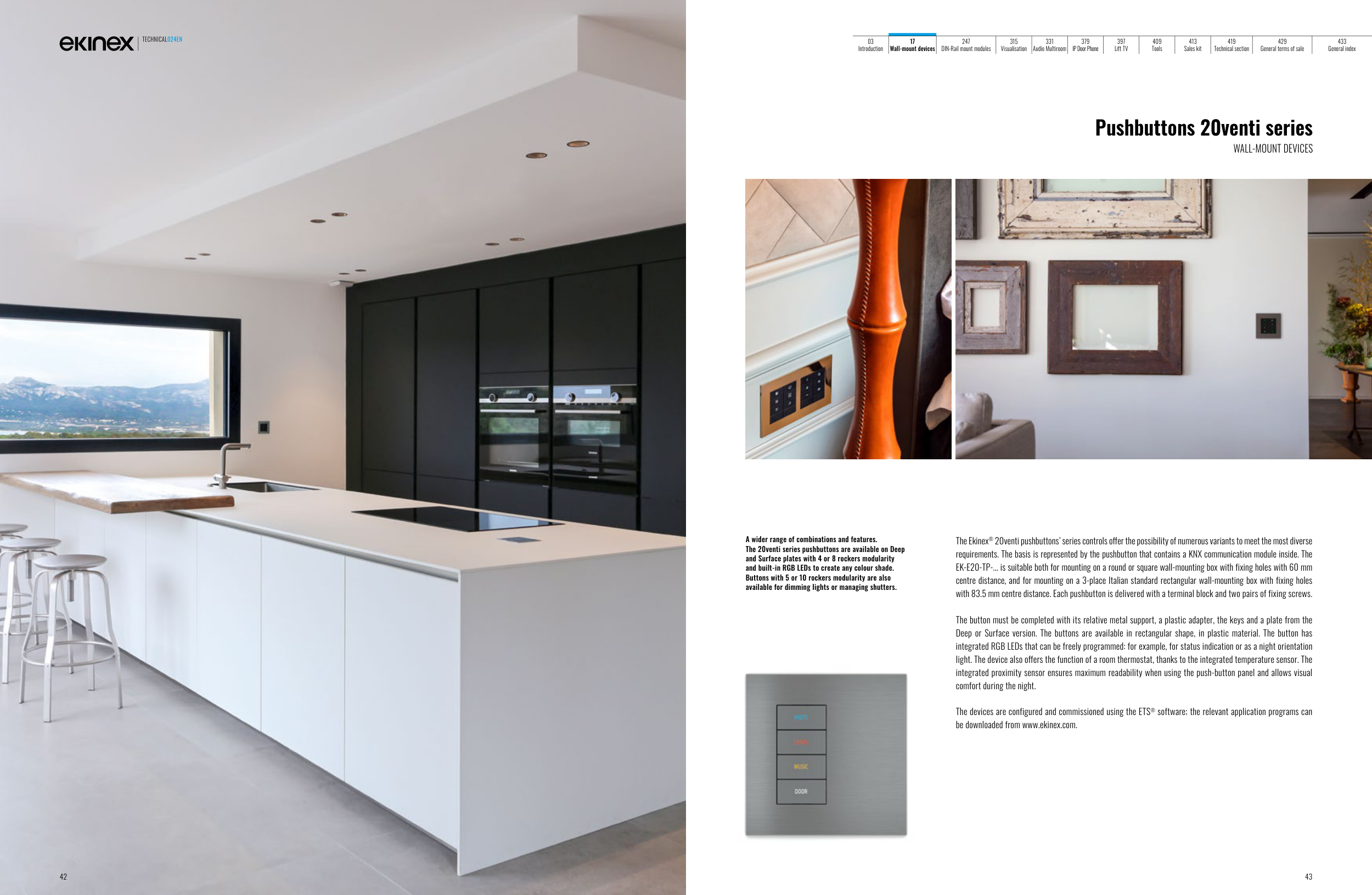

Pushbuttons 20venti series
WALL-MOUNT DEVICES
A wider range of combinations and features.
The 20venti series pushbuttons are available on Deep
and Surface plates with 4 or 8 rockers modularity
and built-in RGB LEDs to create any colour shade.
Buttons with 5 or 10 rockers modularity are also
available for dimming lights or managing shutters.
The Ekinex® 20venti pushbuttons’ series controls offer the possibility of numerous variants to meet the most diverse
requirements. The basis is represented by the pushbutton that contains a KNX communication module inside. The
EK-E20-TP-... is suitable both for mounting on a round or square wall-mounting box with fixing holes with 60 mm
centre distance, and for mounting on a 3-place Italian standard rectangular wall-mounting box with fixing holes
with 83.5 mm centre distance. Each pushbutton is delivered with a terminal block and two pairs of fixing screws.
The button must be completed with its relative metal support, a plastic adapter, the keys and a plate from the
Deep or Surface version. The buttons are available in rectangular shape, in plastic material. The button has
integrated RGB LEDs that can be freely programmed: for example, for status indication or as a night orientation
light. The device also offers the function of a room thermostat, thanks to the integrated temperature sensor. The
integrated proximity sensor ensures maximum readability when using the push-button panel and allows visual
comfort during the night.
The devices are configured and commissioned using the ETS® software; the relevant application programs can
be downloaded from www.ekinex.com.
