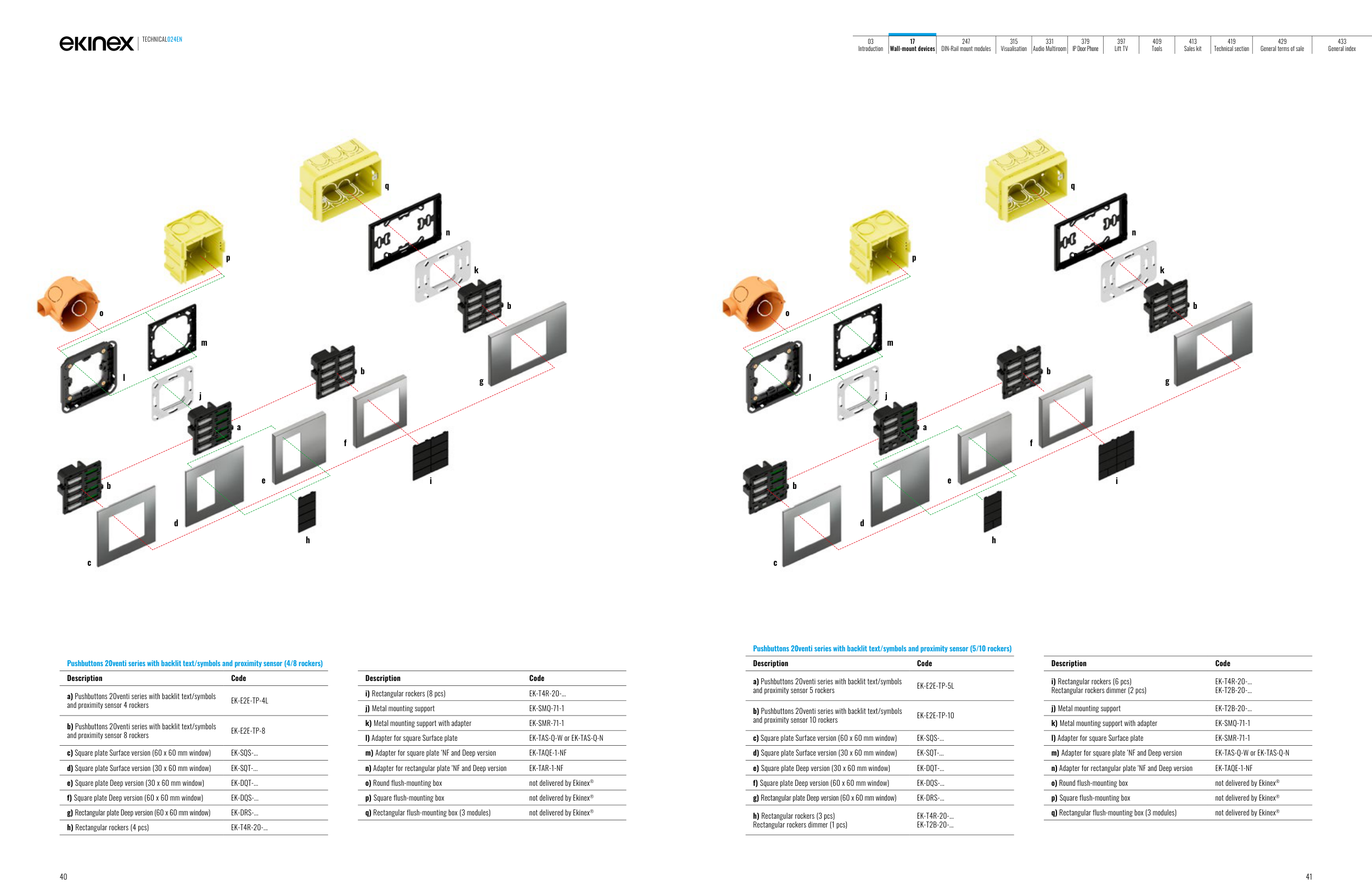

Pushbuttons 20venti series with backlit text/symbols and proximity sensor (4/8 rockers)
Description
Code
a) Pushbuttons 20venti series with backlit text/symbols
and proximity sensor 4 rockers
EK-E2E-TP-4L
b) Pushbuttons 20venti series with backlit text/symbols
and proximity sensor 8 rockers
EK-E2E-TP-8
c) Square plate Surface version (60 x 60 mm window)
EK-SQS-...
d) Square plate Surface version (30 x 60 mm window)
EK-SQT-...
e) Square plate Deep version (30 x 60 mm window)
EK-DQT-...
f) Square plate Deep version (60 x 60 mm window)
EK-DQS-...
g) Rectangular plate Deep version (60 x 60 mm window)
EK-DRS-...
h) Rectangular rockers (4 pcs)
EK-T4R-20-...
Description
Code
i) Rectangular rockers (8 pcs)
EK-T4R-20-...
j) Metal mounting support
EK-SMQ-71-1
k) Metal mounting support with adapter
EK-SMR-71-1
l) Adapter for square Surface plate
EK-TAS-Q-W or EK-TAS-Q-N
m) Adapter for square plate ‘NF and Deep version
EK-TAQE-1-NF
n) Adapter for rectangular plate ‘NF and Deep version
EK-TAR-1-NF
o) Round flush-mounting box
not delivered by Ekinex®
p) Square flush-mounting box
not delivered by Ekinex®
q) Rectangular flush-mounting box (3 modules)
not delivered by Ekinex®
Pushbuttons 20venti series with backlit text/symbols and proximity sensor (5/10 rockers)
Description
Code
a) Pushbuttons 20venti series with backlit text/symbols
and proximity sensor 5 rockers
EK-E2E-TP-5L
b) Pushbuttons 20venti series with backlit text/symbols
and proximity sensor 10 rockers
EK-E2E-TP-10
c) Square plate Surface version (60 x 60 mm window)
EK-SQS-...
d) Square plate Surface version (30 x 60 mm window)
EK-SQT-...
e) Square plate Deep version (30 x 60 mm window)
EK-DQT-...
f) Square plate Deep version (60 x 60 mm window)
EK-DQS-...
g) Rectangular plate Deep version (60 x 60 mm window)
EK-DRS-...
h) Rectangular rockers (3 pcs)
Rectangular rockers dimmer (1 pcs)
EK-T4R-20-...
EK-T2B-20-...
Description
Code
i) Rectangular rockers (6 pcs)
Rectangular rockers dimmer (2 pcs)
EK-T4R-20-...
EK-T2B-20-...
j) Metal mounting support
EK-T2B-20-...
k) Metal mounting support with adapter
EK-SMQ-71-1
l) Adapter for square Surface plate
EK-SMR-71-1
m) Adapter for square plate ‘NF and Deep version
EK-TAS-Q-W or EK-TAS-Q-N
n) Adapter for rectangular plate ‘NF and Deep version
EK-TAQE-1-NF
o) Round flush-mounting box
not delivered by Ekinex®
p) Square flush-mounting box
not delivered by Ekinex®
q) Rectangular flush-mounting box (3 modules)
not delivered by Ekinex®
g
g
f
f
e
e
l
l
i
i
k
k
b
b
a
a
c
c
d
d
h
h
j
j
m
m
o
o
n
n
o
o
p
p
q
q
b
b
b
b
