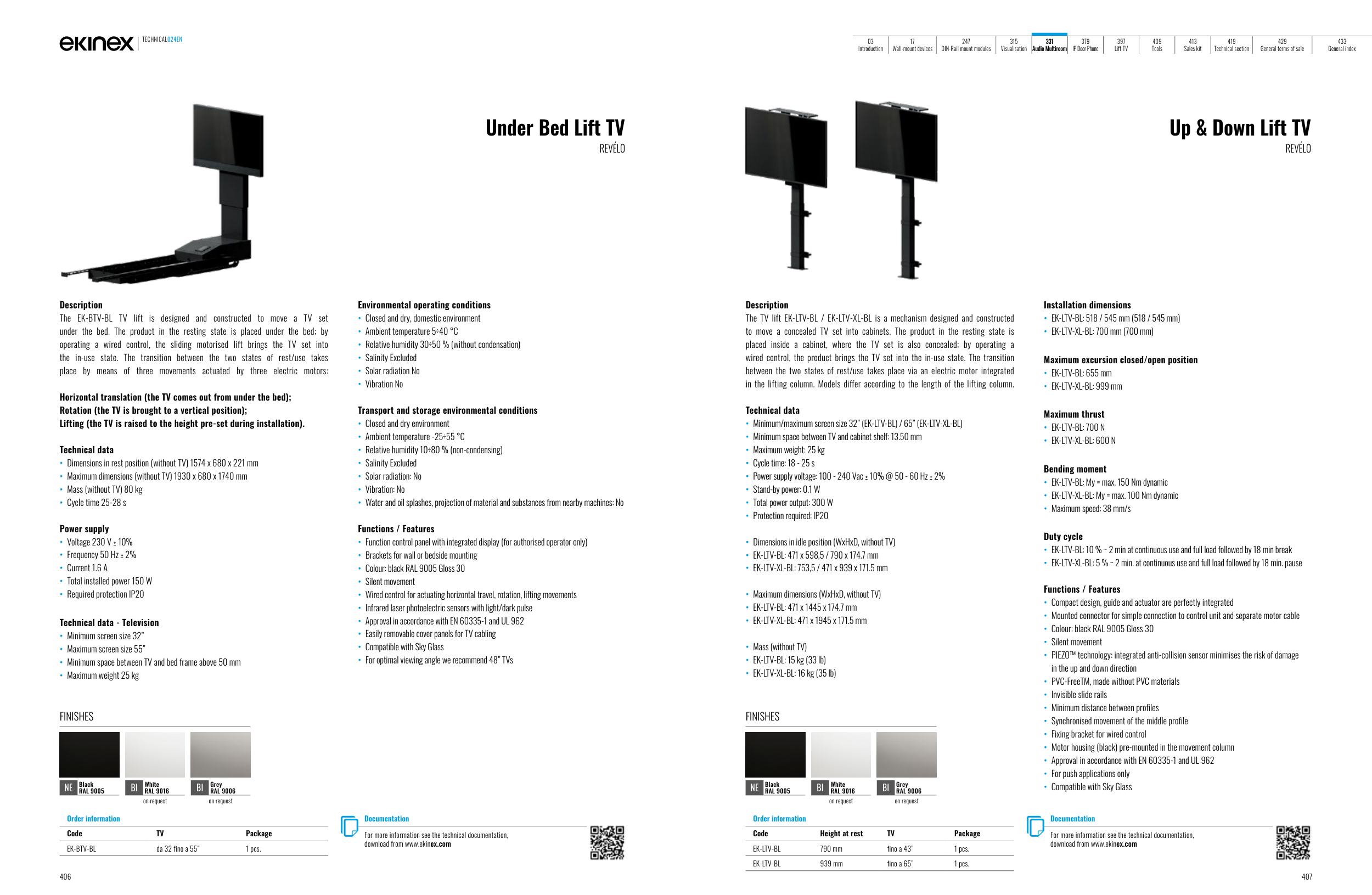

Under Bed Lift TV
REVÉLO
Description
The EK-BTV-BL TV lift is designed and constructed to move a TV set
under the bed. The product in the resting state is placed under the bed; by
operating a wired control, the sliding motorised lift brings the TV set into
the in-use state. The transition between the two states of rest/use takes
place by means of three movements actuated by three electric motors:
Horizontal translation (the TV comes out from under the bed);
Rotation (the TV is brought to a vertical position);
Lifting (the TV is raised to the height pre-set during installation).
Technical data
• Dimensions in rest position (without TV) 1574 x 680 x 221 mm
• Maximum dimensions (without TV) 1930 x 680 x 1740 mm
• Mass (without TV) 80 kg
• Cycle time 25-28 s
Power supply
• Voltage 230 V ± 10%
• Frequency 50 Hz ± 2%
• Current 1.6 A
• Total installed power 150 W
• Required protection IP20
Technical data - Television
• Minimum screen size 32”
• Maximum screen size 55”
• Minimum space between TV and bed frame above 50 mm
• Maximum weight 25 kg
Environmental operating conditions
• Closed and dry, domestic environment
• Ambient temperature 5÷40 °C
• Relative humidity 30÷50 % (without condensation)
• Salinity Excluded
• Solar radiation No
• Vibration No
Transport and storage environmental conditions
• Closed and dry environment
• Ambient temperature -25÷55 °C
• Relative humidity 10÷80 % (non-condensing)
• Salinity Excluded
• Solar radiation: No
• Vibration: No
• Water and oil splashes, projection of material and substances from nearby machines: No
Functions / Features
• Function control panel with integrated display (for authorised operator only)
• Brackets for wall or bedside mounting
• Colour: black RAL 9005 Gloss 30
• Silent movement
• Wired control for actuating horizontal travel, rotation, lifting movements
• Infrared laser photoelectric sensors with light/dark pulse
• Approval in accordance with EN 60335-1 and UL 962
• Easily removable cover panels for TV cabling
• Compatible with Sky Glass
• For optimal viewing angle we recommend 48” TVs
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
TV
Package
EK-BTV-BL
da 32 fino a 55”
1 pcs.
FINISHES
BI
White
RAL 9016
on request
NE
Black
RAL 9005
BI
Grey
RAL 9006
on request
Up & Down Lift TV
REVÉLO
Description
The TV lift EK-LTV-BL / EK-LTV-XL-BL is a mechanism designed and constructed
to move a concealed TV set into cabinets. The product in the resting state is
placed inside a cabinet, where the TV set is also concealed; by operating a
wired control, the product brings the TV set into the in-use state. The transition
between the two states of rest/use takes place via an electric motor integrated
in the lifting column. Models differ according to the length of the lifting column.
Technical data
• Minimum/maximum screen size 32” (EK-LTV-BL) / 65” (EK-LTV-XL-BL)
• Minimum space between TV and cabinet shelf: 13.50 mm
• Maximum weight: 25 kg
• Cycle time: 18 - 25 s
• Power supply voltage: 100 - 240 Vac ± 10% @ 50 - 60 Hz ± 2%
• Stand-by power: 0.1 W
• Total power output: 300 W
• Protection required: IP20
• Dimensions in idle position (WxHxD, without TV)
• EK-LTV-BL: 471 x 598,5 / 790 x 174.7 mm
• EK-LTV-XL-BL: 753,5 / 471 x 939 x 171.5 mm
• Maximum dimensions (WxHxD, without TV)
• EK-LTV-BL: 471 x 1445 x 174.7 mm
• EK-LTV-XL-BL: 471 x 1945 x 171.5 mm
• Mass (without TV)
• EK-LTV-BL: 15 kg (33 lb)
• EK-LTV-XL-BL: 16 kg (35 lb)
Installation dimensions
• EK-LTV-BL: 518 / 545 mm (518 / 545 mm)
• EK-LTV-XL-BL: 700 mm (700 mm)
Maximum excursion closed/open position
• EK-LTV-BL: 655 mm
• EK-LTV-XL-BL: 999 mm
Maximum thrust
• EK-LTV-BL: 700 N
• EK-LTV-XL-BL: 600 N
Bending moment
• EK-LTV-BL: My = max. 150 Nm dynamic
• EK-LTV-XL-BL: My = max. 100 Nm dynamic
• Maximum speed: 38 mm/s
Duty cycle
• EK-LTV-BL: 10 % ~ 2 min at continuous use and full load followed by 18 min break
• EK-LTV-XL-BL: 5 % ~ 2 min. at continuous use and full load followed by 18 min. pause
Functions / Features
• Compact design, guide and actuator are perfectly integrated
• Mounted connector for simple connection to control unit and separate motor cable
• Colour: black RAL 9005 Gloss 30
• Silent movement
• PIEZO™ technology: integrated anti-collision sensor minimises the risk of damage
in the up and down direction
• PVC-FreeTM, made without PVC materials
• Invisible slide rails
• Minimum distance between profiles
• Synchronised movement of the middle profile
• Fixing bracket for wired control
• Motor housing (black) pre-mounted in the movement column
• Approval in accordance with EN 60335-1 and UL 962
• For push applications only
• Compatible with Sky Glass
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Height at rest
TV
Package
EK-LTV-BL
790 mm
fino a 43”
1 pcs.
EK-LTV-BL
939 mm
fino a 65”
1 pcs.
FINISHES
BI
White
RAL 9016
on request
NE
Black
RAL 9005
BI
Grey
RAL 9006
on request
