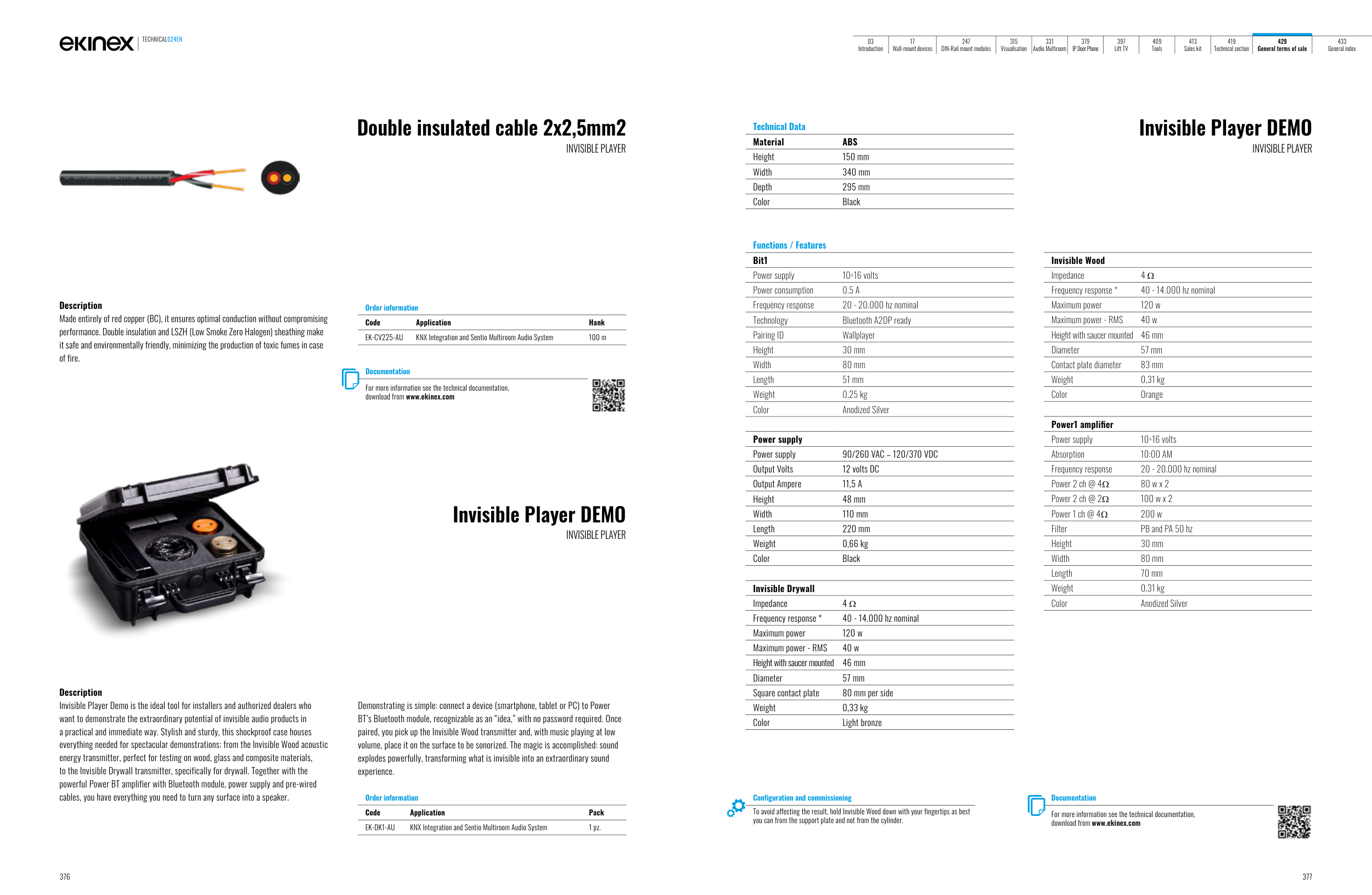

Double insulated cable 2x2,5mm2
INVISIBLE PLAYER
Invisible Player DEMO
INVISIBLE PLAYER
Description
Made entirely of red copper (BC), it ensures optimal conduction without compromising
performance. Double insulation and LSZH (Low Smoke Zero Halogen) sheathing make
it safe and environmentally friendly, minimizing the production of toxic fumes in case
of fire.
Description
Invisible Player Demo is the ideal tool for installers and authorized dealers who
want to demonstrate the extraordinary potential of invisible audio products in
a practical and immediate way. Stylish and sturdy, this shockproof case houses
everything needed for spectacular demonstrations: from the Invisible Wood acoustic
energy transmitter, perfect for testing on wood, glass and composite materials,
to the Invisible Drywall transmitter, specifically for drywall. Together with the
powerful Power BT amplifier with Bluetooth module, power supply and pre-wired
cables, you have everything you need to turn any surface into a speaker.
Order information
Code
Application
Hank
EK-CV225-AU
KNX Integration and Sentio Multiroom Audio System
100 m
Order information
Code
Application
Pack
EK-DK1-AU
KNX Integration and Sentio Multiroom Audio System
1 pz.
Demonstrating is simple: connect a device (smartphone, tablet or PC) to Power
BT’s Bluetooth module, recognizable as an “idea,” with no password required. Once
paired, you pick up the Invisible Wood transmitter and, with music playing at low
volume, place it on the surface to be sonorized. The magic is accomplished: sound
explodes powerfully, transforming what is invisible into an extraordinary sound
experience.
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Invisible Player DEMO
INVISIBLE PLAYER
Functions / Features
Bit1
Power supply
10÷16 volts
Power consumption
0.5 A
Frequency response
20 - 20.000 hz nominal
Technology
Bluetooth A2DP ready
Pairing ID
Wallplayer
Height
30 mm
Width
80 mm
Length
51 mm
Weight
0,25 kg
Color
Anodized Silver
Power supply
Power supply
90/260 VAC – 120/370 VDC
Output Volts
12 volts DC
Output Ampere
11,5 A
Height
48 mm
Width
110 mm
Length
220 mm
Weight
0,66 kg
Color
Black
Invisible Drywall
Impedance
4 Ω
Frequency response *
40 - 14.000 hz nominal
Maximum power
120 w
Maximum power - RMS
40 w
Height with saucer mounted
46 mm
Diameter
57 mm
Square contact plate
80 mm per side
Weight
0,33 kg
Color
Light bronze
Invisible Wood
Impedance
4 Ω
Frequency response *
40 - 14.000 hz nominal
Maximum power
120 w
Maximum power - RMS
40 w
Height with saucer mounted
46 mm
Diameter
57 mm
Contact plate diameter
83 mm
Weight
0,31 kg
Color
Orange
Power1 amplifier
Power supply
10÷16 volts
Absorption
10:00 AM
Frequency response
20 - 20.000 hz nominal
Power 2 ch @ 4Ω
80 w x 2
Power 2 ch @ 2Ω
100 w x 2
Power 1 ch @ 4Ω
200 w
Filter
PB and PA 50 hz
Height
30 mm
Width
80 mm
Length
70 mm
Weight
0,31 kg
Color
Anodized Silver
Technical Data
Material
ABS
Height
150 mm
Width
340 mm
Depth
295 mm
Color
Black
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
To avoid affecting the result, hold Invisible Wood down with your fingertips as best
you can from the support plate and not from the cylinder.
