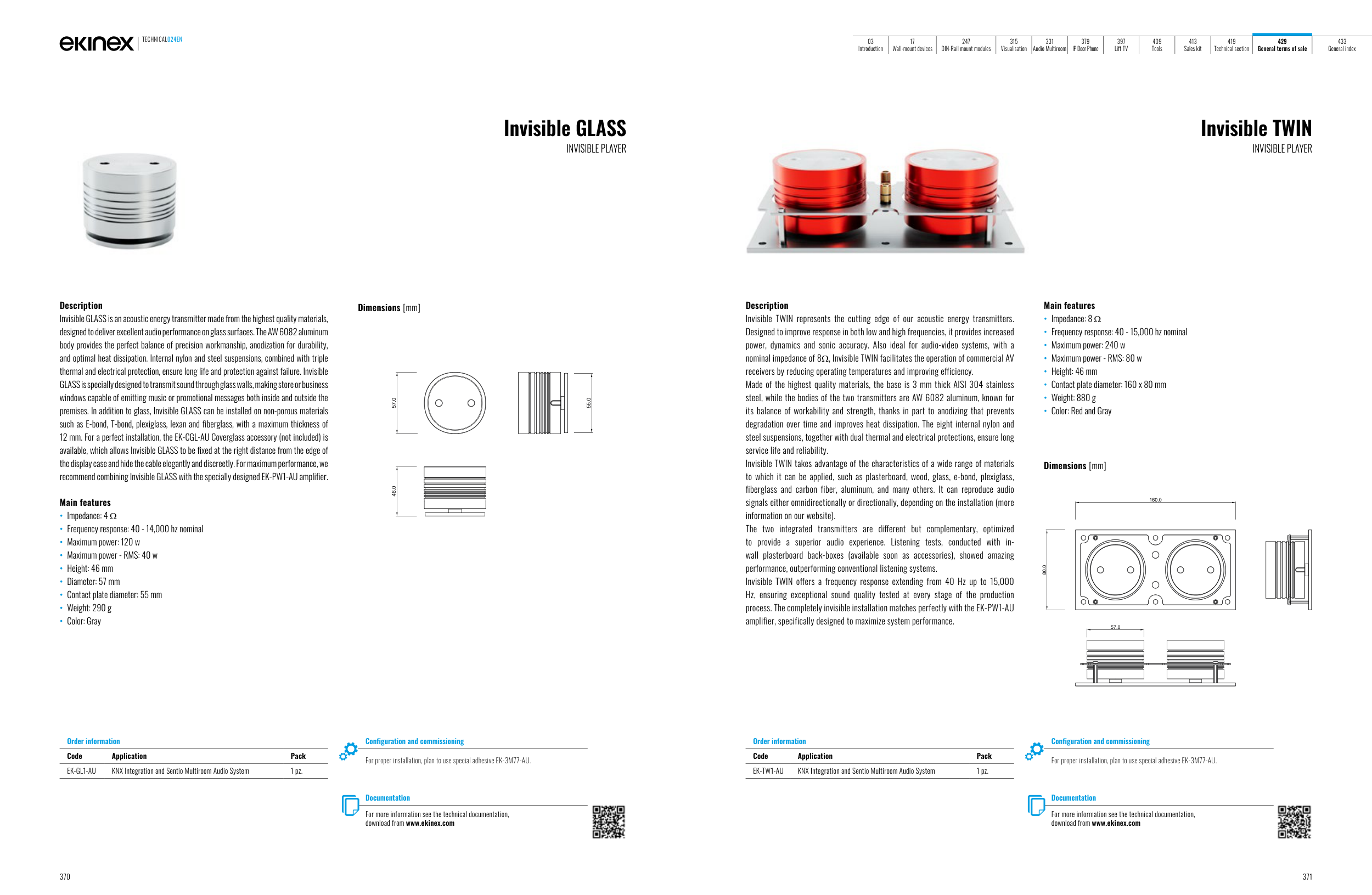

Invisible GLASS
INVISIBLE PLAYER
Description
Invisible GLASS is an acoustic energy transmitter made from the highest quality materials,
designed to deliver excellent audio performance on glass surfaces. The AW 6082 aluminum
body provides the perfect balance of precision workmanship, anodization for durability,
and optimal heat dissipation. Internal nylon and steel suspensions, combined with triple
thermal and electrical protection, ensure long life and protection against failure. Invisible
GLASS is specially designed to transmit sound through glass walls, making store or business
windows capable of emitting music or promotional messages both inside and outside the
premises. In addition to glass, Invisible GLASS can be installed on non-porous materials
such as E-bond, T-bond, plexiglass, lexan and fiberglass, with a maximum thickness of
12 mm. For a perfect installation, the EK-CGL-AU Coverglass accessory (not included) is
available, which allows Invisible GLASS to be fixed at the right distance from the edge of
the display case and hide the cable elegantly and discreetly. For maximum performance, we
recommend combining Invisible GLASS with the specially designed EK-PW1-AU amplifier.
Main features
• Impedance: 4 Ω
• Frequency response: 40 - 14,000 hz nominal
• Maximum power: 120 w
• Maximum power - RMS: 40 w
• Height: 46 mm
• Diameter: 57 mm
• Contact plate diameter: 55 mm
• Weight: 290 g
• Color: Gray
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
For proper installation, plan to use special adhesive EK-3M77-AU.
Order information
Code
Application
Pack
EK-GL1-AU
KNX Integration and Sentio Multiroom Audio System
1 pz.
57.0
46.0
55.0
Invisible TWIN
INVISIBLE PLAYER
Description
Invisible TWIN represents the cutting edge of our acoustic energy transmitters.
Designed to improve response in both low and high frequencies, it provides increased
power, dynamics and sonic accuracy. Also ideal for audio-video systems, with a
nominal impedance of 8Ω, Invisible TWIN facilitates the operation of commercial AV
receivers by reducing operating temperatures and improving efficiency.
Made of the highest quality materials, the base is 3 mm thick AISI 304 stainless
steel, while the bodies of the two transmitters are AW 6082 aluminum, known for
its balance of workability and strength, thanks in part to anodizing that prevents
degradation over time and improves heat dissipation. The eight internal nylon and
steel suspensions, together with dual thermal and electrical protections, ensure long
service life and reliability.
Invisible TWIN takes advantage of the characteristics of a wide range of materials
to which it can be applied, such as plasterboard, wood, glass, e-bond, plexiglass,
fiberglass and carbon fiber, aluminum, and many others. It can reproduce audio
signals either omnidirectionally or directionally, depending on the installation (more
information on our website).
The two integrated transmitters are different but complementary, optimized
to provide a superior audio experience. Listening tests, conducted with in-
wall plasterboard back-boxes (available soon as accessories), showed amazing
performance, outperforming conventional listening systems.
Invisible TWIN offers a frequency response extending from 40 Hz up to 15,000
Hz, ensuring exceptional sound quality tested at every stage of the production
process. The completely invisible installation matches perfectly with the EK-PW1-AU
amplifier, specifically designed to maximize system performance.
Main features
• Impedance: 8 Ω
• Frequency response: 40 - 15,000 hz nominal
• Maximum power: 240 w
• Maximum power - RMS: 80 w
• Height: 46 mm
• Contact plate diameter: 160 x 80 mm
• Weight: 880 g
• Color: Red and Gray
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
For proper installation, plan to use special adhesive EK-3M77-AU.
Order information
Code
Application
Pack
EK-TW1-AU
KNX Integration and Sentio Multiroom Audio System
1 pz.
80.0
160.0
57.0
