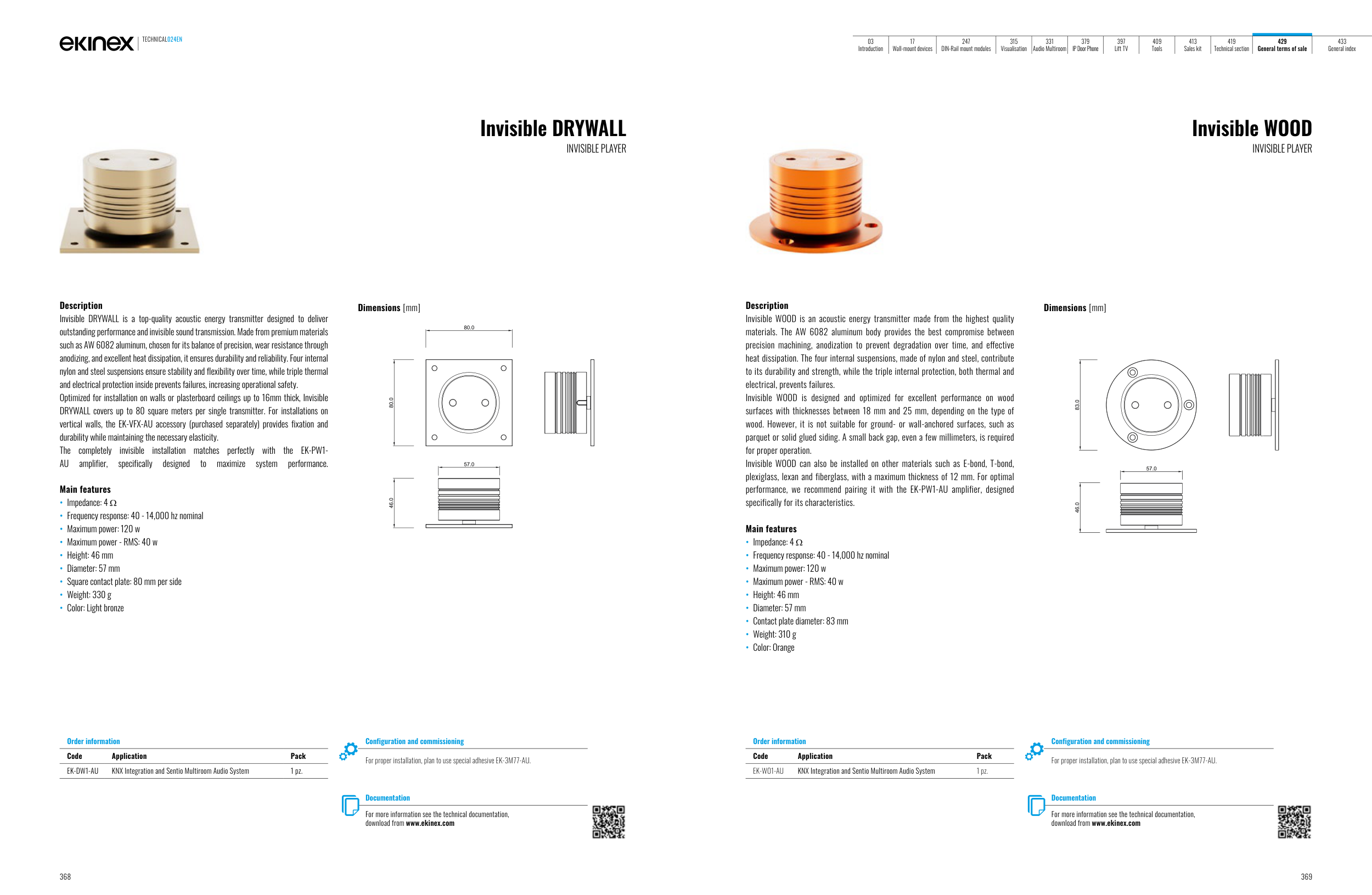

Invisible DRYWALL
INVISIBLE PLAYER
Description
Invisible DRYWALL is a top-quality acoustic energy transmitter designed to deliver
outstanding performance and invisible sound transmission. Made from premium materials
such as AW 6082 aluminum, chosen for its balance of precision, wear resistance through
anodizing, and excellent heat dissipation, it ensures durability and reliability. Four internal
nylon and steel suspensions ensure stability and flexibility over time, while triple thermal
and electrical protection inside prevents failures, increasing operational safety.
Optimized for installation on walls or plasterboard ceilings up to 16mm thick, Invisible
DRYWALL covers up to 80 square meters per single transmitter. For installations on
vertical walls, the EK-VFX-AU accessory (purchased separately) provides fixation and
durability while maintaining the necessary elasticity.
The completely invisible installation matches perfectly with the EK-PW1-
AU
amplifier,
specifically
designed
to
maximize
system
performance.
Main features
• Impedance: 4 Ω
• Frequency response: 40 - 14,000 hz nominal
• Maximum power: 120 w
• Maximum power - RMS: 40 w
• Height: 46 mm
• Diameter: 57 mm
• Square contact plate: 80 mm per side
• Weight: 330 g
• Color: Light bronze
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
For proper installation, plan to use special adhesive EK-3M77-AU.
Order information
Code
Application
Pack
EK-DW1-AU
KNX Integration and Sentio Multiroom Audio System
1 pz.
Invisible WOOD
INVISIBLE PLAYER
Description
Invisible WOOD is an acoustic energy transmitter made from the highest quality
materials. The AW 6082 aluminum body provides the best compromise between
precision machining, anodization to prevent degradation over time, and effective
heat dissipation. The four internal suspensions, made of nylon and steel, contribute
to its durability and strength, while the triple internal protection, both thermal and
electrical, prevents failures.
Invisible WOOD is designed and optimized for excellent performance on wood
surfaces with thicknesses between 18 mm and 25 mm, depending on the type of
wood. However, it is not suitable for ground- or wall-anchored surfaces, such as
parquet or solid glued siding. A small back gap, even a few millimeters, is required
for proper operation.
Invisible WOOD can also be installed on other materials such as E-bond, T-bond,
plexiglass, lexan and fiberglass, with a maximum thickness of 12 mm. For optimal
performance, we recommend pairing it with the EK-PW1-AU amplifier, designed
specifically for its characteristics.
Main features
• Impedance: 4 Ω
• Frequency response: 40 - 14,000 hz nominal
• Maximum power: 120 w
• Maximum power - RMS: 40 w
• Height: 46 mm
• Diameter: 57 mm
• Contact plate diameter: 83 mm
• Weight: 310 g
• Color: Orange
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
For proper installation, plan to use special adhesive EK-3M77-AU.
Order information
Code
Application
Pack
EK-WO1-AU
KNX Integration and Sentio Multiroom Audio System
1 pz.
