Connection 2-channel stereo on 4 Ω.
Single transmitter applied power: 80 W
Connection 2-channel stereo on 4 Ω.
Single transmitter applied power: 80 W
POWER 1
Amplifier
EK-PW1-AU
POWER 1
Amplifier
EK-PW1-AU
POWER 1
Amplifier
EK-PW1-AU
POWER 1
Amplifier
EK-PW1-AU
Acoustic energy
transmitters
EK-TW1-AU
Acoustic energy
transmitters
EK-TW1-AU
Connection 1 mono channel on 4 Ω.
Single transmitter applied power: 200 W
Connection 1 mono channel on 4 Ω.
Single transmitter applied power: 200 W
Sentio Streamer
EK-50S-AU
Sentio Streamer
EK-50S-AU
Acoustic energy
transmitters
EK-TW1-AU
Acoustic energy
transmitters
EK-TW1-AU

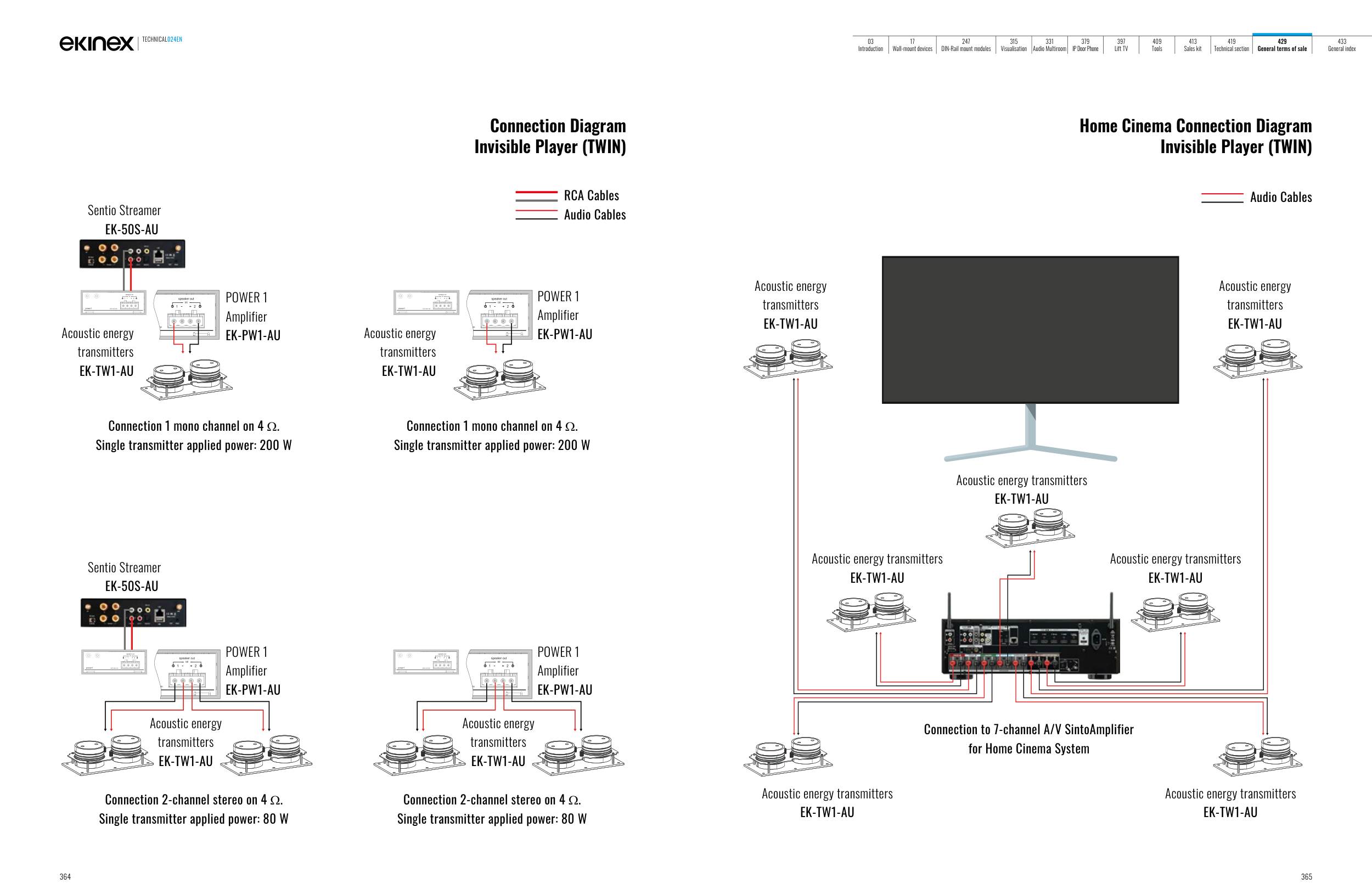

Connection Diagram
Invisible Player (TWIN)
RCA Cables
Audio Cables
Connection to 7-channel A/V SintoAmplifier
for Home Cinema System
Home Cinema Connection Diagram
Invisible Player (TWIN)
Acoustic energy transmitters
EK-TW1-AU
Acoustic energy
transmitters
EK-TW1-AU
Acoustic energy
transmitters
EK-TW1-AU
Acoustic energy transmitters
EK-TW1-AU
Acoustic energy transmitters
EK-TW1-AU
Acoustic energy transmitters
EK-TW1-AU
Acoustic energy transmitters
EK-TW1-AU
Audio Cables
