RCA Cables
Audio Cables
Acoustic energy
transmitters
EK-DW1-AU
EK-WO1-AU
EK-GL1-AU
Acoustic energy
transmitters
EK-DW1-AU
EK-WO1-AU
EK-GL1-AU
Acoustic energy
transmitters
EK-DW1-AU
EK-WO1-AU
EK-GL1-AU
Connection 1 mono channel on 4 Ω.
Single transmitter applied power: 200 W
Series connection 1 mono channel on 8 Ω.
Single transmitter applied power: 80 W
POWER 1 Amplifier
EK-PW1-AU
POWER 1 Amplifier
EK-PW1-AU
POWER 1 Amplifier
EK-PW1-AU
Sentio Streamer
EK-50S-AU
Sentio Streamer
EK-50S-AU
Sentio Streamer
EK-50S-AU

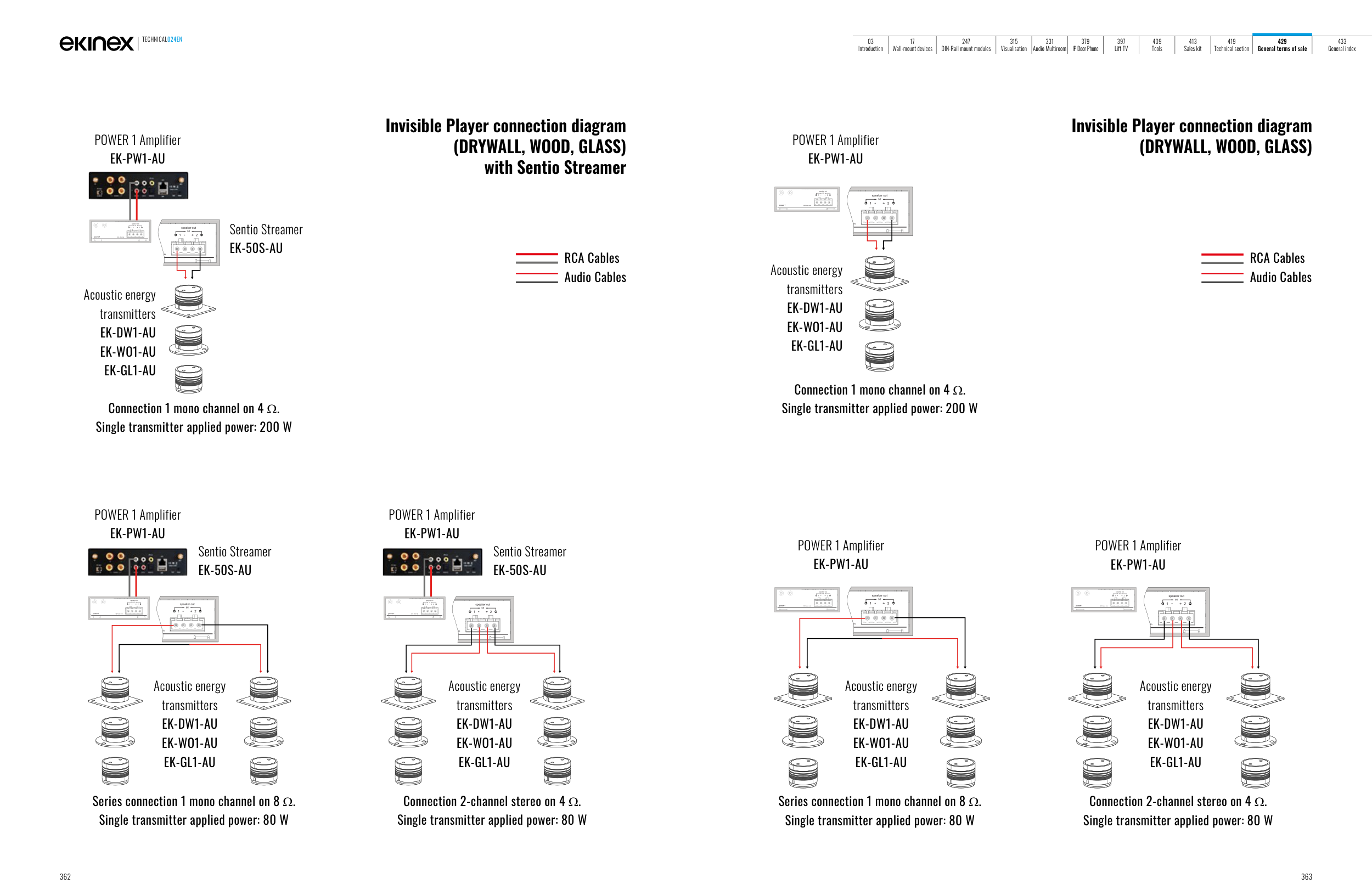

Invisible Player connection diagram
(DRYWALL, WOOD, GLASS)
with Sentio Streamer
Connection 2-channel stereo on 4 Ω.
Single transmitter applied power: 80 W
RCA Cables
Audio Cables
Acoustic energy
transmitters
EK-DW1-AU
EK-WO1-AU
EK-GL1-AU
Acoustic energy
transmitters
EK-DW1-AU
EK-WO1-AU
EK-GL1-AU
Acoustic energy
transmitters
EK-DW1-AU
EK-WO1-AU
EK-GL1-AU
Connection 1 mono channel on 4 Ω.
Single transmitter applied power: 200 W
Series connection 1 mono channel on 8 Ω.
Single transmitter applied power: 80 W
POWER 1 Amplifier
EK-PW1-AU
POWER 1 Amplifier
EK-PW1-AU
POWER 1 Amplifier
EK-PW1-AU
Invisible Player connection diagram
(DRYWALL, WOOD, GLASS)
Connection 2-channel stereo on 4 Ω.
Single transmitter applied power: 80 W
