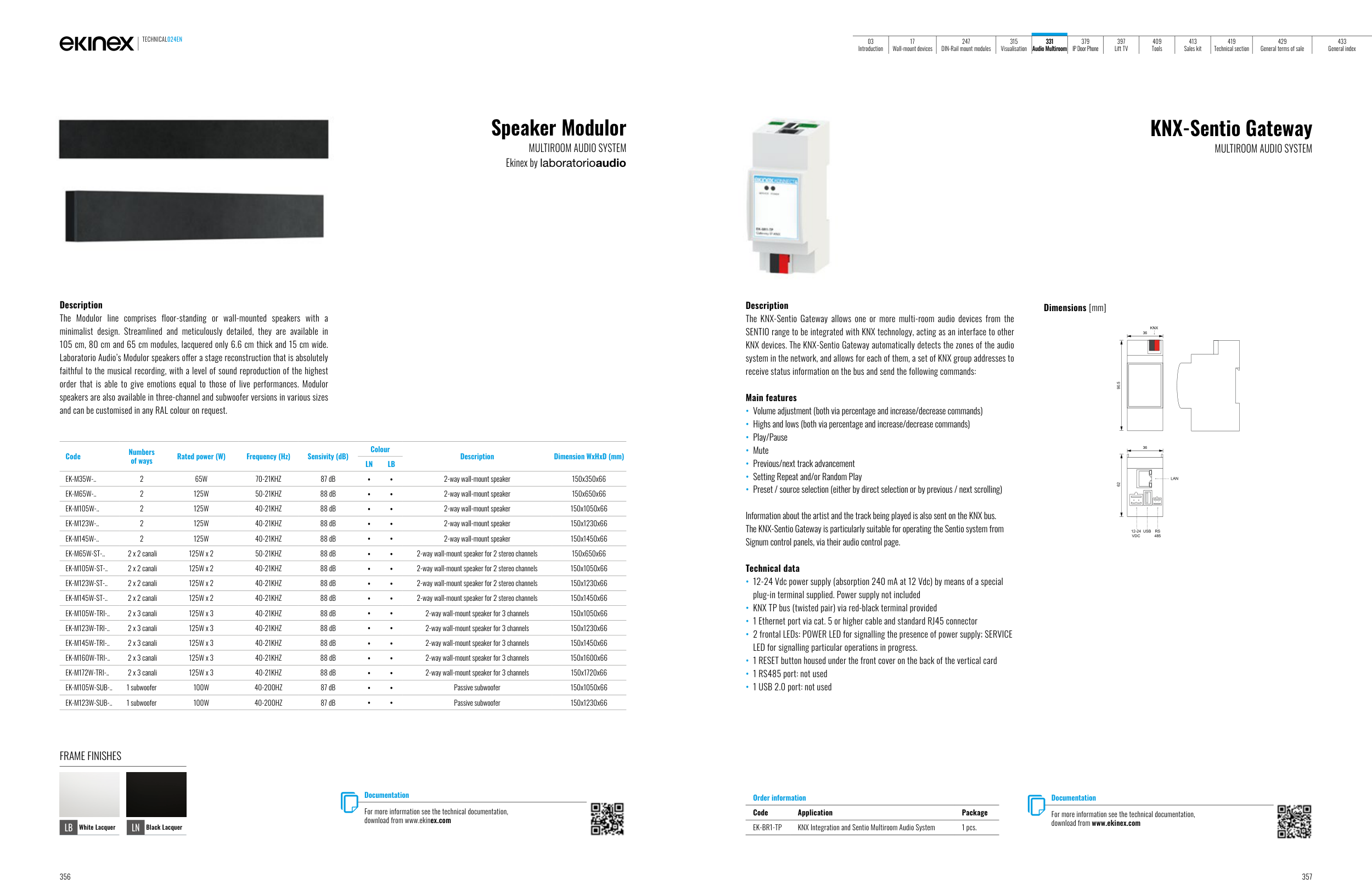

Speaker Modulor
MULTIROOM AUDIO SYSTEM
Ekinex by laboratorioaudio
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Description
The Modulor line comprises floor-standing or wall-mounted speakers with a
minimalist design. Streamlined and meticulously detailed, they are available in
105 cm, 80 cm and 65 cm modules, lacquered only 6.6 cm thick and 15 cm wide.
Laboratorio Audio’s Modulor speakers offer a stage reconstruction that is absolutely
faithful to the musical recording, with a level of sound reproduction of the highest
order that is able to give emotions equal to those of live performances. Modulor
speakers are also available in three-channel and subwoofer versions in various sizes
and can be customised in any RAL colour on request.
FRAME FINISHES
LB
White Lacquer
LN
Black Lacquer
Code
Numbers
of ways
Rated power (W)
Frequency (Hz)
Sensivity (dB)
Colour
Description
Dimension WxHxD (mm)
LN
LB
EK-M35W-..
2
65W
70-21KHZ
87 dB
•
•
2-way wall-mount speaker
150x350x66
EK-M65W-..
2
125W
50-21KHZ
88 dB
•
•
2-way wall-mount speaker
150x650x66
EK-M105W-..
2
125W
40-21KHZ
88 dB
•
•
2-way wall-mount speaker
150x1050x66
EK-M123W-..
2
125W
40-21KHZ
88 dB
•
•
2-way wall-mount speaker
150x1230x66
EK-M145W-..
2
125W
40-21KHZ
88 dB
•
•
2-way wall-mount speaker
150x1450x66
EK-M65W-ST-..
2 x 2 canali
125W x 2
50-21KHZ
88 dB
•
•
2-way wall-mount speaker for 2 stereo channels
150x650x66
EK-M105W-ST-..
2 x 2 canali
125W x 2
40-21KHZ
88 dB
•
•
2-way wall-mount speaker for 2 stereo channels
150x1050x66
EK-M123W-ST-..
2 x 2 canali
125W x 2
40-21KHZ
88 dB
•
•
2-way wall-mount speaker for 2 stereo channels
150x1230x66
EK-M145W-ST-..
2 x 2 canali
125W x 2
40-21KHZ
88 dB
•
•
2-way wall-mount speaker for 2 stereo channels
150x1450x66
EK-M105W-TRI-..
2 x 3 canali
125W x 3
40-21KHZ
88 dB
•
•
2-way wall-mount speaker for 3 channels
150x1050x66
EK-M123W-TRI-..
2 x 3 canali
125W x 3
40-21KHZ
88 dB
•
•
2-way wall-mount speaker for 3 channels
150x1230x66
EK-M145W-TRI-..
2 x 3 canali
125W x 3
40-21KHZ
88 dB
•
•
2-way wall-mount speaker for 3 channels
150x1450x66
EK-M160W-TRI-..
2 x 3 canali
125W x 3
40-21KHZ
88 dB
•
•
2-way wall-mount speaker for 3 channels
150x1600x66
EK-M172W-TRI-..
2 x 3 canali
125W x 3
40-21KHZ
88 dB
•
•
2-way wall-mount speaker for 3 channels
150x1720x66
EK-M105W-SUB-..
1 subwoofer
100W
40-200HZ
87 dB
•
•
Passive subwoofer
150x1050x66
EK-M123W-SUB-..
1 subwoofer
100W
40-200HZ
87 dB
•
•
Passive subwoofer
150x1230x66
Documentation
For more information see the technical documentation,
download from www.ekinex.com
KNX-Sentio Gateway
MULTIROOM AUDIO SYSTEM
Description
The KNX-Sentio Gateway allows one or more multi-room audio devices from the
SENTIO range to be integrated with KNX technology, acting as an interface to other
KNX devices. The KNX-Sentio Gateway automatically detects the zones of the audio
system in the network, and allows for each of them, a set of KNX group addresses to
receive status information on the bus and send the following commands:
Main features
• Volume adjustment (both via percentage and increase/decrease commands)
• Highs and lows (both via percentage and increase/decrease commands)
• Play/Pause
• Mute
• Previous/next track advancement
• Setting Repeat and/or Random Play
• Preset / source selection (either by direct selection or by previous / next scrolling)
Information about the artist and the track being played is also sent on the KNX bus.
The KNX-Sentio Gateway is particularly suitable for operating the Sentio system from
Signum control panels, via their audio control page.
Technical data
• 12-24 Vdc power supply (absorption 240 mA at 12 Vdc) by means of a special
plug-in terminal supplied. Power supply not included
• KNX TP bus (twisted pair) via red-black terminal provided
• 1 Ethernet port via cat. 5 or higher cable and standard RJ45 connector
• 2 frontal LEDs: POWER LED for signalling the presence of power supply; SERVICE
LED for signalling particular operations in progress.
• 1 RESET button housed under the front cover on the back of the vertical card
• 1 RS485 port: not used
• 1 USB 2.0 port: not used
Order information
Code
Application
Package
EK-BR1-TP
KNX Integration and Sentio Multiroom Audio System
1 pcs.
Dimensions [mm]
LAN
USB
62
90.5
36
12-24
VDC
KNX
RS
485
36
TECHNICAL024EN
