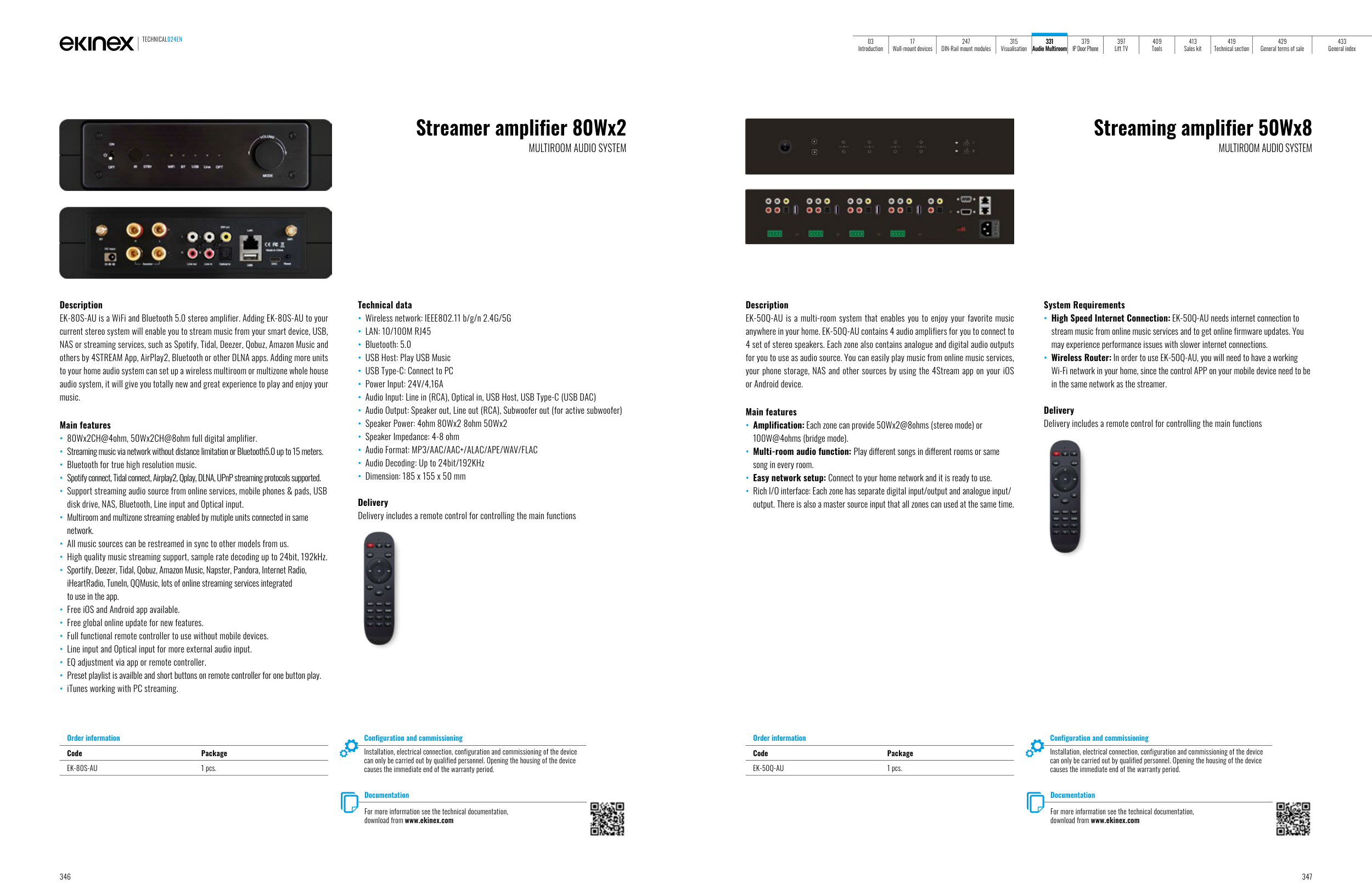

Streamer amplifier 80Wx2
MULTIROOM AUDIO SYSTEM
Description
EK-80S-AU is a WiFi and Bluetooth 5.0 stereo amplifier. Adding EK-80S-AU to your
current stereo system will enable you to stream music from your smart device, USB,
NAS or streaming services, such as Spotify, Tidal, Deezer, Qobuz, Amazon Music and
others by 4STREAM App, AirPlay2, Bluetooth or other DLNA apps. Adding more units
to your home audio system can set up a wireless multiroom or multizone whole house
audio system, it will give you totally new and great experience to play and enjoy your
music.
Main features
• 80Wx2CH@4ohm, 50Wx2CH@8ohm full digital amplifier.
• Streaming music via network without distance limitation or Bluetooth5.0 up to 15 meters.
• Bluetooth for true high resolution music.
• Spotify connect, Tidal connect, Airplay2, Qplay, DLNA, UPnP streaming protocols supported.
• Support streaming audio source from online services, mobile phones & pads, USB
disk drive, NAS, Bluetooth, Line input and Optical input.
• Multiroom and multizone streaming enabled by mutiple units connected in same
network.
• All music sources can be restreamed in sync to other models from us.
• High quality music streaming support, sample rate decoding up to 24bit, 192kHz.
• Sportify, Deezer, Tidal, Qobuz, Amazon Music, Napster, Pandora, Internet Radio,
iHeartRadio, TuneIn, QQMusic, lots of online streaming services integrated
to use in the app.
• Free iOS and Android app available.
• Free global online update for new features.
• Full functional remote controller to use without mobile devices.
• Line input and Optical input for more external audio input.
• EQ adjustment via app or remote controller.
• Preset playlist is availble and short buttons on remote controller for one button play.
• iTunes working with PC streaming.
Technical data
• Wireless network: IEEE802.11 b/g/n 2.4G/5G
• LAN: 10/100M RJ45
• Bluetooth: 5.0
• USB Host: Play USB Music
• USB Type-C: Connect to PC
• Power Input: 24V/4,16A
• Audio Input: Line in (RCA), Optical in, USB Host, USB Type-C (USB DAC)
• Audio Output: Speaker out, Line out (RCA), Subwoofer out (for active subwoofer)
• Speaker Power: 4ohm 80Wx2 8ohm 50Wx2
• Speaker Impedance: 4-8 ohm
• Audio Format: MP3/AAC/AAC+/ALAC/APE/WAV/FLAC
• Audio Decoding: Up to 24bit/192KHz
• Dimension: 185 x 155 x 50 mm
Delivery
Delivery includes a remote control for controlling the main functions
Configuration and commissioning
Installation, electrical connection, configuration and commissioning of the device
can only be carried out by qualified personnel. Opening the housing of the device
causes the immediate end of the warranty period.
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Package
EK-80S-AU
1 pcs.
Streaming amplifier 50Wx8
MULTIROOM AUDIO SYSTEM
Description
EK-50Q-AU is a multi-room system that enables you to enjoy your favorite music
anywhere in your home. EK-50Q-AU contains 4 audio amplifiers for you to connect to
4 set of stereo speakers. Each zone also contains analogue and digital audio outputs
for you to use as audio source. You can easily play music from online music services,
your phone storage, NAS and other sources by using the 4Stream app on your iOS
or Android device.
Main features
• Amplification: Each zone can provide 50Wx2@8ohms (stereo mode) or
100W@4ohms (bridge mode).
• Multi-room audio function: Play different songs in different rooms or same
song in every room.
• Easy network setup: Connect to your home network and it is ready to use.
• Rich I/O interface: Each zone has separate digital input/output and analogue input/
output. There is also a master source input that all zones can used at the same time.
System Requirements
• High Speed Internet Connection: EK-50Q-AU needs internet connection to
stream music from online music services and to get online firmware updates. You
may experience performance issues with slower internet connections.
• Wireless Router: In order to use EK-50Q-AU, you will need to have a working
Wi-Fi network in your home, since the control APP on your mobile device need to be
in the same network as the streamer.
Delivery
Delivery includes a remote control for controlling the main functions
Configuration and commissioning
Installation, electrical connection, configuration and commissioning of the device
can only be carried out by qualified personnel. Opening the housing of the device
causes the immediate end of the warranty period.
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Package
EK-50Q-AU
1 pcs.
