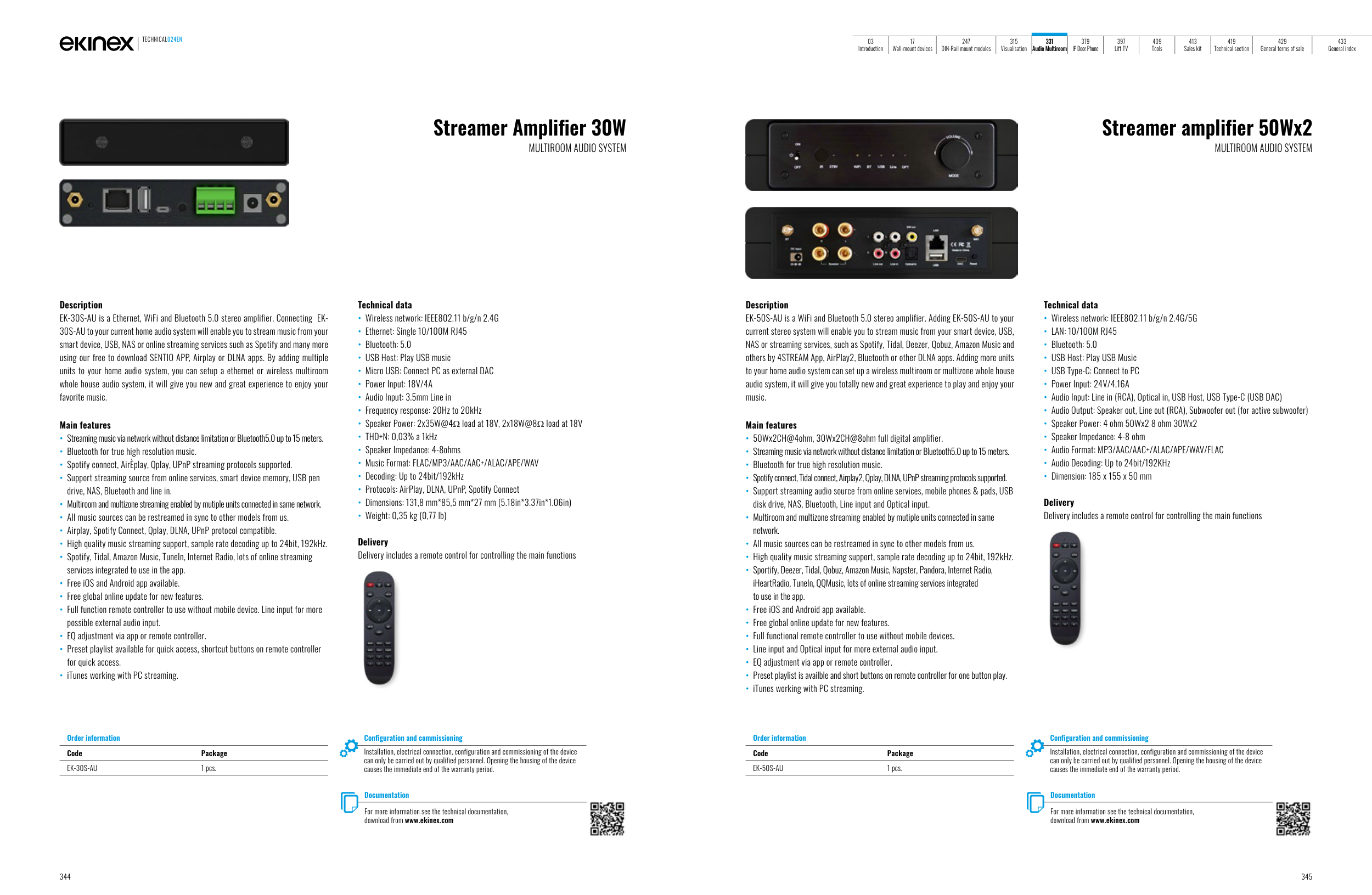

Streamer Amplifier 30W
MULTIROOM AUDIO SYSTEM
Description
EK-30S-AU is a Ethernet, WiFi and Bluetooth 5.0 stereo amplifier. Connecting EK-
30S-AU to your current home audio system will enable you to stream music from your
smart device, USB, NAS or online streaming services such as Spotify and many more
using our free to download SENTIO APP, Airplay or DLNA apps. By adding multiple
units to your home audio system, you can setup a ethernet or wireless multiroom
whole house audio system, it will give you new and great experience to enjoy your
favorite music.
Main features
• Streaming music via network without distance limitation or Bluetooth5.0 up to 15 meters.
• Bluetooth for true high resolution music.
• Spotify connect, AirÈplay, Qplay, UPnP streaming protocols supported.
• Support streaming source from online services, smart device memory, USB pen
drive, NAS, Bluetooth and line in.
• Multiroom and multizone streaming enabled by mutiple units connected in same network.
• All music sources can be restreamed in sync to other models from us.
• Airplay, Spotify Connect, Qplay, DLNA, UPnP protocol compatible.
• High quality music streaming support, sample rate decoding up to 24bit, 192kHz.
• Spotify, Tidal, Amazon Music, TuneIn, Internet Radio, lots of online streaming
services integrated to use in the app.
• Free iOS and Android app available.
• Free global online update for new features.
• Full function remote controller to use without mobile device. Line input for more
possible external audio input.
• EQ adjustment via app or remote controller.
• Preset playlist available for quick access, shortcut buttons on remote controller
for quick access.
• iTunes working with PC streaming.
Technical data
• Wireless network: IEEE802.11 b/g/n 2.4G
• Ethernet: Single 10/100M RJ45
• Bluetooth: 5.0
• USB Host: Play USB music
• Micro USB: Connect PC as external DAC
• Power Input: 18V/4A
• Audio Input: 3.5mm Line in
• Frequency response: 20Hz to 20kHz
• Speaker Power: 2x35W@4Ω load at 18V, 2x18W@8Ω load at 18V
• THD+N: 0,03% a 1kHz
• Speaker Impedance: 4-8ohms
• Music Format: FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
• Decoding: Up to 24bit/192kHz
• Protocols: AirPlay, DLNA, UPnP, Spotify Connect
• Dimensions: 131,8 mm*85,5 mm*27 mm (5.18in*3.37in*1.06in)
• Weight: 0,35 kg (0,77 lb)
Delivery
Delivery includes a remote control for controlling the main functions
Configuration and commissioning
Installation, electrical connection, configuration and commissioning of the device
can only be carried out by qualified personnel. Opening the housing of the device
causes the immediate end of the warranty period.
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Package
EK-30S-AU
1 pcs.
Streamer amplifier 50Wx2
MULTIROOM AUDIO SYSTEM
Description
EK-50S-AU is a WiFi and Bluetooth 5.0 stereo amplifier. Adding EK-50S-AU to your
current stereo system will enable you to stream music from your smart device, USB,
NAS or streaming services, such as Spotify, Tidal, Deezer, Qobuz, Amazon Music and
others by 4STREAM App, AirPlay2, Bluetooth or other DLNA apps. Adding more units
to your home audio system can set up a wireless multiroom or multizone whole house
audio system, it will give you totally new and great experience to play and enjoy your
music.
Main features
• 50Wx2CH@4ohm, 30Wx2CH@8ohm full digital amplifier.
• Streaming music via network without distance limitation or Bluetooth5.0 up to 15 meters.
• Bluetooth for true high resolution music.
• Spotify connect, Tidal connect, Airplay2, Qplay, DLNA, UPnP streaming protocols supported.
• Support streaming audio source from online services, mobile phones & pads, USB
disk drive, NAS, Bluetooth, Line input and Optical input.
• Multiroom and multizone streaming enabled by mutiple units connected in same
network.
• All music sources can be restreamed in sync to other models from us.
• High quality music streaming support, sample rate decoding up to 24bit, 192kHz.
• Sportify, Deezer, Tidal, Qobuz, Amazon Music, Napster, Pandora, Internet Radio,
iHeartRadio, TuneIn, QQMusic, lots of online streaming services integrated
to use in the app.
• Free iOS and Android app available.
• Free global online update for new features.
• Full functional remote controller to use without mobile devices.
• Line input and Optical input for more external audio input.
• EQ adjustment via app or remote controller.
• Preset playlist is availble and short buttons on remote controller for one button play.
• iTunes working with PC streaming.
Technical data
• Wireless network: IEEE802.11 b/g/n 2.4G/5G
• LAN: 10/100M RJ45
• Bluetooth: 5.0
• USB Host: Play USB Music
• USB Type-C: Connect to PC
• Power Input: 24V/4,16A
• Audio Input: Line in (RCA), Optical in, USB Host, USB Type-C (USB DAC)
• Audio Output: Speaker out, Line out (RCA), Subwoofer out (for active subwoofer)
• Speaker Power: 4 ohm 50Wx2 8 ohm 30Wx2
• Speaker Impedance: 4-8 ohm
• Audio Format: MP3/AAC/AAC+/ALAC/APE/WAV/FLAC
• Audio Decoding: Up to 24bit/192KHz
• Dimension: 185 x 155 x 50 mm
Delivery
Delivery includes a remote control for controlling the main functions
Configuration and commissioning
Installation, electrical connection, configuration and commissioning of the device
can only be carried out by qualified personnel. Opening the housing of the device
causes the immediate end of the warranty period.
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Package
EK-50S-AU
1 pcs.
