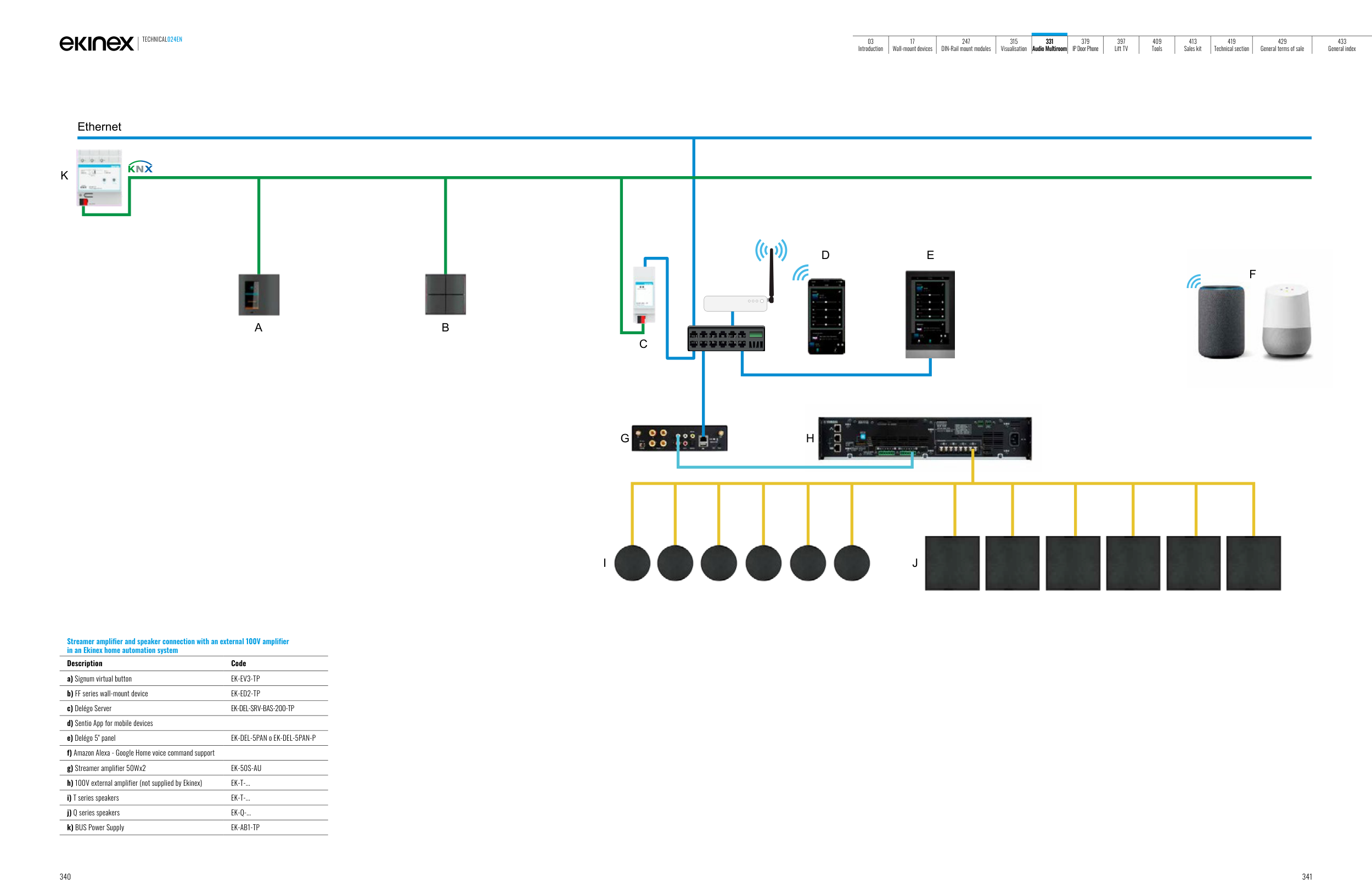

Streamer amplifier and speaker connection with an external 100V amplifier
in an Ekinex home automation system
Description
Code
a) Signum virtual button
EK-EV3-TP
b) FF series wall-mount device
EK-ED2-TP
c) Delégo Server
EK-DEL-SRV-BAS-200-TP
d) Sentio App for mobile devices
e) Delégo 5" panel
EK-DEL-5PAN o EK-DEL-5PAN-P
f) Amazon Alexa - Google Home voice command support
g) Streamer amplifier 50Wx2
EK-50S-AU
h) 100V external amplifier (not supplied by Ekinex)
EK-T-...
i) T series speakers
EK-T-...
j) Q series speakers
EK-Q-...
k) BUS Power Supply
EK-AB1-TP
A
B
C
D
E
F
G
H
J
K
Ethernet
I
