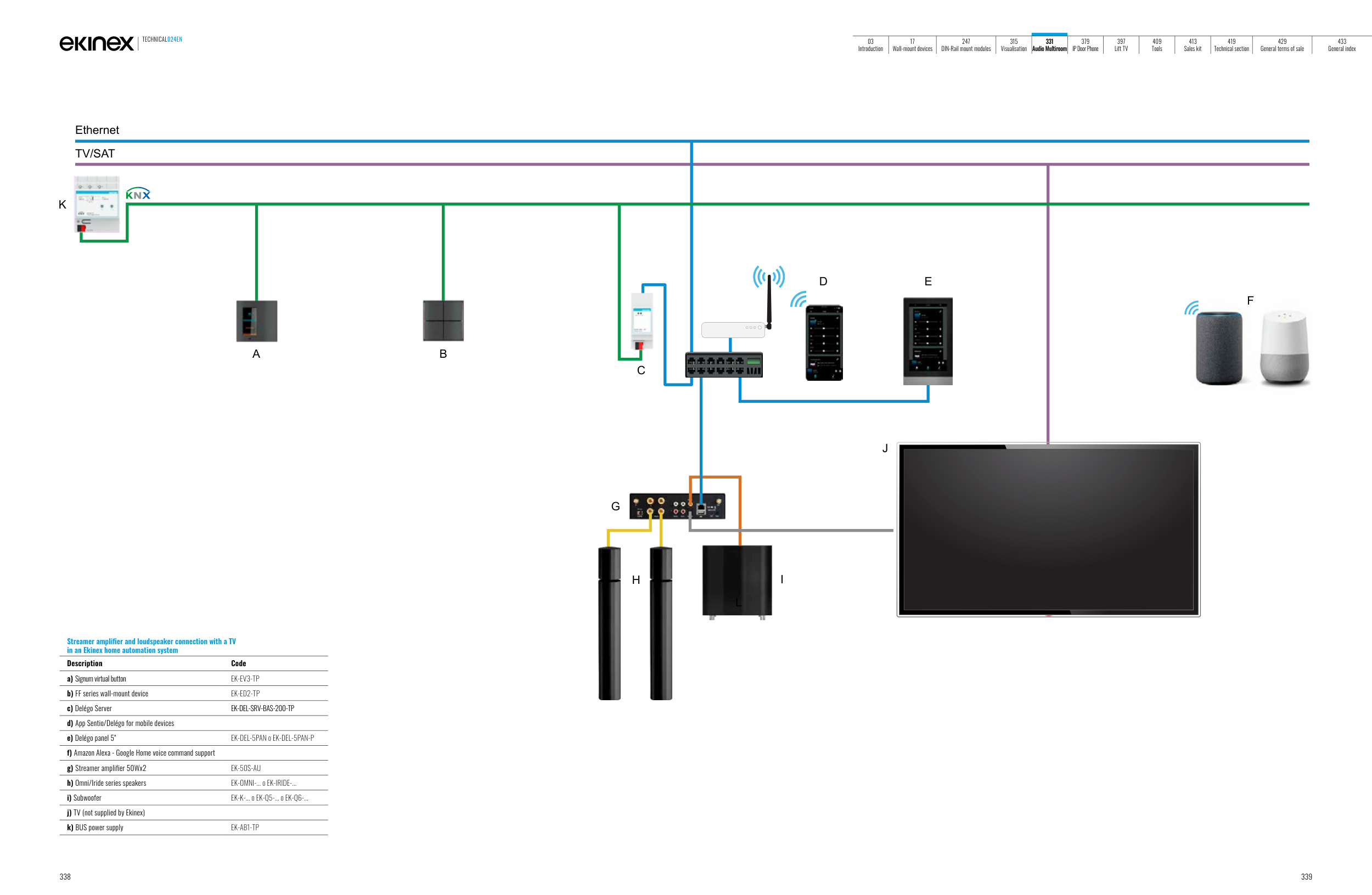

Streamer amplifier and loudspeaker connection with a TV
in an Ekinex home automation system
Description
Code
a) Signum virtual button
EK-EV3-TP
b) FF series wall-mount device
EK-ED2-TP
c) Delégo Server
EK-DEL-SRV-BAS-200-TP
d) App Sentio/Delégo for mobile devices
e) Delégo panel 5"
EK-DEL-5PAN o EK-DEL-5PAN-P
f) Amazon Alexa - Google Home voice command support
g) Streamer amplifier 50Wx2
EK-50S-AU
h) Omni/Iride series speakers
EK-OMNI-... o EK-IRIDE-...
i) Subwoofer
EK-K-... o EK-Q5-... o EK-Q6-...
j) TV (not supplied by Ekinex)
k) BUS power supply
EK-AB1-TP
