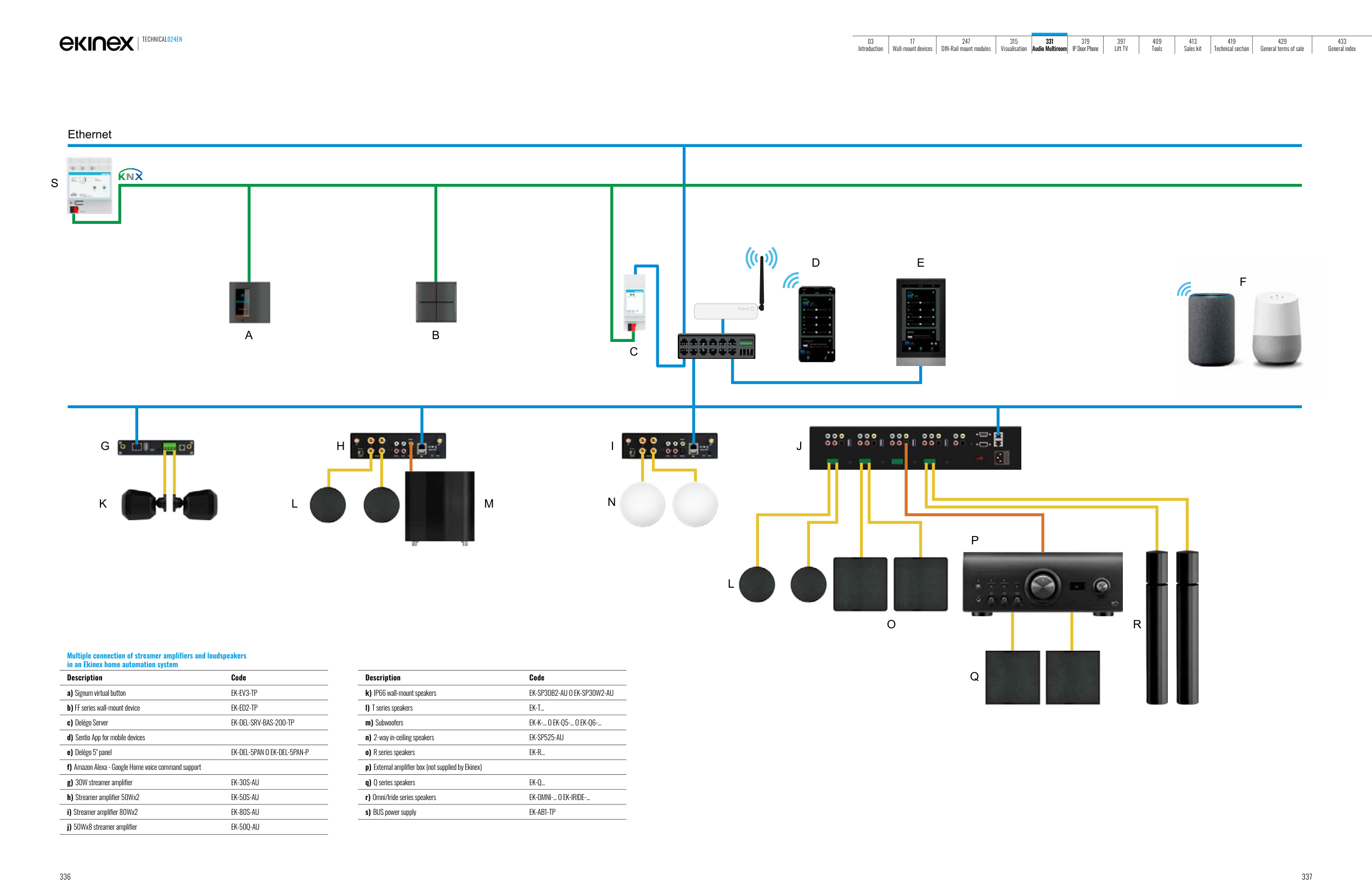

Multiple connection of streamer amplifiers and loudspeakers
in an Ekinex home automation system
Description
Code
a) Signum virtual button
EK-EV3-TP
b) FF series wall-mount device
EK-ED2-TP
c) Delégo Server
EK-DEL-SRV-BAS-200-TP
d) Sentio App for mobile devices
e) Delégo 5" panel
EK-DEL-5PAN O EK-DEL-5PAN-P
f) Amazon Alexa - Google Home voice command support
g) 30W streamer amplifier
EK-30S-AU
h) Streamer amplifier 50Wx2
EK-50S-AU
i) Streamer amplifier 80Wx2
EK-80S-AU
j) 50Wx8 streamer amplifier
EK-50Q-AU
Description
Code
k) IP66 wall-mount speakers
EK-SP30B2-AU O EK-SP30W2-AU
l) T series speakers
EK-T...
m) Subwoofers
EK-K-... O EK-Q5-... O EK-Q6-...
n) 2-way in-ceiling speakers
EK-SP525-AU
o) R series speakers
EK-R...
p) External amplifier box (not supplied by Ekinex)
q) Q series speakers
EK-Q...
r) Omni/Iride series speakers
EK-OMNI-... O EK-IRIDE-...
s) BUS power supply
EK-AB1-TP
A
B
C
D
E
F
G
H
I
J
K
L
M
N
L
O
P
Q
R
S
Ethernet
