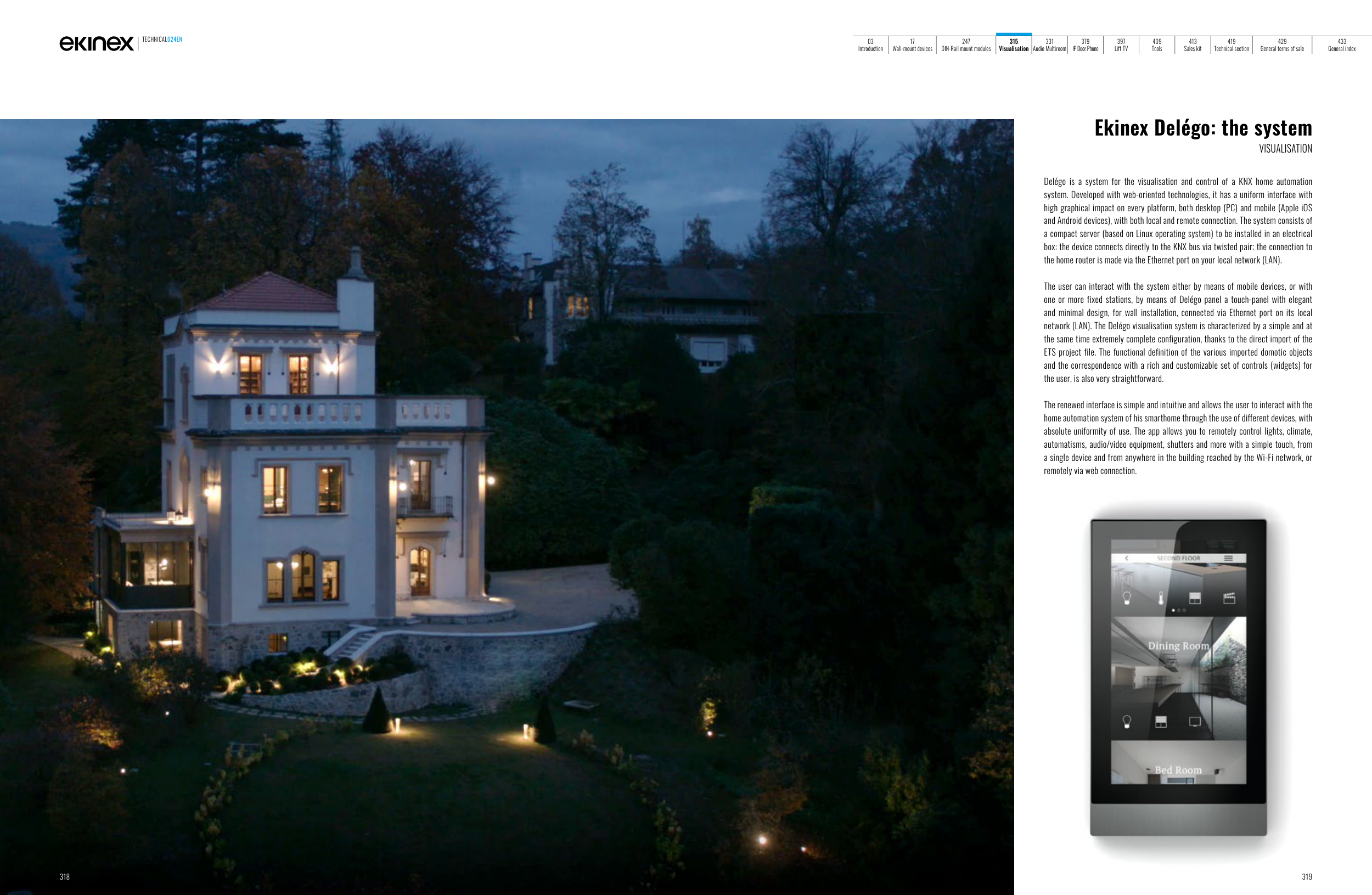

Ekinex Delégo: the system
VISUALISATION
Delégo is a system for the visualisation and control of a KNX home automation
system. Developed with web-oriented technologies, it has a uniform interface with
high graphical impact on every platform, both desktop (PC) and mobile (Apple iOS
and Android devices), with both local and remote connection. The system consists of
a compact server (based on Linux operating system) to be installed in an electrical
box: the device connects directly to the KNX bus via twisted pair; the connection to
the home router is made via the Ethernet port on your local network (LAN).
The user can interact with the system either by means of mobile devices, or with
one or more fixed stations, by means of Delégo panel a touch-panel with elegant
and minimal design, for wall installation, connected via Ethernet port on its local
network (LAN). The Delégo visualisation system is characterized by a simple and at
the same time extremely complete configuration, thanks to the direct import of the
ETS project file. The functional definition of the various imported domotic objects
and the correspondence with a rich and customizable set of controls (widgets) for
the user, is also very straightforward.
The renewed interface is simple and intuitive and allows the user to interact with the
home automation system of his smarthome through the use of different devices, with
absolute uniformity of use. The app allows you to remotely control lights, climate,
automatisms, audio/video equipment, shutters and more with a simple touch, from
a single device and from anywhere in the building reached by the Wi-Fi network, or
remotely via web connection.
