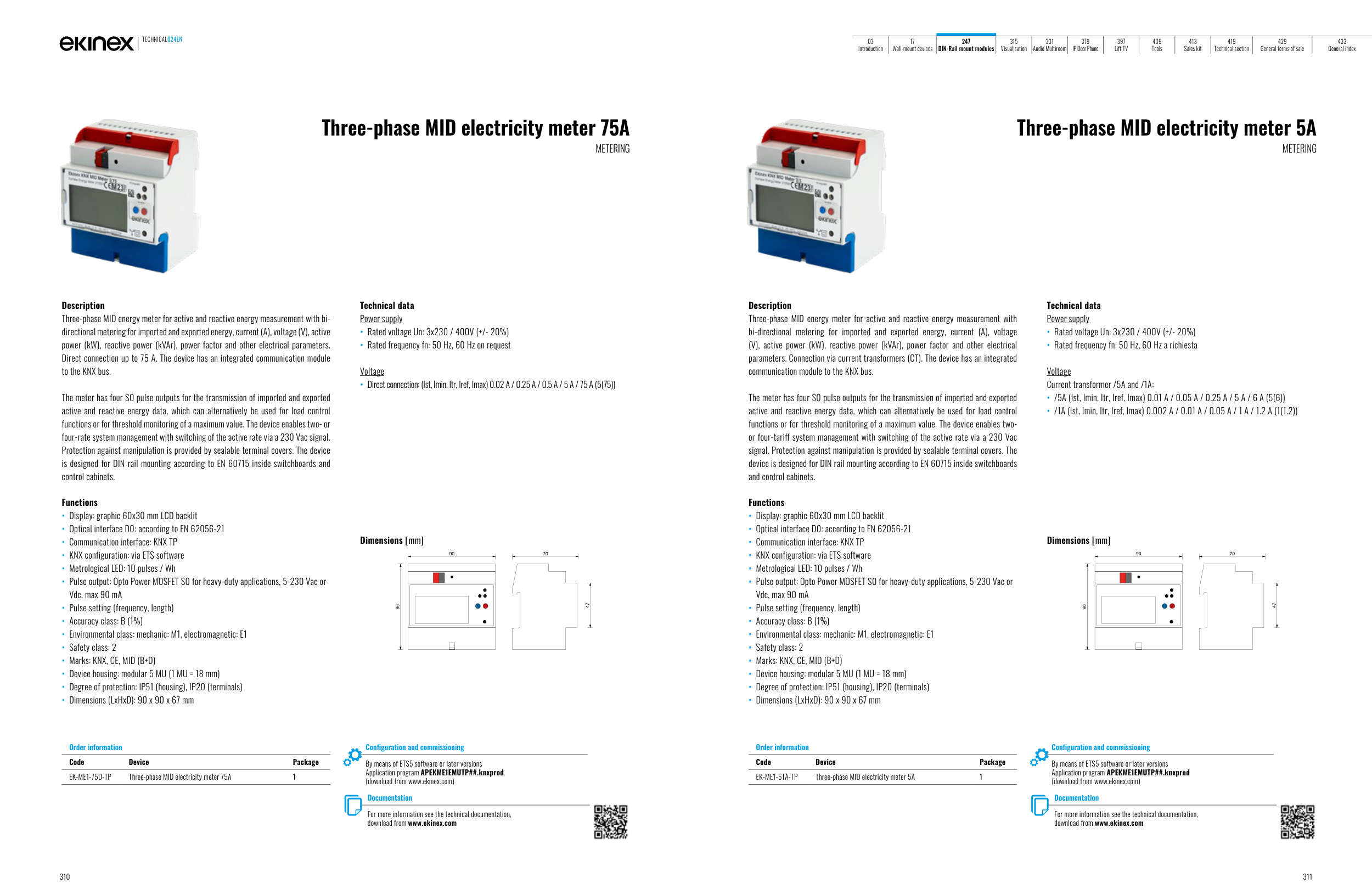

Three-phase MID electricity meter 75A
METERING
Description
Three-phase MID energy meter for active and reactive energy measurement with bi-
directional metering for imported and exported energy, current (A), voltage (V), active
power (kW), reactive power (kVAr), power factor and other electrical parameters.
Direct connection up to 75 A. The device has an integrated communication module
to the KNX bus.
The meter has four S0 pulse outputs for the transmission of imported and exported
active and reactive energy data, which can alternatively be used for load control
functions or for threshold monitoring of a maximum value. The device enables two- or
four-rate system management with switching of the active rate via a 230 Vac signal.
Protection against manipulation is provided by sealable terminal covers. The device
is designed for DIN rail mounting according to EN 60715 inside switchboards and
control cabinets.
Functions
• Display: graphic 60x30 mm LCD backlit
• Optical interface D0: according to EN 62056-21
• Communication interface: KNX TP
• KNX configuration: via ETS software
• Metrological LED: 10 pulses / Wh
• Pulse output: Opto Power MOSFET S0 for heavy-duty applications, 5-230 Vac or
Vdc, max 90 mA
• Pulse setting (frequency, length)
• Accuracy class: B (1%)
• Environmental class: mechanic: M1, electromagnetic: E1
• Safety class: 2
• Marks: KNX, CE, MID (B+D)
• Device housing: modular 5 MU (1 MU = 18 mm)
• Degree of protection: IP51 (housing), IP20 (terminals)
• Dimensions (LxHxD): 90 x 90 x 67 mm
Technical data
Power supply
• Rated voltage Un: 3x230 / 400V (+/- 20%)
• Rated frequency fn: 50 Hz, 60 Hz on request
Voltage
• Direct connection: (Ist, Imin, Itr, Iref, Imax) 0.02 A / 0.25 A / 0.5 A / 5 A / 75 A (5(75))
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKME1EMUTP##.knxprod
(download from www.ekinex.com)
Order information
Code
Device
Package
EK-ME1-75D-TP
Three-phase MID electricity meter 75A
1
Three-phase MID electricity meter 5A
METERING
Description
Three-phase MID energy meter for active and reactive energy measurement with
bi-directional metering for imported and exported energy, current (A), voltage
(V), active power (kW), reactive power (kVAr), power factor and other electrical
parameters. Connection via current transformers (CT). The device has an integrated
communication module to the KNX bus.
The meter has four S0 pulse outputs for the transmission of imported and exported
active and reactive energy data, which can alternatively be used for load control
functions or for threshold monitoring of a maximum value. The device enables two-
or four-tariff system management with switching of the active rate via a 230 Vac
signal. Protection against manipulation is provided by sealable terminal covers. The
device is designed for DIN rail mounting according to EN 60715 inside switchboards
and control cabinets.
Functions
• Display: graphic 60x30 mm LCD backlit
• Optical interface D0: according to EN 62056-21
• Communication interface: KNX TP
• KNX configuration: via ETS software
• Metrological LED: 10 pulses / Wh
• Pulse output: Opto Power MOSFET S0 for heavy-duty applications, 5-230 Vac or
Vdc, max 90 mA
• Pulse setting (frequency, length)
• Accuracy class: B (1%)
• Environmental class: mechanic: M1, electromagnetic: E1
• Safety class: 2
• Marks: KNX, CE, MID (B+D)
• Device housing: modular 5 MU (1 MU = 18 mm)
• Degree of protection: IP51 (housing), IP20 (terminals)
• Dimensions (LxHxD): 90 x 90 x 67 mm
Technical data
Power supply
• Rated voltage Un: 3x230 / 400V (+/- 20%)
• Rated frequency fn: 50 Hz, 60 Hz a richiesta
Voltage
Current transformer /5A and /1A:
• /5A (Ist, Imin, Itr, Iref, Imax) 0.01 A / 0.05 A / 0.25 A / 5 A / 6 A (5(6))
• /1A (Ist, Imin, Itr, Iref, Imax) 0.002 A / 0.01 A / 0.05 A / 1 A / 1.2 A (1(1.2))
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKME1EMUTP##.knxprod
(download from www.ekinex.com)
Order information
Code
Device
Package
EK-ME1-5TA-TP
Three-phase MID electricity meter 5A
1
