Metering
DIN-RAIL MOUNT MODULES
EK-ME1-75D-TP
Three-phase MID electricity
meter 75A
EK-ME1-5TA-TP
Three-phase MID electricity
meter 5A
Three-phase energy meter
•
•
Single-phase energy meter
•
•
Direct connection
•
-
Fully bi-directional four quadrants measurements for all energies and powers
•
•
Main electrical parameters measured and displayed for a cost-effective consumption analysis
•
•
For 3 / 4 wire networks with balanced or unbalanced load
•
•
Class B according to EN 50470-3
•
•
Tariff Input
•
•
2 S0 outputs for energy pulse emission
•
•
LCD-Display
•
•
Sealable cover to prevent tampering
•
•
MID Certificate
•
•
KNX protocol
•
•
Communication speed: 9600 bps
•
•
Mounting on standard 35 mm rail (EN 60715)
•
•
TECHNICAL024EN
308
309
03
Introduction
17
Wall-mount devices
247
DIN-Rail mount modules
315
Visualisation
331
Audio Multiroom
379
IP Door Phone
397
Lift TV
409
Tools
413
Sales kit
419
Technical section
429
General terms of sale
433
General index
Documentation
For more information see the technical documentation,
download from www.ekinex.com

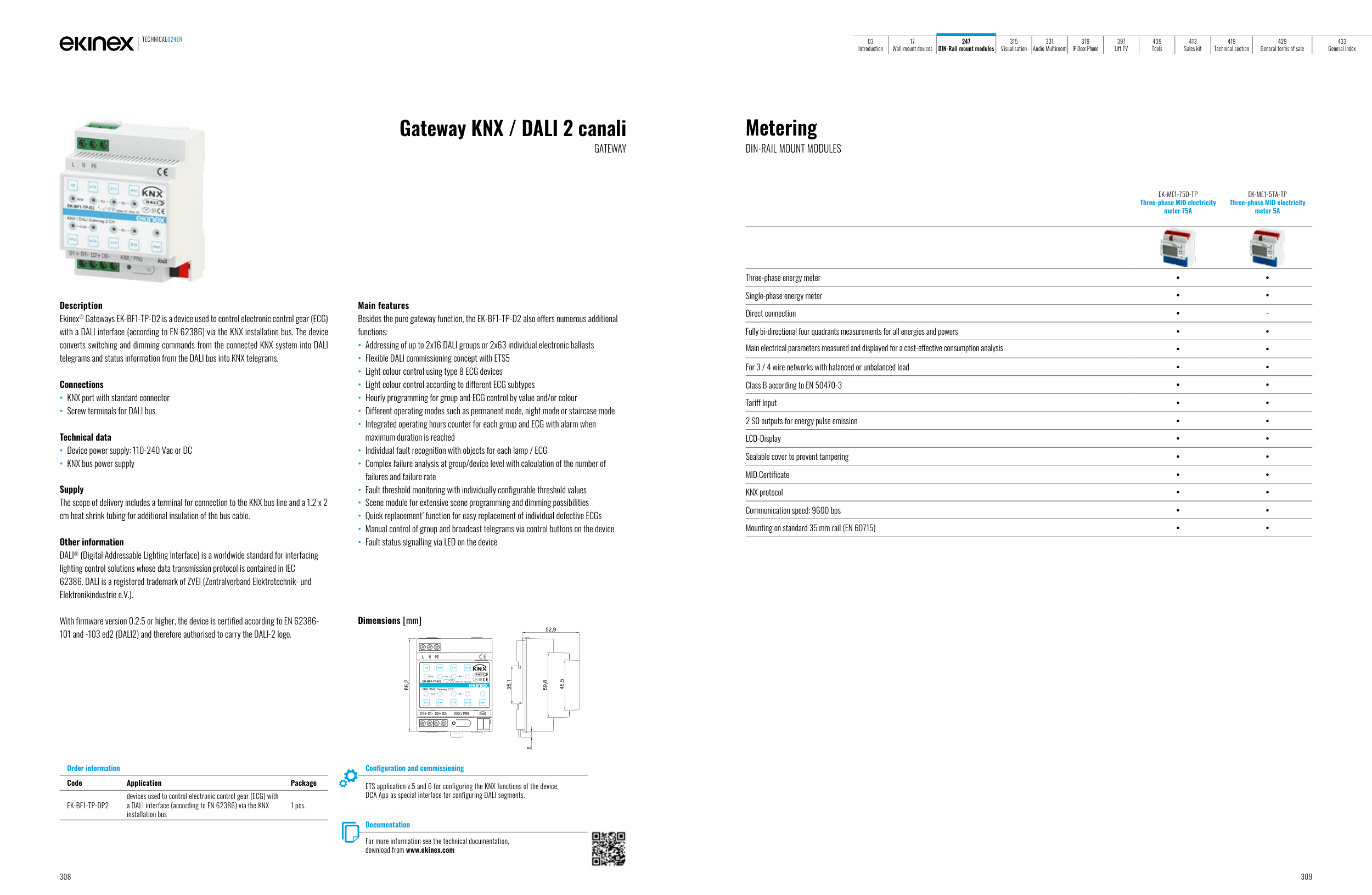

Gateway KNX / DALI 2 canali
GATEWAY
Description
Ekinex® Gateways EK-BF1-TP-D2 is a device used to control electronic control gear (ECG)
with a DALI interface (according to EN 62386) via the KNX installation bus. The device
converts switching and dimming commands from the connected KNX system into DALI
telegrams and status information from the DALI bus into KNX telegrams.
Connections
• KNX port with standard connector
• Screw terminals for DALI bus
Technical data
• Device power supply: 110-240 Vac or DC
• KNX bus power supply
Supply
The scope of delivery includes a terminal for connection to the KNX bus line and a 1.2 x 2
cm heat shrink tubing for additional insulation of the bus cable.
Other information
DALI® (Digital Addressable Lighting Interface) is a worldwide standard for interfacing
lighting control solutions whose data transmission protocol is contained in IEC
62386. DALI is a registered trademark of ZVEI (Zentralverband Elektrotechnik- und
Elektronikindustrie e.V.).
With firmware version 0.2.5 or higher, the device is certified according to EN 62386-
101 and -103 ed2 (DALI2) and therefore authorised to carry the DALI-2 logo.
Main features
Besides the pure gateway function, the EK-BF1-TP-D2 also offers numerous additional
functions:
• Addressing of up to 2x16 DALI groups or 2x63 individual electronic ballasts
• Flexible DALI commissioning concept with ETS5
• Light colour control using type 8 ECG devices
• Light colour control according to different ECG subtypes
• Hourly programming for group and ECG control by value and/or colour
• Different operating modes such as permanent mode, night mode or staircase mode
• Integrated operating hours counter for each group and ECG with alarm when
maximum duration is reached
• Individual fault recognition with objects for each lamp / ECG
• Complex failure analysis at group/device level with calculation of the number of
failures and failure rate
• Fault threshold monitoring with individually configurable threshold values
• Scene module for extensive scene programming and dimming possibilities
• Quick replacement’ function for easy replacement of individual defective ECGs
• Manual control of group and broadcast telegrams via control buttons on the device
• Fault status signalling via LED on the device
Configuration and commissioning
ETS application v.5 and 6 for configuring the KNX functions of the device.
DCA App as special interface for configuring DALI segments.
Order information
Code
Application
Package
EK-BF1-TP-DP2
devices used to control electronic control gear (ECG) with
a DALI interface (according to EN 62386) via the KNX
installation bus
1 pcs.
Dimensions [mm]
