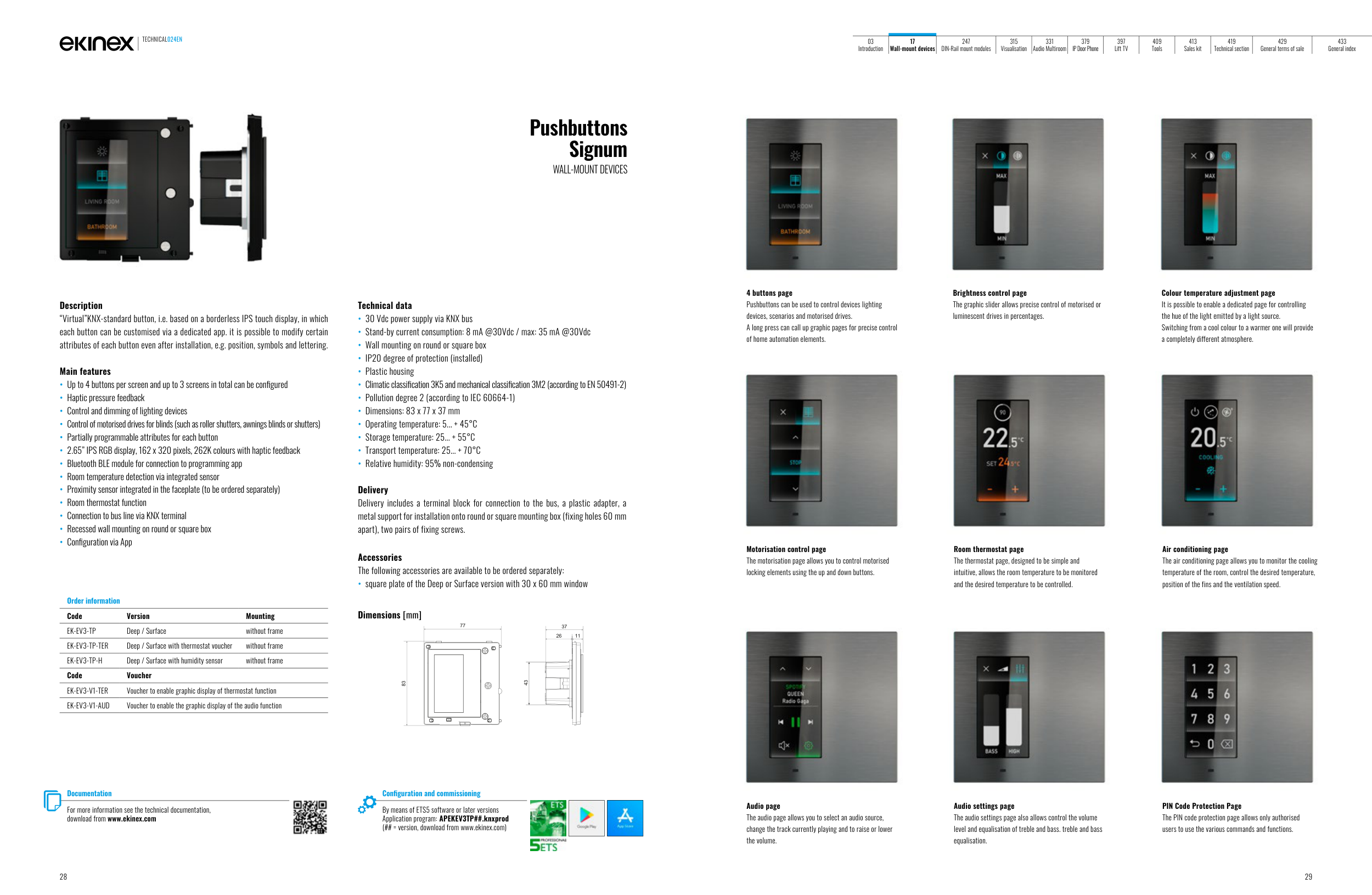

Pushbuttons
Signum
WALL-MOUNT DEVICES
Description
“Virtual”KNX-standard button, i.e. based on a borderless IPS touch display, in which
each button can be customised via a dedicated app. it is possible to modify certain
attributes of each button even after installation, e.g. position, symbols and lettering.
Main features
• Up to 4 buttons per screen and up to 3 screens in total can be configured
• Haptic pressure feedback
• Control and dimming of lighting devices
• Control of motorised drives for blinds (such as roller shutters, awnings blinds or shutters)
• Partially programmable attributes for each button
• 2.65” IPS RGB display, 162 x 320 pixels, 262K colours with haptic feedback
• Bluetooth BLE module for connection to programming app
• Room temperature detection via integrated sensor
• Proximity sensor integrated in the faceplate (to be ordered separately)
• Room thermostat function
• Connection to bus line via KNX terminal
• Recessed wall mounting on round or square box
• Configuration via App
Technical data
• 30 Vdc power supply via KNX bus
• Stand-by current consumption: 8 mA @30Vdc / max: 35 mA @30Vdc
• Wall mounting on round or square box
• IP20 degree of protection (installed)
• Plastic housing
• Climatic classification 3K5 and mechanical classification 3M2 (according to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Dimensions: 83 x 77 x 37 mm
• Operating temperature: 5... + 45°C
• Storage temperature: 25... + 55°C
• Transport temperature: 25... + 70°C
• Relative humidity: 95% non-condensing
Delivery
Delivery includes a terminal block for connection to the bus, a plastic adapter, a
metal support for installation onto round or square mounting box (fixing holes 60 mm
apart), two pairs of fixing screws.
Accessories
The following accessories are available to be ordered separately:
• square plate of the Deep or Surface version with 30 x 60 mm window
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKEV3TP##.knxprod
(## = version, download from www.ekinex.com)
Brightness control page
The graphic slider allows precise control of motorised or
luminescent drives in percentages.
Colour temperature adjustment page
It is possible to enable a dedicated page for controlling
the hue of the light emitted by a light source.
Switching from a cool colour to a warmer one will provide
a completely different atmosphere.
Motorisation control page
The motorisation page allows you to control motorised
locking elements using the up and down buttons.
Room thermostat page
The thermostat page, designed to be simple and
intuitive, allows the room temperature to be monitored
and the desired temperature to be controlled.
Audio page
The audio page allows you to select an audio source,
change the track currently playing and to raise or lower
the volume.
4 buttons page
Pushbuttons can be used to control devices lighting
devices, scenarios and motorised drives.
A long press can call up graphic pages for precise control
of home automation elements.
Audio settings page
The audio settings page also allows control the volume
level and equalisation of treble and bass. treble and bass
equalisation.
Order information
Code
Version
Mounting
EK-EV3-TP
Deep / Surface
without frame
EK-EV3-TP-TER
Deep / Surface with thermostat voucher
without frame
EK-EV3-TP-H
Deep / Surface with humidity sensor
without frame
Code
Voucher
EK-EV3-V1-TER
Voucher to enable graphic display of thermostat function
EK-EV3-V1-AUD
Voucher to enable the graphic display of the audio function
Dimensions [mm]
Air conditioning page
The air conditioning page allows you to monitor the cooling
temperature of the room, control the desired temperature,
position of the fins and the ventilation speed.
PIN Code Protection Page
The PIN code protection page allows only authorised
users to use the various commands and functions.
