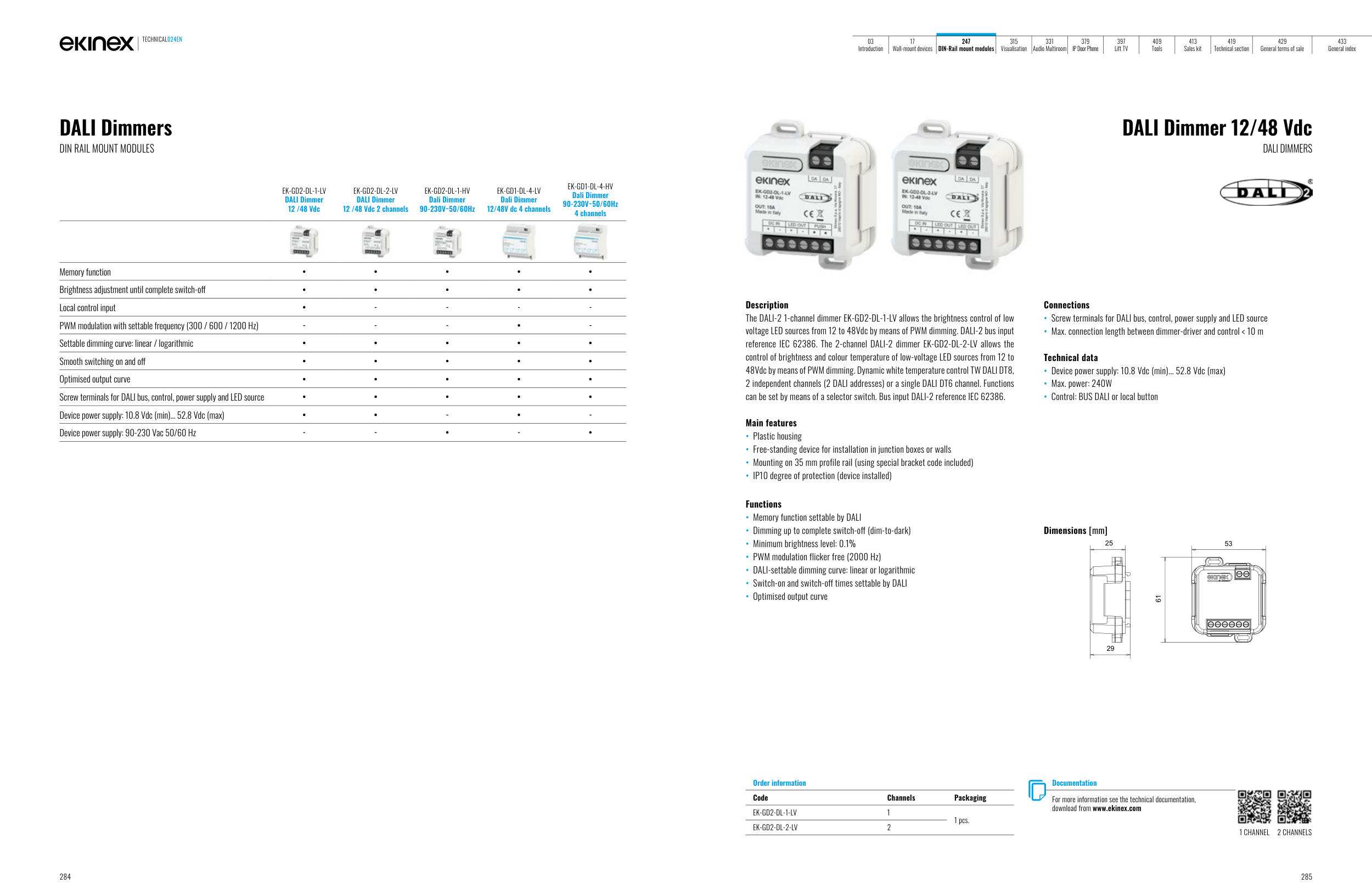

DALI Dimmers
DIN RAIL MOUNT MODULES
EK-GD2-DL-1-LV
DALI Dimmer
12 /48 Vdc
EK-GD2-DL-2-LV
DALI Dimmer
12 /48 Vdc 2 channels
EK-GD2-DL-1-HV
Dali Dimmer
90-230V~50/60Hz
EK-GD1-DL-4-LV
Dali Dimmer
12/48V dc 4 channels
EK-GD1-DL-4-HV
Dali Dimmer
90-230V~50/60Hz
4 channels
Memory function
•
•
•
•
•
Brightness adjustment until complete switch-off
•
•
•
•
•
Local control input
•
-
-
-
-
PWM modulation with settable frequency (300 / 600 / 1200 Hz)
-
-
-
•
-
Settable dimming curve: linear / logarithmic
•
•
•
•
•
Smooth switching on and off
•
•
•
•
•
Optimised output curve
•
•
•
•
•
Screw terminals for DALI bus, control, power supply and LED source
•
•
•
•
•
Device power supply: 10.8 Vdc (min)... 52.8 Vdc (max)
•
•
-
•
-
Device power supply: 90-230 Vac 50/60 Hz
-
-
•
-
•
Description
The DALI-2 1-channel dimmer EK-GD2-DL-1-LV allows the brightness control of low
voltage LED sources from 12 to 48Vdc by means of PWM dimming. DALI-2 bus input
reference IEC 62386. The 2-channel DALI-2 dimmer EK-GD2-DL-2-LV allows the
control of brightness and colour temperature of low-voltage LED sources from 12 to
48Vdc by means of PWM dimming. Dynamic white temperature control TW DALI DT8,
2 independent channels (2 DALI addresses) or a single DALI DT6 channel. Functions
can be set by means of a selector switch. Bus input DALI-2 reference IEC 62386.
Main features
• Plastic housing
• Free-standing device for installation in junction boxes or walls
• Mounting on 35 mm profile rail (using special bracket code included)
• IP10 degree of protection (device installed)
Functions
• Memory function settable by DALI
• Dimming up to complete switch-off (dim-to-dark)
• Minimum brightness level: 0.1%
• PWM modulation flicker free (2000 Hz)
• DALI-settable dimming curve: linear or logarithmic
• Switch-on and switch-off times settable by DALI
• Optimised output curve
Connections
• Screw terminals for DALI bus, control, power supply and LED source
• Max. connection length between dimmer-driver and control < 10 m
Technical data
• Device power supply: 10.8 Vdc (min)... 52.8 Vdc (max)
• Max. power: 240W
• Control: BUS DALI or local button
DALI Dimmer 12/48 Vdc
DALI DIMMERS
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Channels
Packaging
EK-GD2-DL-1-LV
1
1 pcs.
EK-GD2-DL-2-LV
2
Dimensions [mm]
25
29
61
53
1 CHANNEL
2 CHANNELS
