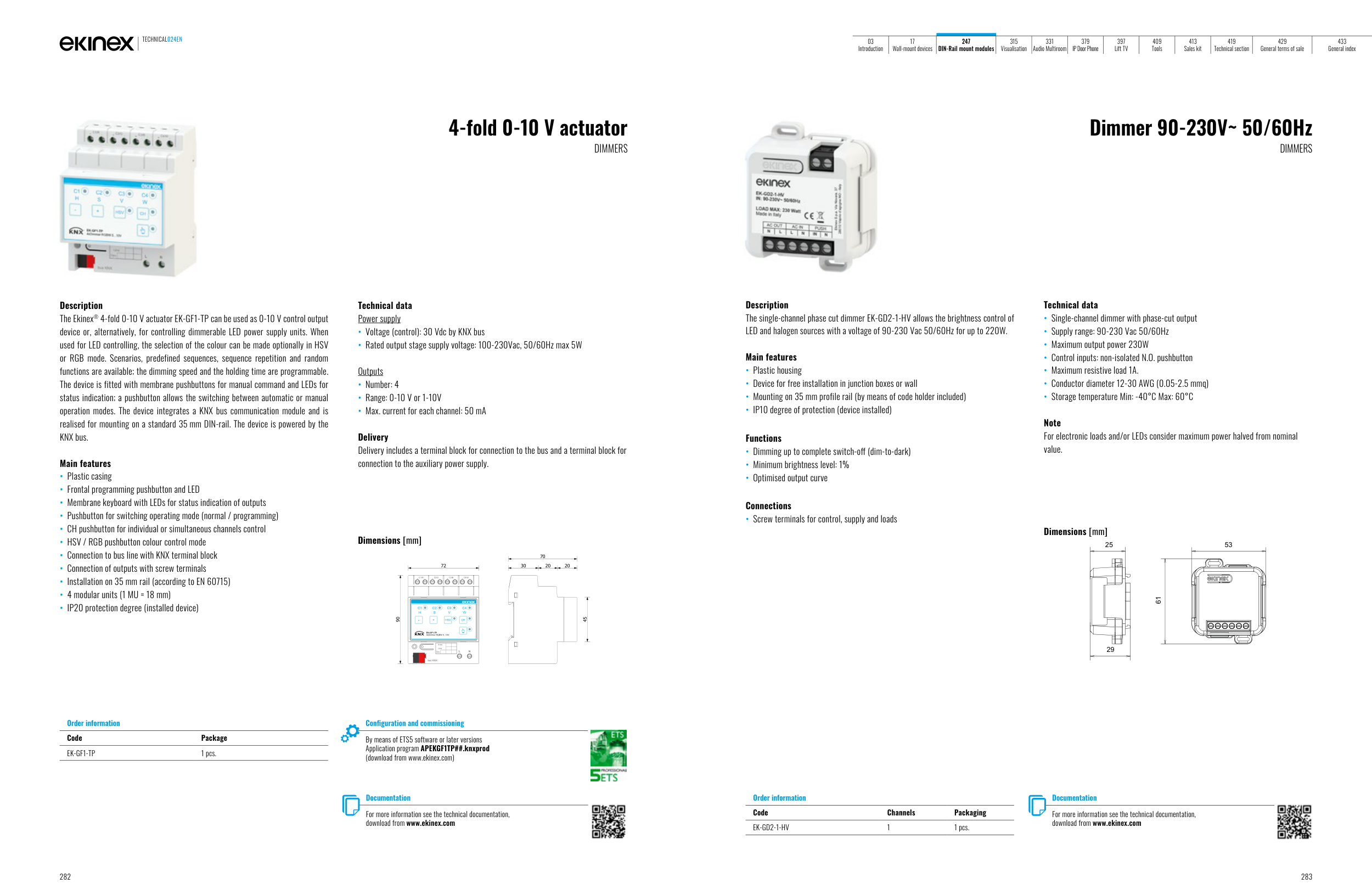

4-fold 0-10 V actuator
DIMMERS
Description
The Ekinex® 4-fold 0-10 V actuator EK-GF1-TP can be used as 0-10 V control output
device or, alternatively, for controlling dimmerable LED power supply units. When
used for LED controlling, the selection of the colour can be made optionally in HSV
or RGB mode. Scenarios, predefined sequences, sequence repetition and random
functions are available; the dimming speed and the holding time are programmable.
The device is fitted with membrane pushbuttons for manual command and LEDs for
status indication; a pushbutton allows the switching between automatic or manual
operation modes. The device integrates a KNX bus communication module and is
realised for mounting on a standard 35 mm DIN-rail. The device is powered by the
KNX bus.
Main features
• Plastic casing
• Frontal programming pushbutton and LED
• Membrane keyboard with LEDs for status indication of outputs
• Pushbutton for switching operating mode (normal / programming)
• CH pushbutton for individual or simultaneous channels control
• HSV / RGB pushbutton colour control mode
• Connection to bus line with KNX terminal block
• Connection of outputs with screw terminals
• Installation on 35 mm rail (according to EN 60715)
• 4 modular units (1 MU = 18 mm)
• IP20 protection degree (installed device)
Technical data
Power supply
• Voltage (control): 30 Vdc by KNX bus
• Rated output stage supply voltage: 100-230Vac, 50/60Hz max 5W
Outputs
• Number: 4
• Range: 0-10 V or 1-10V
• Max. current for each channel: 50 mA
Delivery
Delivery includes a terminal block for connection to the bus and a terminal block for
connection to the auxiliary power supply.
Dimensions [mm]
30
20
20
70
45
72
90
Dev.
Line
Area
bus KNX
-
+ C1/R
C2/G
C3/B
C4/W
-
+
-
+
-
+
L
N
EK-GF1-TP
4xDimmer RGBW 0...10V
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKGF1TP##.knxprod
(download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Package
EK-GF1-TP
1 pcs.
TECHNICAL024EN
282
283
03
Introduction
17
Wall-mount devices
247
DIN-Rail mount modules
315
Visualisation
331
Audio Multiroom
379
IP Door Phone
397
Lift TV
409
Tools
413
Sales kit
419
Technical section
429
General terms of sale
433
General index
Description
The single-channel phase cut dimmer EK-GD2-1-HV allows the brightness control of
LED and halogen sources with a voltage of 90-230 Vac 50/60Hz for up to 220W.
Main features
• Plastic housing
• Device for free installation in junction boxes or wall
• Mounting on 35 mm profile rail (by means of code holder included)
• IP10 degree of protection (device installed)
Functions
• Dimming up to complete switch-off (dim-to-dark)
• Minimum brightness level: 1%
• Optimised output curve
Connections
• Screw terminals for control, supply and loads
Technical data
• Single-channel dimmer with phase-cut output
• Supply range: 90-230 Vac 50/60Hz
• Maximum output power 230W
• Control inputs: non-isolated N.O. pushbutton
• Maximum resistive load 1A.
• Conductor diameter 12-30 AWG (0.05-2.5 mmq)
• Storage temperature Min: -40°C Max: 60°C
Note
For electronic loads and/or LEDs consider maximum power halved from nominal
value.
Dimmer 90-230V~ 50/60Hz
DIMMERS
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Channels
Packaging
EK-GD2-1-HV
1
1 pcs.
Dimensions [mm]
25
29
61
53
