The EK-EV3-TP “virtual” pushbutton, which contains a KNX communication module inside, is suitable for mounting
on a round or square wall flush-mounting box, provided with fixing holes with a centre distance of 60 mm. Each
button is supplied with a metal mounting bracket, which can also be ordered separately if required; a terminal for
connection to the bus line completes the supply.
The pushbutton is completed with a Deep or Surface version plate. The 2.65”, 162 x 320 pixel, 262K
colours IPS RGB touch borderless display with haptic feedback can be configured to manage up to
4 buttons per screen and up to 3 screens in total. Each button can be customised via a dedicated app and
certain attributes of each button can be changed even after installation, e.g. position, symbols and lettering.
The pushbutton also offers the function of a room thermostat, thanks to the integrated temperature sensor.
The proximity sensor integrated in the faceplate (to be ordered separately) provides visual comfort at night.
Configuration and commissioning of the devices is carried out using ETS® software; the relevant application
programmes can be downloaded from www.ekinex.com.
Pushbuttons Signum
WALL-MOUNT DEVICES

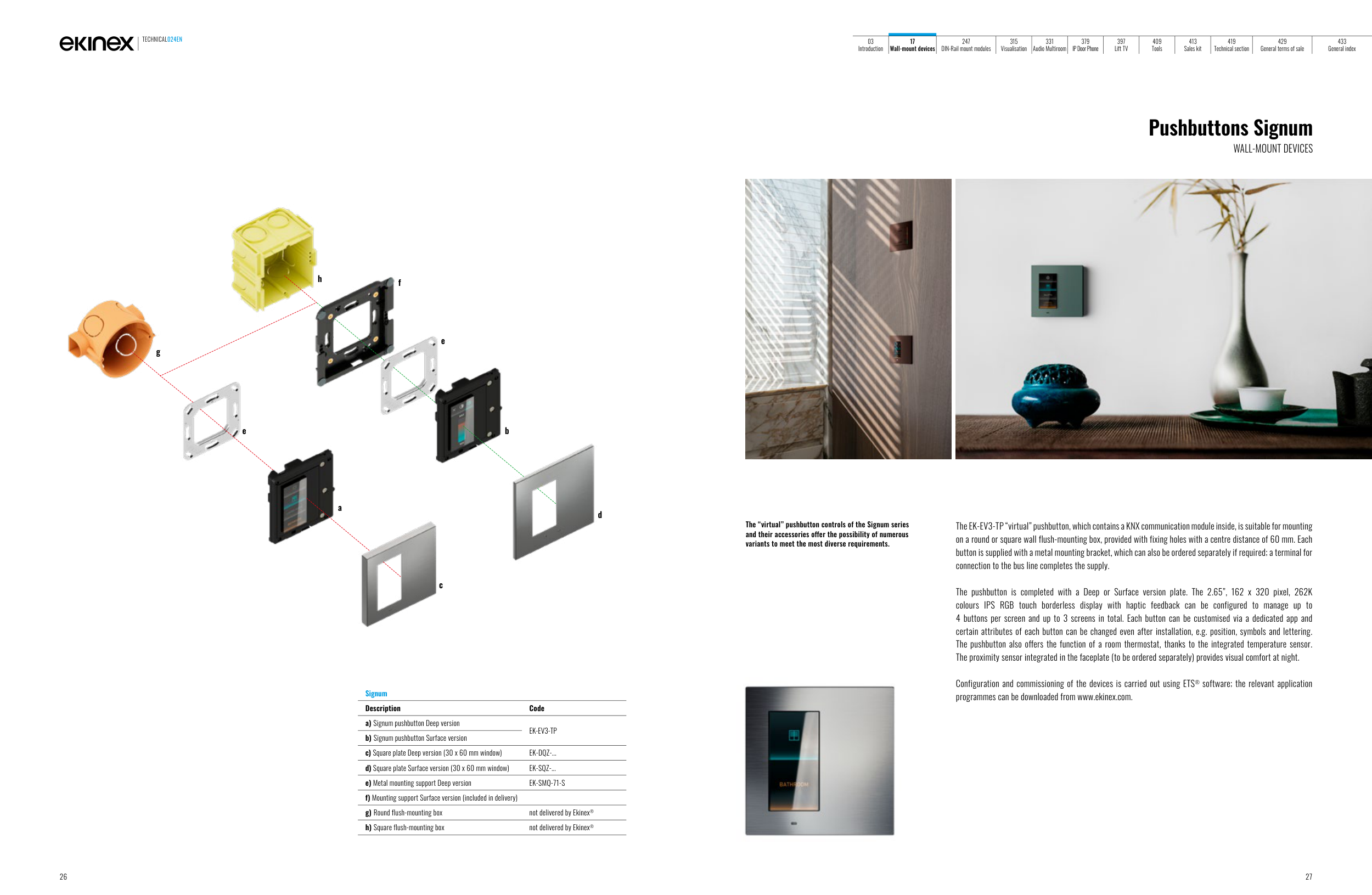

The “virtual” pushbutton controls of the Signum series
and their accessories offer the possibility of numerous
variants to meet the most diverse requirements.
Signum
Description
Code
a) Signum pushbutton Deep version
EK-EV3-TP
b) Signum pushbutton Surface version
c) Square plate Deep version (30 x 60 mm window)
EK-DQZ-...
d) Square plate Surface version (30 x 60 mm window)
EK-SQZ-...
e) Metal mounting support Deep version
EK-SMQ-71-S
f) Mounting support Surface version (included in delivery)
g) Round flush-mounting box
not delivered by Ekinex®
h) Square flush-mounting box
not delivered by Ekinex®
a
b
c
d
e
g
h
f
e
