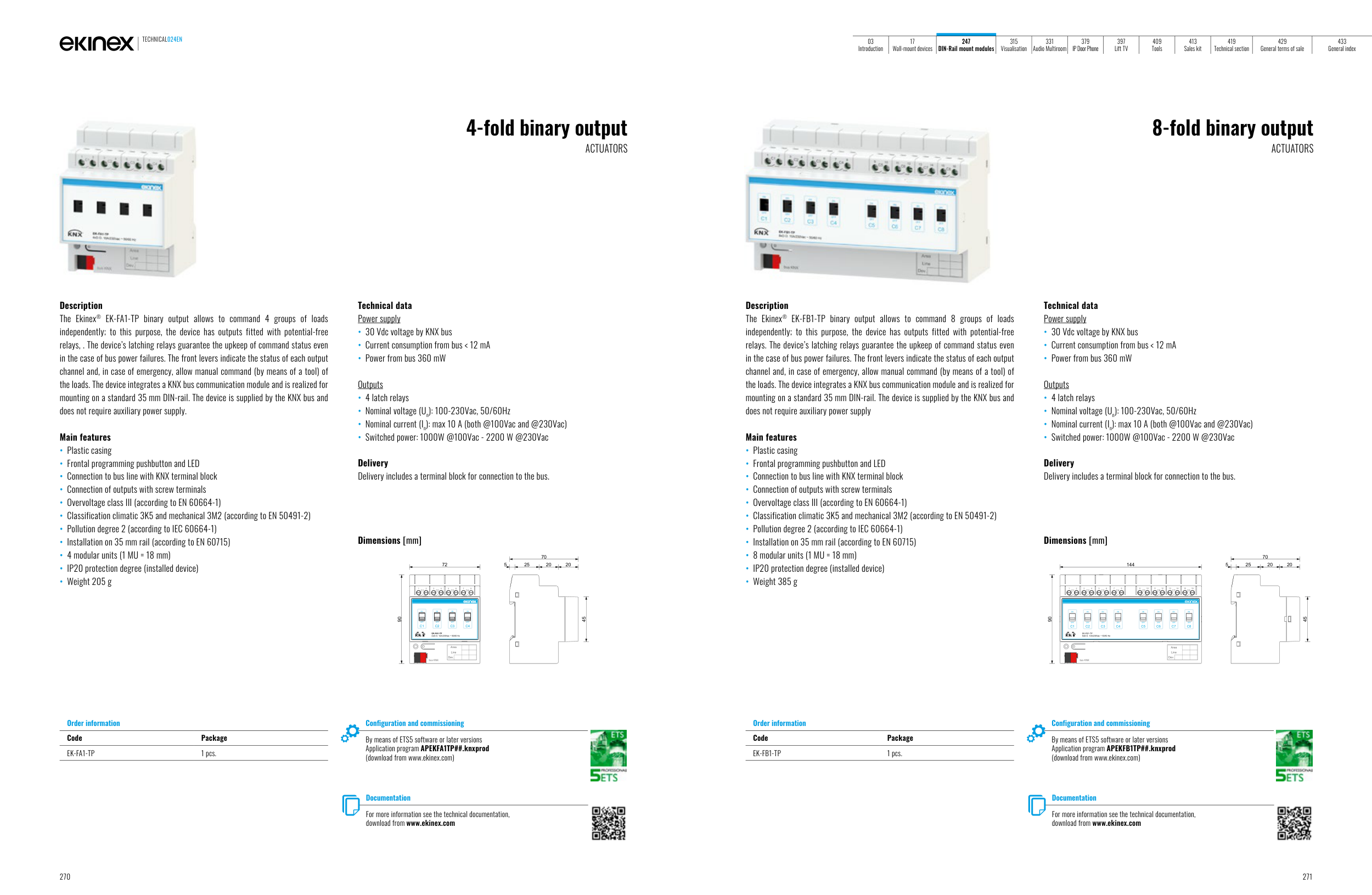

4-fold binary output
ACTUATORS
Description
The Ekinex® EK-FA1-TP binary output allows to command 4 groups of loads
independently; to this purpose, the device has outputs fitted with potential-free
relays, . The device’s latching relays guarantee the upkeep of command status even
in the case of bus power failures. The front levers indicate the status of each output
channel and, in case of emergency, allow manual command (by means of a tool) of
the loads. The device integrates a KNX bus communication module and is realized for
mounting on a standard 35 mm DIN-rail. The device is supplied by the KNX bus and
does not require auxiliary power supply.
Main features
• Plastic casing
• Frontal programming pushbutton and LED
• Connection to bus line with KNX terminal block
• Connection of outputs with screw terminals
• Overvoltage class III (according to EN 60664-1)
• Classification climatic 3K5 and mechanical 3M2 (according to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Installation on 35 mm rail (according to EN 60715)
• 4 modular units (1 MU = 18 mm)
• IP20 protection degree (installed device)
• Weight 205 g
Technical data
Power supply
• 30 Vdc voltage by KNX bus
• Current consumption from bus < 12 mA
• Power from bus 360 mW
Outputs
• 4 latch relays
• Nominal voltage (Un): 100-230Vac, 50/60Hz
• Nominal current (In): max 10 A (both @100Vac and @230Vac)
• Switched power: 1000W @100Vac - 2200 W @230Vac
Delivery
Delivery includes a terminal block for connection to the bus.
Order information
Code
Package
EK-FA1-TP
1 pcs.
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKFA1TP##.knxprod
(download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
72
90
45
70
5
25
20
20
EK-FA1-TP
4xD.O. 10A/230Vac ~ 50/60 Hz
1
2
3
4
5
6
7
8
0N
0FF
C1
0N
0FF
C2
0N
0FF
C3
0N
0FF
C4
C1
C2
C3
C4
bus KNX
Dev.
Line
Area
8-fold binary output
ACTUATORS
Description
The Ekinex® EK-FB1-TP binary output allows to command 8 groups of loads
independently; to this purpose, the device has outputs fitted with potential-free
relays. The device’s latching relays guarantee the upkeep of command status even
in the case of bus power failures. The front levers indicate the status of each output
channel and, in case of emergency, allow manual command (by means of a tool) of
the loads. The device integrates a KNX bus communication module and is realized for
mounting on a standard 35 mm DIN-rail. The device is supplied by the KNX bus and
does not require auxiliary power supply
Main features
• Plastic casing
• Frontal programming pushbutton and LED
• Connection to bus line with KNX terminal block
• Connection of outputs with screw terminals
• Overvoltage class III (according to EN 60664-1)
• Classification climatic 3K5 and mechanical 3M2 (according to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Installation on 35 mm rail (according to EN 60715)
• 8 modular units (1 MU = 18 mm)
• IP20 protection degree (installed device)
• Weight 385 g
Technical data
Power supply
• 30 Vdc voltage by KNX bus
• Current consumption from bus < 12 mA
• Power from bus 360 mW
Outputs
• 4 latch relays
• Nominal voltage (Un): 100-230Vac, 50/60Hz
• Nominal current (In): max 10 A (both @100Vac and @230Vac)
• Switched power: 1000W @100Vac - 2200 W @230Vac
Delivery
Delivery includes a terminal block for connection to the bus.
Dimensions [mm]
144
90
5
25
20
20
70
45
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
EK-FB1-TP
8xD.O. 10A/230Vac ~ 50/60 Hz
0N
0FF
C1
C1
0N
0FF
C2
0N
0FF
C3
0N
0FF
C4
0N
0FF
C5
0N
0FF
C6
0N
0FF
C7
0N
0FF
C8
C2
C3
C4
C5
C6
C7
C8
bus KNX
Dev.
Line
Area
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKFB1TP##.knxprod
(download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Package
EK-FB1-TP
1 pcs.
