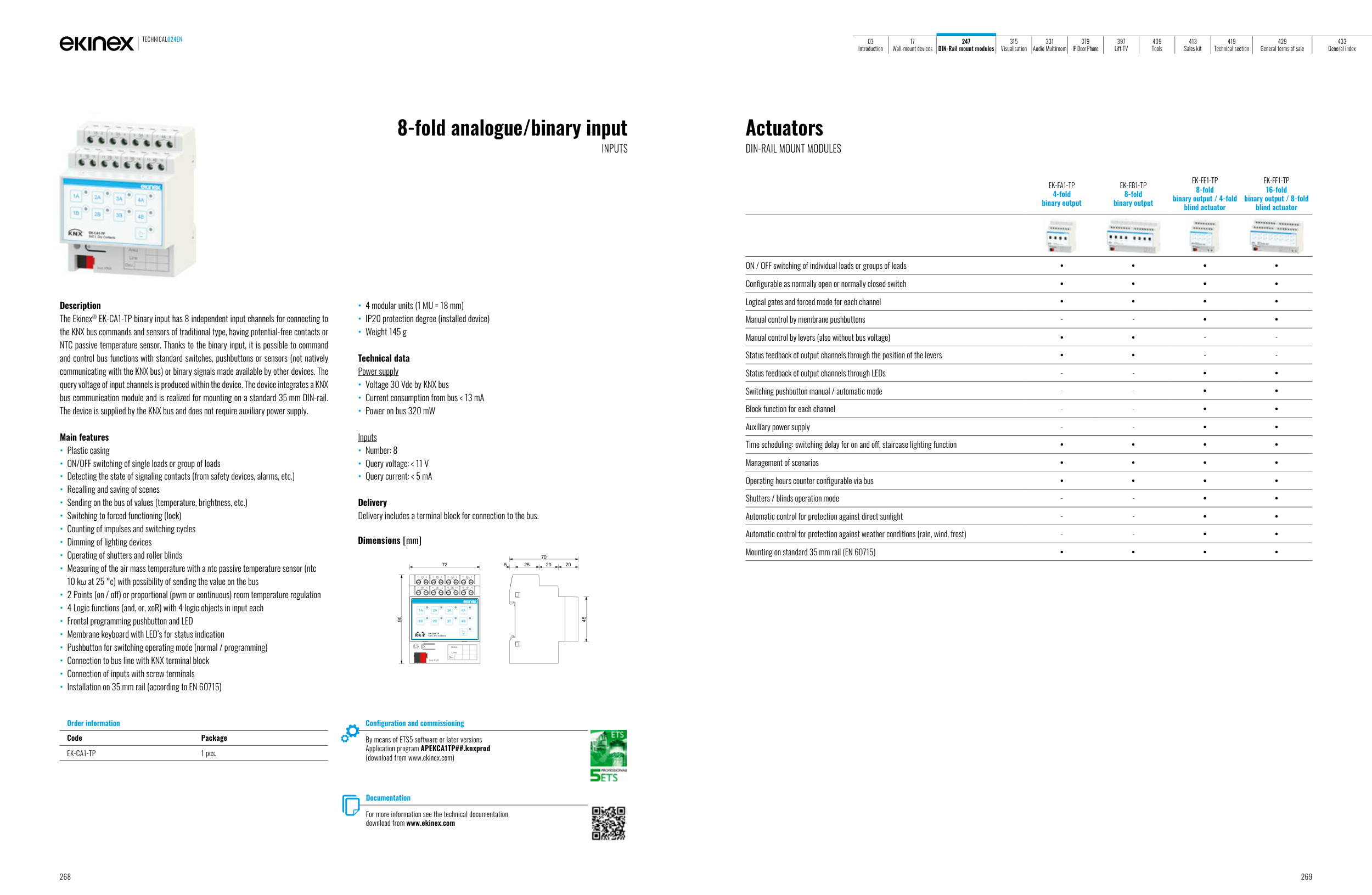

8-fold analogue/binary input
INPUTS
Description
The Ekinex® EK-CA1-TP binary input has 8 independent input channels for connecting to
the KNX bus commands and sensors of traditional type, having potential-free contacts or
NTC passive temperature sensor. Thanks to the binary input, it is possible to command
and control bus functions with standard switches, pushbuttons or sensors (not natively
communicating with the KNX bus) or binary signals made available by other devices. The
query voltage of input channels is produced within the device. The device integrates a KNX
bus communication module and is realized for mounting on a standard 35 mm DIN-rail.
The device is supplied by the KNX bus and does not require auxiliary power supply.
Main features
• Plastic casing
• ON/OFF switching of single loads or group of loads
• Detecting the state of signaling contacts (from safety devices, alarms, etc.)
• Recalling and saving of scenes
• Sending on the bus of values (temperature, brightness, etc.)
• Switching to forced functioning (lock)
• Counting of impulses and switching cycles
• Dimming of lighting devices
• Operating of shutters and roller blinds
• Measuring of the air mass temperature with a ntc passive temperature sensor (ntc
10 kω at 25 °c) with possibility of sending the value on the bus
• 2 Points (on / off) or proportional (pwm or continuous) room temperature regulation
• 4 Logic functions (and, or, xoR) with 4 logic objects in input each
• Frontal programming pushbutton and LED
• Membrane keyboard with LED’s for status indication
• Pushbutton for switching operating mode (normal / programming)
• Connection to bus line with KNX terminal block
• Connection of inputs with screw terminals
• Installation on 35 mm rail (according to EN 60715)
• 4 modular units (1 MU = 18 mm)
• IP20 protection degree (installed device)
• Weight 145 g
Technical data
Power supply
• Voltage 30 Vdc by KNX bus
• Current consumption from bus < 13 mA
• Power on bus 320 mW
Inputs
• Number: 8
• Query voltage: < 11 V
• Query current: < 5 mA
Delivery
Delivery includes a terminal block for connection to the bus.
Order information
Code
Package
EK-CA1-TP
1 pcs.
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKCA1TP##.knxprod
(download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
72
5
25
20
20
70
90
45
1
2
1A
3
4
2A
5
6
3A
7
8
4A
9
10
1B
11
12
2B
13
14
3B
15
16
4B
1B
2B
3B
4B
1A
2A
3A
4A
EK-CA1-TP
8xD.I. Dry Contacts
bus KNX
Dev.
Line
Area
EK-FA1-TP
4-fold
binary output
EK-FB1-TP
8-fold
binary output
EK-FE1-TP
8-fold
binary output / 4-fold
blind actuator
EK-FF1-TP
16-fold
binary output / 8-fold
blind actuator
ON / OFF switching of individual loads or groups of loads
•
•
•
•
Configurable as normally open or normally closed switch
•
•
•
•
Logical gates and forced mode for each channel
•
•
•
•
Manual control by membrane pushbuttons
-
-
•
•
Manual control by levers (also without bus voltage)
•
•
-
-
Status feedback of output channels through the position of the levers
•
•
-
-
Status feedback of output channels through LEDs
-
-
•
•
Switching pushbutton manual / automatic mode
-
-
•
•
Block function for each channel
-
-
•
•
Auxiliary power supply
-
-
•
•
Time scheduling: switching delay for on and off, staircase lighting function
•
•
•
•
Management of scenarios
•
•
•
•
Operating hours counter configurable via bus
•
•
•
•
Shutters / blinds operation mode
-
-
•
•
Automatic control for protection against direct sunlight
-
-
•
•
Automatic control for protection against weather conditions (rain, wind, frost)
-
-
•
•
Mounting on standard 35 mm rail (EN 60715)
•
•
•
•
